Surface topography of electronics, semiconductors & solar technology

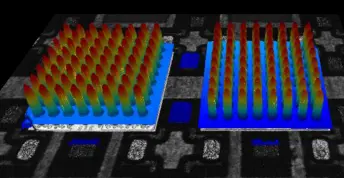

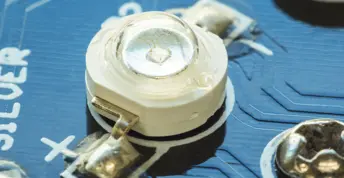

You can ideally adapt Polytec’s versatile solutions in the semiconductor industry for your applications in the electronics and solar technology industries. In the field of software, for example, you can do so by utilizing application-specific user interfaces for the OK / NOK analysis. Polytec offers you solutions to check electronic contacts – both for analyzing the height of BGAs or “solder bumps” and for analyzing the co-planarity of IC pins. You’ll also find the right systems for packaging high-power laser diodes at Polytec.
Optical profilers and vibrometers for eletronics and semiconductor industry
Macro Profiler

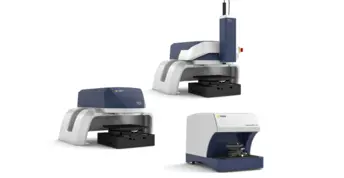

Pro.Surf systems enable fast, area-based 3D topography measurements with telecentric optics. They support reliable inspection of flatness, shape, parallelism and step heights across wide fields of view and in-bore features.
Micro Profiler

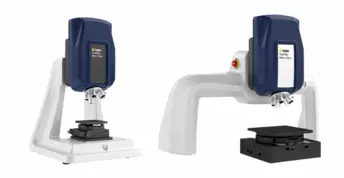

Micro.View systems are optimized for ultra-high-resolution measurements in the sub-nanometer range. With focused optics and high vertical resolution they enable detailed analysis of microstructures, surface finish and material distribution where even the smallest deviations matter.
Microscope-based vibrometers
Inspired by the rapid further development of microelectromechanical systems and MEMS, Polytec presents this highly innovative product line of microscope-based measurement systems. MSA Micr System Analyzers from Polytec validate dynamics and topography of microsystems reliably with utmost precision.
Choose the right surface profiler with confidence—benefit from our "try before buy" approach.
Discuss your demands with our experts
Let’s start with a short discussion about your parts, tolerances, and workflow — and, if useful, we can add a feasibility study, PolyMeasure (contract measurements), or a PolyRent trial as optional next steps.
