Characterizing flexible electronics in 3D

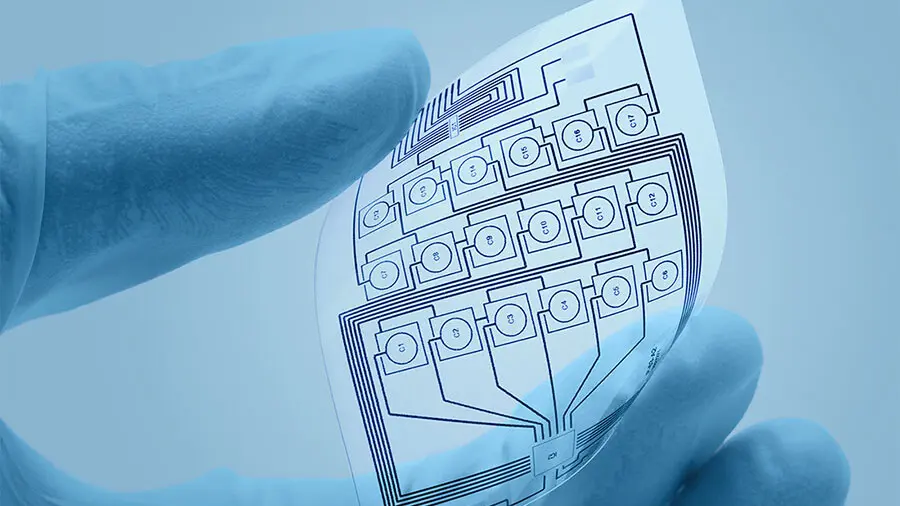

Flexible electronics open up a realm of new applications in the fields of wearables, thin film solar cells, RFIDs and displays used in automotive dashboards or medical applications. For all these use cases, the product reliability is a key quality indicator. Also there is an increasing demand in components to be harmonized for signal processing, communication and energy generation.
For such applications, white-light interferometry allows scanning the entire surface of hybrid flexible electronics in a single shot. The optical and non-destructive measurement method characterizes printed electronics on behalf of form parameters, roughness and structural details and help secure the electronics quality and functionality.
Form parameters & surface roughness of printed electronics
Scanning surfaces and evaluating 3D height information enables a fast and reliable characterization of printed and flexible electronics. 3D surface metrology solutions from Polytec provide meaningful data for both electronics quality and printed electronics process stability. The advanced color information mode helps determining and localizing defects.
For in-line integration and for semi- or fully automated manufacturing processes of flexible electronics, TopMap sensor heads can easily be integrated into production lines, offering customized solutions for in-line inspection. Upon demand, users can manage and load predefined measurement settings, enabling one-click inspections at production level using measurement recipes. Our PolyXperts are happy to assist at all project stages, such as developing custom routines and evaluations, using the open software architecture.
Characterziation of micro electronics
Fitting surface profiler
Micro Profiler
Micro.View systems are optimized for ultra-high-resolution measurements in the sub-nanometer range. With focused optics and high vertical resolution they enable detailed analysis of microstructures, surface finish and material distribution where even the smallest deviations matter.
Macro Profiler
Pro.Surf systems enable fast, area-based 3D topography measurements with telecentric optics. They support reliable inspection of flatness, shape, parallelism and step heights across wide fields of view and in-bore features.
Metro.Lab
Metro.Lab is a compact, wide-area surface profiler. It combines high measurement performance with a small footprint—ideal for space or budget conscious applications that still require reliable 3D surface data.
Choose the right surface profiler with confidence—benefit from our "try before buy" approach.
