VibroScan QTec measures vibrations in a new way – non-contact and with unprecedented precision. With its groundbreaking multi-path interferometry and diversity combining, QTec® sets new standards in terms of optical sensitivity and interference immunity.
For the first time, QTec® technology has been successfully transferred from the infrared SWIR laser to the visible helium-neon laser. With its small laser measuring spot, the precise helium-neon laser is suitable for measurements on the finest structures and even measures in and through water. These properties are a decisive advantage when determining operating vibration modes and eigenmodes in microsystems, electronics and medical devices, for example when analyzing sensor systems, hydrophones or ultrasonic components, over the entire frequency range up to 32 MHz.

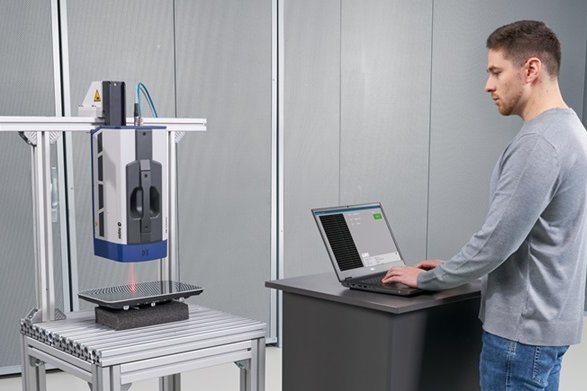

The VibroScan QTec scanning vibrometer guarantees maximum portability. The VibroLink Ethernet data interface reliably transmits vibration measurement data to your notebook and serves as an automation interface.
Highlights
- Non-contact and full-field with FEM-like spatial resolution
- Best SNR on technical surfaces
- Up to 10x faster with QTec®
- Visible laser - measures through water
- Visible laser - precision on the smallest structures with a µm-sized spot
- Upgradeable to 32 MHz
- AI-supported grid generation
- Extended evaluation and scripting options
- Open API and drivers
Experience the new VibroScan QTec in a video presentation
With the new VibroScan QTec, we are taking reliability, flexibility and speed in non-contact vibration measurement to a whole new level. In this webinar recording, our expert Jörg Sauer takes you into the world of groundbreaking QTec technology and the new VibroScan QTec for your modal analysis, acoustic and NVH measurements, operational vibration analysis and product development.
Faster results with QTec® multi-path interferometry
The patented QTec® multi-path interferometer technology now also significantly boosts the signal quality for the visible helium-neon laser and guarantees maximum optical sensitivity. QTec® enables highly accurate results with the shortest measurement times regardless of the surface - even on dark, biological, rotating or moving objects. This safe laser technology is perfect for challenging applications, especially for smaller measurement objects. QTec® makes vibration measurements faster, easier and more reliable than ever – for the most robust, unambiguous results.
A new class – for new ideas
QTec® multipath interferometry for fast and efficient vibration measurement
Accessories and components
Optical Accessories
PSV-A-526 Front Window
Protects the scanning mechanism against dust, wind and acoustic excitation at high dB levels.
PSV-A-710-Xtra Close-up Unit
For measurements at a short working distance, especially on small parts. Includes a set of close-up lenses for the video camera. Additional PSV-A-CL-xxx micro scan lenses are available for small, reflective objects.
PSV-A-CL-xxx Micro Scan Lenses
Parallelized beam path for measuring small components and on reflective surfaces. Requires close-up unit.
PSV-A-HNeBF Helium-Neon Filter
Notch filter to improve laser spot visibility for measurements on very shiny surfaces and small components
PSV-A-RLight Ringlicht
LED ring light for illuminating small test objects. Requires PSV-A-710-Xtra coaxial unit and PSV-A-CLXtra-200 micro-scan lenses (Fig. similar)
A-MIR-S001/ A-MIR-S002 Mirror set
Mirror set for measurements in difficult-to-access areas.
Tripods, Test Stands, Positioning Stages
PSV-A-T19 Vertical Test Stand
Test stand for precise vertical positioning of the VibroScan QTec Scanning Vibrometer for measurement on small objects
PSV-A-T37 Vertikal Holder
For convenient overhead vertical mounting of the scanning vibrometer, e.g. for shaker tests.
PSV-A-018 System Cabinet
Ergonomic mobile workstation with storage for all parts and accessories.
A-RMK-0004 Rack Mounting Kit
Rack installation kit with two front handles and mounting brackets for installing the PSV-F-700 VibroScan Front-end in a 19" rack.
Miscellaneous
Scalable Automatic Modal Hammer SAM
Excitation of sample for experimental modal tests with repeatable force level. Broadly configurable and avoids double hits reliably.
A-AMP-0001 Amplifier for signal generator
Amplifies the max. 2 V output signal to max. 10 V with a bandwidth of up to 32 MHz.
PSV-E-Ext External Scanner Control
Allows for an additional control of the scanning mirrors by external voltage signals. Enables Continuous Scanning Vibrometry and tracking applications.
Related products
VibroScan QTec Xtra
VibroScan QTec Xtra measures vibrations in a new way - without contact, full-field and with unprecedented precision. With its groundbreaking multi-path interferometry, QTec® sets new standards in terms of optical sensitivity and interference immunity. The Xtra, based on an infrared (SWIR) laser is characterized by the highest optical sensitivity to guarantee highly accurate measurements even on demanding technical surfaces. VibroScan QTec Xtra ensures maximum portability through integrated data acquisition and signal generator up to 32 MHz.
VibroScan QTec Xtra 3D
VibroScan QTec Xtra 3D measures vibrations triaxially in a new way - without contact, full-field and with unprecedented precision. With its groundbreaking multi-path interferometry, QTec® sets new standards in terms of optical sensitivity and interference immunity. The Xtra, based on an infrared (SWIR) laser is characterized by the highest optical sensitivity to guarantee highly accurate measurements even on demanding technical surfaces. VibroScan QTec Xtra 3D ensures maximum portability through integrated data acquisition and signal generator up to 32 MHz.
PSV Software
The PSV Software is the heart of every Polytec full-field vibration measurement system. This comprehensive software package allows the fast and simple acquisition, display and editing of vibration measurement data gathered with all PSV Scanning Vibrometers, the MSA Micro System Analyzer series for microscopic observations or the automated structural test station RoboVib®.
RoboVib
By combining a 3D scanning vibrometer and an industrial robot, RoboVib® forms an automated test station for measuring everything from complex components to complete vehicle bodies. Reduce testing time and expenses as well as time to market significantly in experimental modal analysis. Conduct comprehensive 360° testing of a vehicle body, for example, within only one-two days and overnight instead of weeks of preparation with conventional test setups.
RotoVib
RotoVib enables automated and full-body experimental modal analysis using Polytec’s optical 3D scanning laser vibrometers. Its easy to set-up hardware and software integrates seamlessly into the Polytec scanning vibration measurement workflow and saves time by automatically repositioning the devices-under-test (DUT) instead of a manual and tedious relocation of the sensor setup. 360° measurements of the DUT are as easy as a measurement from just one side.
PolyWave
PolyWave - the scalable software package for comprehensive analysis of vibration test data offers a seamless post-processing, making your vibration analysis with Polytec laser Doppler vibrometers more efficient than ever.
Automation
Polytec offers intuitive and powerful interfaces and options for remote control and automation of measurement data acquisition and evaluation. Speed up your tests by automating recurring measurements and evaluations, integration into your own testing software via driver, remote adjustment of measurement settings, querying and monitoring the device status and more.
PSV-A-440 Optical Derotator
The PSV-A-440 Optical Derotator enables non-contact vibration measurements on rotating parts with PSV Scanning Vibrometers. Fully characterize dynamics of rotating objects such as fans for consumer products and vehicles or turbines under operational conditions up to 24,000 RPM.
