A new class – for new ideas

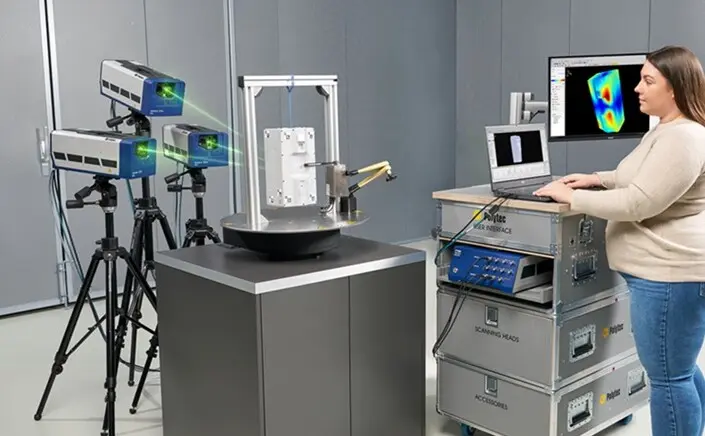

VibroScan QTec Xtra 3D measures three-dimensional vibrations in a new way - non-contact and with unprecedented precision. With its groundbreaking multi-path interferometry and diversity combining, QTec® sets new standards in terms of optical sensitivity and interference immunity.
With three synchronous measurements from three directions, all three dimensions of the vibration open up for analysis. The hub synchronizes the vibrometers with picosecond accuracy. MIMO-capable signal generators included. The PSV software takes over the guidance, detects the position of the individual VibroScans QTec in relation to the object, synchronizes the three laser beams and guides them over the measurement object in a μm-sized measuring spot. The results are automatically transformed into the FEM coordinate system and animated according to vibration direction.
VibroScan QTec Xtra 3D determines operational vibration modes and eigenmodes for NVH, acoustics, structural dynamics, ultrasound, FEM validation and non-destructive testing and offers frequency ranges up to 32 MHz. With its SWIR wavelength, the Xtra Laser brings more power to the measurement. The combination with QTec® makes the Xtra laser insensitive to the angle of impact and surface, making it ideal for 3D measurements. The VibroLink Ethernet data interface reliably transmits vibration measurement data to your notebook and serves as an automation interface.
Get in touch with our experts
Get in touch with our experts
Let’s talk! We will find the right solution for your needs.
Highlights
//- Non-contact and full-field with FEM-like spatial resolution
- Best SNR on technical surfaces
- Up to 10x faster with QTec®
- Upgradeable to up to 30 m/s vibration velocity and 32 MHz
- Advanced geometry handling for meaningful result presentation
- AI powered grid generation
- Extended evaluation and scripting options
- Open API and drivers
Faster results with QTec® multi-path interferometry
The patented QTec® multi-path interferometer technology boosts the signal quality of infrared laser vibrometer (SWIR) decisively. It provides highest optical sensitivity for high-fidelity measurements on all surfaces, which significantly reduces testing time – even on dark, biological, rotating or moving objects. This safe laser technology is perfect for challenging applications also on distant targets. QTec® makes vibration measurements faster, easier and more reliable than ever – for the most robust, unambiguous results.
Experience the new VibroScan QTec in a video presentation
With the new VibroScan QTec, we are taking reliability, flexibility and speed in non-contact vibration measurement to a whole new level. In this webinar recording, our expert Jörg Sauer takes you into the world of groundbreaking QTec technology and the new VibroScan QTec for your modal analysis, acoustic and NVH measurements, operational vibration analysis and product development.
Videos
VibroScan QTec – a new class for new ideas
Get to know a new technology for full-field optical vibration measurement. VibroScan QTec is the most compact scanning laser vibrometer featuring the unrivaled data quality based on patented multi-path interferometry. The video shows how you can transfer measurement quality and productivity to your applications and easily expand VibroScan QTec to 3D vibration measurement capability.
QTec® multipath interferometry for fast and efficient vibration measurement
The patented QTec® laser technology reinvents laser vibration measurements by eliminating the root cause of noise, delivering superior optical sensitivity and enabling high-fidelity measurements on all technical surfaces – whether rotating, moving or dark. In order to achieve this, QTec vibrometers from Polytec use an innovative multi-path interferometry with diversity reception, that balances the information from the highest signal level of each path with patented algorithms, resulting in an always stable signal. This patented laser technology leads to faster, easier measurements and consistent results for all research, development and production testing efforts.
Automatic 3D alignment
New machine-vision techniques make the non-contact VibroScan QTec Xtra 3D Scanning Vibrometers as easy to use as any handy single-point laser vibration sensor while minimizing training needs. For high fidelity data especially from high frequency tests on medical tools as well as for measuring stress and strain, automatically aligning the 3 superimposed lasers is the key.
Here, the machine-vision based feature “3D alignment scan” guarantees µm-precision in X, Y and Z enabling faster test setups and highly reliable measurement results.
Customize your triax scanning vibrometer
With the right accessories, you can measure even the smallest components, localize and trigger noise, master even complex geometry and measurement setups and measure in tough test bench conditions or wind tunnels. Machine vision tools simplify the test setup and professional CAE interfaces support FE model validation, both modal and stain-based, allowing direct import of geometry files. The advanced geometry handling enables meaningful result presentation, granting precise insights into your vibrating structure, its dynamical behaviour and acoustics.
The automation interfaces make complex evaluations with MatLab™ or your own programs just as possible as the complete automation of a modal test. Polytec offers ready-made solutions for small to large measurement objects.
VibroScan QTec – patented data quality
Do you want to generate areal vibration data quickly and reliably? Scanning laser Doppler vibrometers with QTec® multi-path interferometers are your solution. Simple, fast, reliable.
- Enhanced signal quality for even higher reliability
- Up to 10x faster measurement
- Increased flexibility with a user-friendly setup
- First HeNe with QTec®
- Improved technical specifications
Downloads
Accessories and components
PSV-G-700 High Precison Geometry Scanner
Integrated high-performance laser distance sensor for measuring the sample geometry from the scanning vibrometer perspective.
PSV-A-526 Protective Window
Protects the scanning mechanism against dust, wind and acoustic excitation at high dB levels.
A-MIR-S001/ A-MIR-S002 Mirror set
Mirror set for measurements in difficult-to-access areas.
PSV-A-T51 Motorized Tripod
Convenient motorized support for three scanning heads. Saves time when rearranging the setup and allows for elevated measurement positions.

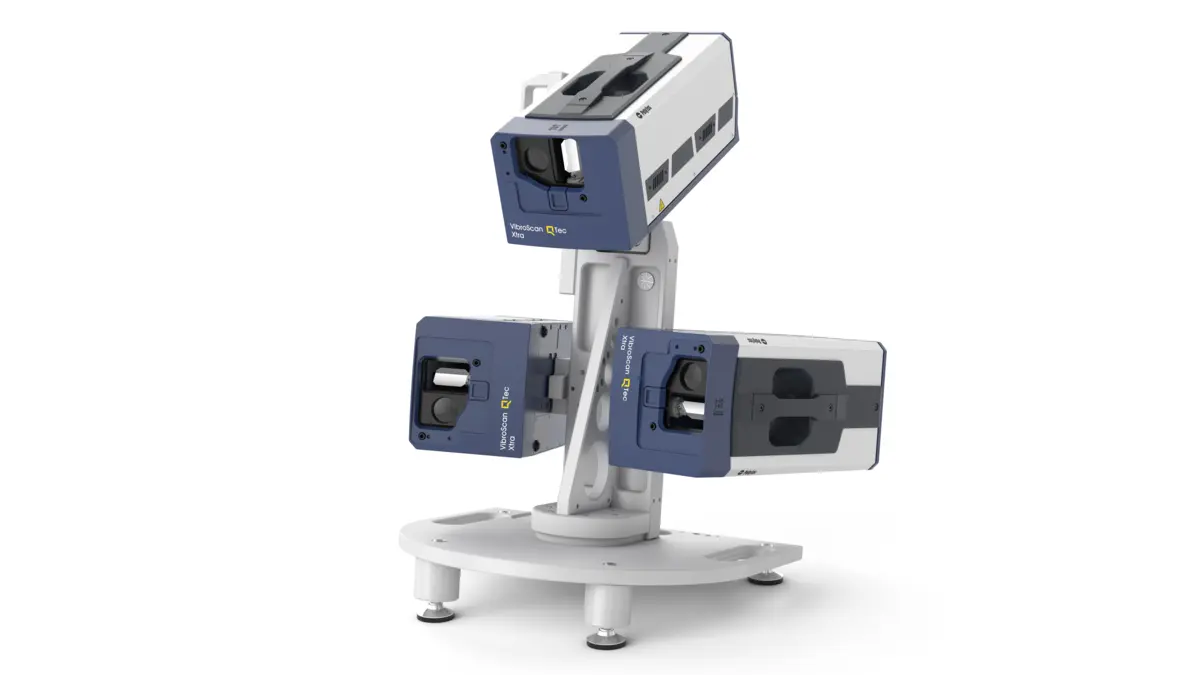

PSV-A-T34 Table Tripod
Rigid support of 3 scanning heads. Provides a configuration optimized for in-plane performance with small parts.
PSV-A-T35 Table Tripod
Rigid support of 3 scanning heads. Provides a narrow configuration optimized for out-of-plane performance with small parts.
PSV-A-655-S Alignment Object (Set)
Precision patterned and lightweight CFRP plate including
adjustable stand for automatic 3D alignment.
PSV-A-018 System Cabinet
Ergonomic mobile workstation with storage for all parts and accessories.
A-RMK-0004 Rack Mounting Kit
Rack installation kit with two front handles and mounting brackets for installing the PSV-F-700 VibroScan Front-end in a 19" rack.
Scalable Automatic Modal Hammer SAM
Excitation of sample for experimental modal tests with repeatable force level. Broadly configurable and avoids double hits reliably.
Qsources Qlws LightWeightShaker
The Qsources Qlws LightWeightShaker is a self-supporting, self-aligning dynamic decoupled electromagnetic shaker specifically developed for modal testing and consistent repeatable structural excitation in a limited space.
A-AMP-0001 Amplifier for signal generator
Amplifies the max. 2 V output signal of the to max. 10 V with a bandwidth of up to 32 MHz.
PSV-A-EXT External Scanner Control
Allows for an additional control of the scanning mirrors by external voltage signals. Enables Continuous Scanning Vibrometry and tracking applications.
PSV-A-430 Acoustic Gate Unit
Activates the gate input if a noise exceeds a certain threshold. Suitable for event trigger applications such as brake squeal measurements.
