Processing full-field vibration measurement data
The PSV Software is the heart of every Polytec full-field vibration measurement system. This comprehensive software package allows the fast and simple acquisition, display and editing of vibration measurement data gathered with all VibroScan QTec Scanning Vibrometer, the MSA Micro System Analyzer series for microscopic observations or the automated structural test station RoboVib®.
The intuitive operation of the PSV Software enable even beginners to perform successful measurements in just a few minutes. The comprehensive scanning vibrometer software package is specially designed for full-field and dynamic characterization of microscopic and macroscopic samples and the display of structure-borne vibrations.
Get in touch with our experts
Get in touch with our experts
Let’s talk! We will find the right solution for your needs.
Highlights
//- Supports fast results with intuitive step-by-step procedure
- High productivity with result analysis while measuring
- Integrates in CAE with versatile interfaces and large FE geometry handling
- Open interface for control and data analysis from any software with Polytec File Access
- Seamless integration with PolyWave Modal analysis post-processing suite
- Integrates 3rd party data easily
- Supports texture files for scanned geometries for stunning result presentation
- MIMO measurements with multiple shakers and up to 8 additional force or impedance transducers
Seamless workflow and custom post-processing

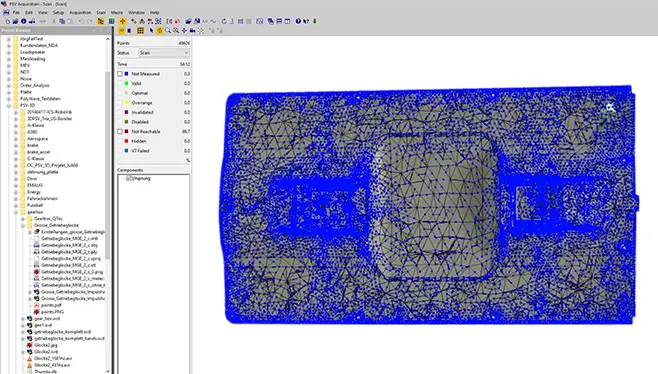

- Use live video images, intuitive drawings and meshing tools for setting up your measurement grid.

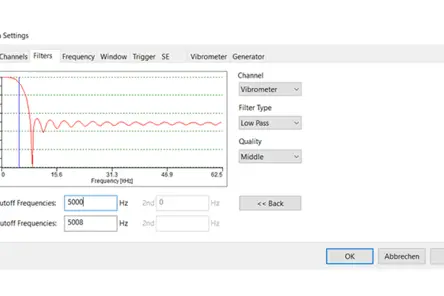

- Define data acquisition settings and excitation in time and frequency domain in detail and finetune.

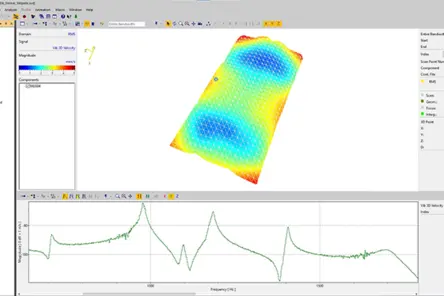

- Benefit from clear graphic representations of measurement results as animated (3D) deflection shapes and use advanced post-processing options: Identify resonances via cursor, use Bode plots and more for your individual analysis.
- Sample macros in Visual Basic and choose from ready-made Polytec macros for automation and recurring measurements.

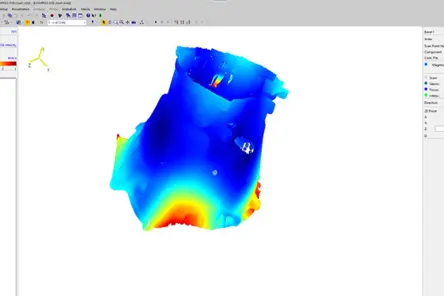

- Share your insights with colleagues and a broader audience, also with non-active PSV users with a free ScanViewer software tool.

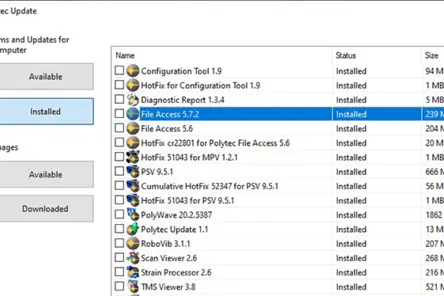

- Polytec Update will provide you with the latest version and updates.
- Universities can even apply for an exclusive life-long maintenance to secure their own scientific leadership.
Keep it simple – Optical deflection shape measurement with the VibroScan QTec
Discover how easy precise vibration mode measurements can be with the VibroScan QTec scanning vibrometer! This video walks you step by step through automatic calibration, integrated 3D geometry capture, and the powerful QTec interferometer for fast, reliable results. Learn smart tools and tips to ensure top data quality and efficient measurements – including AI-assisted automation.
NEW
Latest upgrades of Release 10.3
- AI auto-polygons – 1-click measurement grid, reduced setup effort.
- Spectrograms & Campbell – 2D/3D rotational analysis, better diagnostics.
- Time & FFT in parallel – one measurement, maximum analysis flexibility.
- Faster 3D alignment – higher accuracy, smaller laser footprint.
- Usability boost – batch ODS export, quicker to the optimal view.
- SignalProcessor upgrade – Increase in frequency resolution, precise damping analysis, automation.
- Additional optimizations – e.g. improved triggering.
