Measuring dynamic response and topography of MEMS and microstructures
Surface topography and dynamic motion analysis and visualization are key to testing and developing microstructures such as MEMS devices (Micro-Electro-Mechanical Systems). They are indispensable for validating FE calculations, determining cross-talk effects and measuring surface deformation. The MSA-600 Micro System Analyzer is the all-in-one optical measurement workstation for characterizing surface topography as well as in-plane and out-of-plane motions.
The versions MSA-600-M/V cover frequency ranges up to 25 MHz, ideally suited for MEMS, MEMS microphones and other microsystems. The versions MSA-600-X/U cover the high and very high frequency range up to 2.5 GHz, perfect for the assessment of HF MEMS resonators, micro-acoustic devices like SAW, BAW and more.
PREMIERE:
The MSA-600-S is the specialized optical measurement workstation designed for 8 GHz real-time vibration analysis and surface topography analysis. Ideal for testing GHz MEMS like FBAR (film bulk acoustic resonators), BAW (bulk acoustic wave) filters and SAW (surface acoustic wave) devices.
Get in touch with our experts
Get in touch with our experts
Let’s talk! We will find the right solution for your needs.
Highlights
//- All-in-one optical measurement workstation for microstructures
- Real-time response measurement (no post-processing required)
- Versions MSA-600-M/V with up to 25 MHz
- Versions MSA-600-X/U with up to 2.5 GHz
- NEW MSA-600-S with up to 8 GHz
- Unparalleled sub-pm displacement resolution

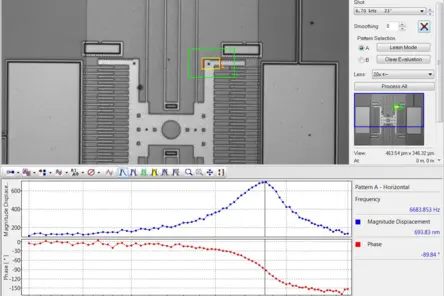

- Fast measurement and visualization of deflection shapes
- Straightforward and intuitive operation
- Automated system for easy integration into probe stations
- Import / export options for FE model validation

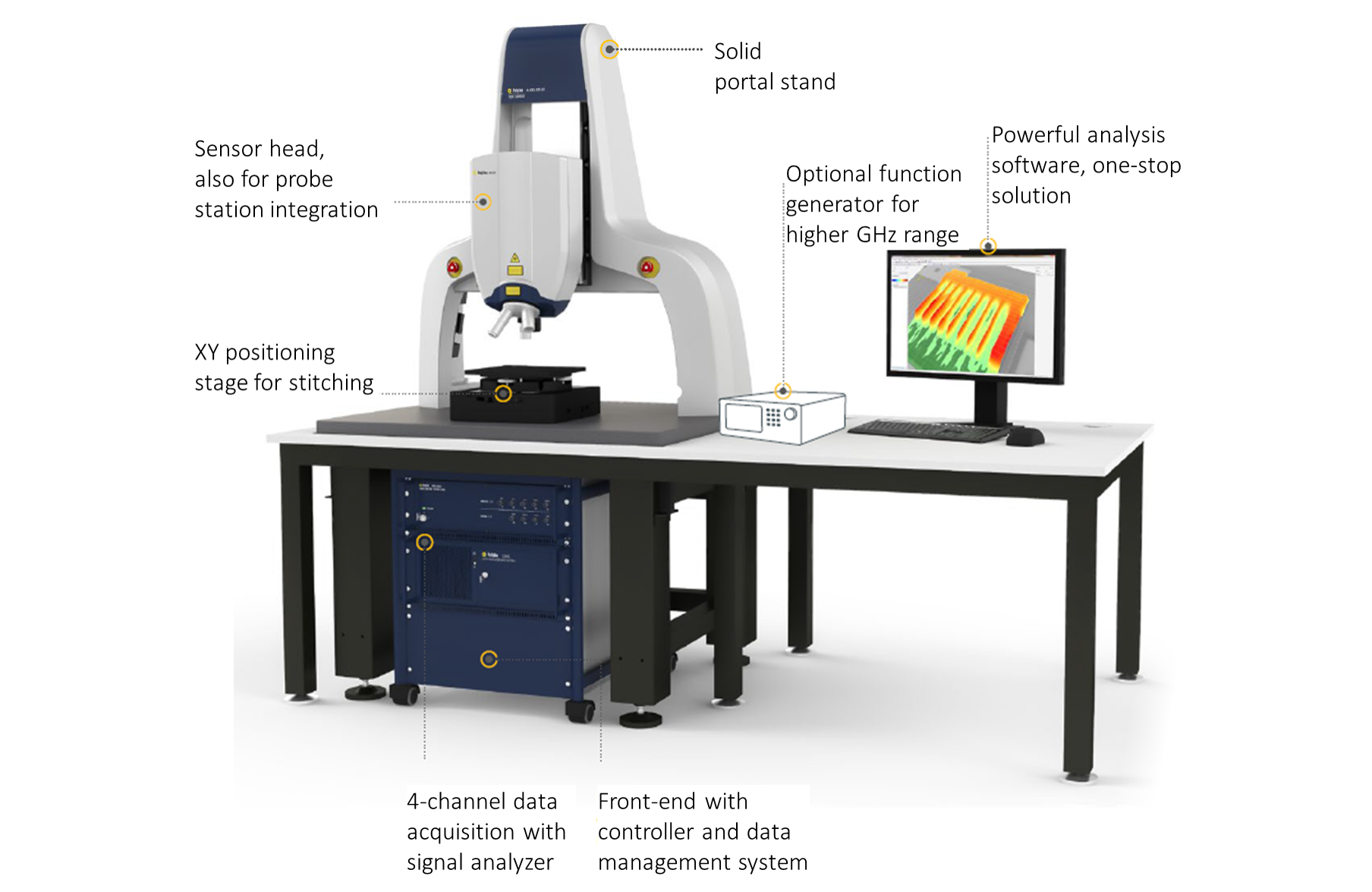

All-in-one optical measurement solution for MEMS
The MSA-600 Micro System Analyzer delivers increased measurement flexibility and precision, adapting to the needs of today’s and tomorrow’s microstructures. The Micro System Analyzer provides precise 3D dynamic and static response data that increases device performance while reducing development and manufacturing costs. Thus it enhances and shortens design cycles, simplifies trouble shooting and improves yield.

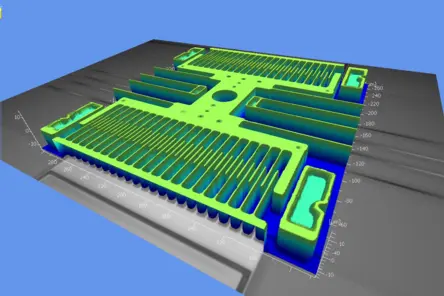

The high-performance laser Doppler vibrometer delivers fast, real-time response measurement with sub-pm displacement resolution. And the white-light interferometer option provides millions of 3D surface data in seconds. Complemented by its straightforward operation and intuitive user interface, the MSA-600 is the powerful optical measurement solution in research, development (R&D) and quality control (QC). Compatible with common probe stations, the micro system analyzer helps you in all stages of development – from MEMS prototyping to testing and troubleshooting – and thus helps you to cut production costs and also shorten the time to market.

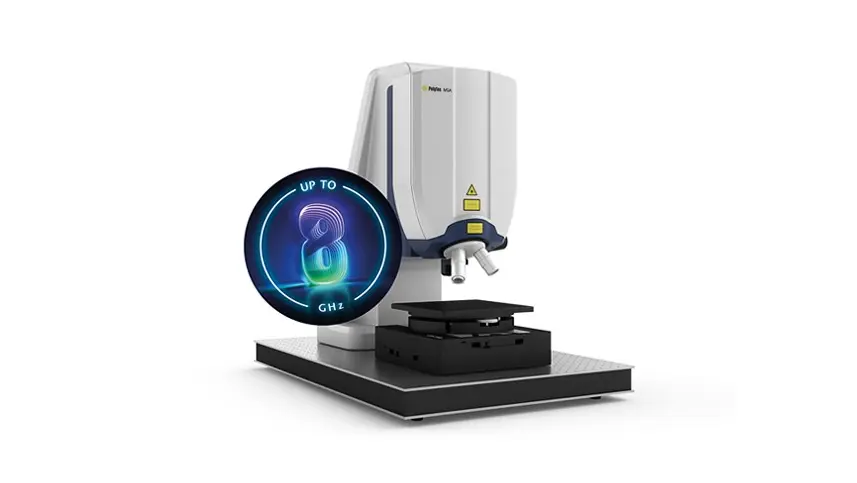

Specialized 8 GHz testing solution for GHz MEMS
The MSA-600-S is the premiere specialized optical measurement workstation allowing vibration analysis and surface characterization up to 8 GHz! Use the MSA-600-S for developing GHz devices, for quality control on behalf of form parameter evaluation, and device performance and reliability testing. This enables testing of high frequency devices such as FBAR (film bulk acoustic resonators), and other GHz resonators and devices.

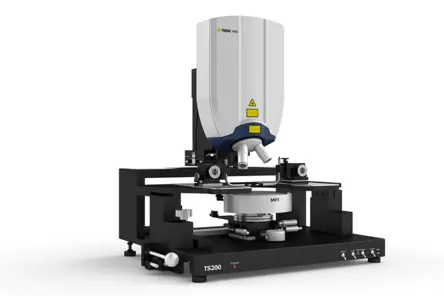

Wafer-level and single-die testing
Downloads
Accessories and components
A-MOB-xxxx Bright Field Objectives
For out-of-plane and in-plane vibration measurement. Available magnifications: 1x, 2x, 5x, 10x, 20x, 50x, 100x and 3.6x, 10x for large working distances.

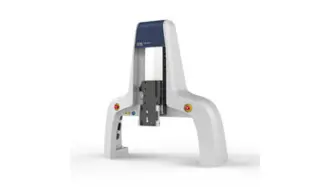

A-STD-TST-01 Test Stand
Test stand providing ample workspace. With motorized z-axis, travel range 200 mm.

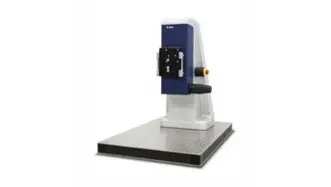

A-STD-BAS-02 Base Stand
Rigid support for the sensor head. Includes manual focus block with 100 mm travel range with coarse and fine drive. Interfaces to commercially available optical tables.

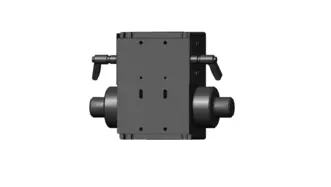

A-STD-F50 Focus Block
Travel range 50 mm. With coarse and fine drive for manual z-axis adjustment of the sensor head. Interfaces with commercially available wafer probe stations.

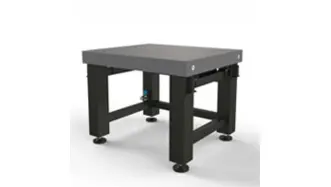

A-TAB-AIR-01 Active Vibration Isolation Table
Air-damped vibration isolation table with active level adjustment. Compatibility: A-STD-TST-01 Test Stand, A-STD-BAS-02 Base Stand.

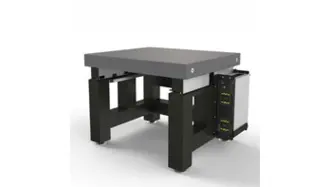

A-TAB-ELC-01 Active Vibration Isolation Table
Electronically controlled voice coil stabilization for highest isolation performance. Compatibility: A-STD-TST-01 Test Stand, A-STD-BAS-02 Base Stand.

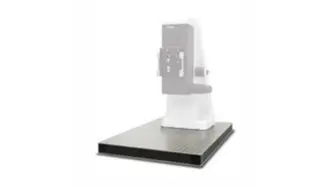

A-BBO-ME02 Breadboard
Breadboard with metric hole pattern. Footprint 900 mm x 600 mm. Compatibility: A-STD-BAS-02 Base Stand.

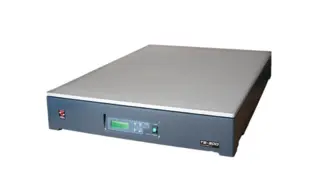

A-AVI-MELA Active Vibration Isolation Breadboard
Electronically controlled for highest vibration isolation performance. With metric hole pattern. Footprint 600 x 800 mm. Compatibility: A-STD-BAS-02 Base Stand.

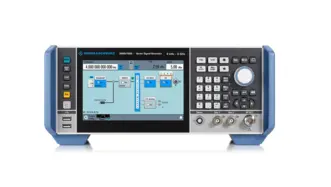

A-ESG-001 External Signal Generator
For high frequency, broadband sample excitation. Remotely controllable by PSV Software.

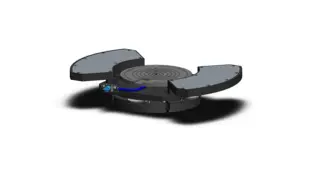

A-SPK-0008 Wafer Prober Module
Together with the A-PST-200P XY Positioning Stage, the wafer prober module forms a motorized platform for electrical contacting and high-precision measurement of wafers and substrates up to 200 mm in diameter.

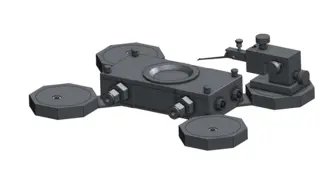

A-SPK-0010 Vacuum Prober Module
Vacuum and purge lines. Micro manipulator for handling of four electrical probes.
Related products
MSA-650 IRIS Micro System Analyzer
The innovative and patented MSA-650 IRIS Micro System Analyzer with IR capability allows for measuring true MEMS dynamics up to 25 MHz by characterizing both in-plane and out-of-plane motions through silicon encapsulation without contact, without need for preparing nor decapping the device.
MSA-100-3D Micro System Analyzer
The 3D Micro System Analyzer records vibration components in all three spatial directions at once. The optical measurement system enables high-resolution 3D vibration analysis from DC up to 25 MHz with amplitude resolutions in the sub-picometer range, for both in-plane and out-of-plane vibration components.
MSA-060 Micro System Analyzer
Use the MSA-060 for entering the world of microsystem analysis. Record and visualize vibrations and dynamics of small components and microsystems with laser precision over an entire surface from DC to 24 MHz. Micro System Analyzers use measurement lasers, revealing the true dynamics of small components in a completely non-contact and non-invasive way.
PSV Software
The PSV Software is the heart of every Polytec full-field vibration measurement system. This comprehensive software package allows the fast and simple acquisition, display and editing of vibration measurement data gathered with all VibroScan QTec Scanning Vibrometers, the MSA Micro System Analyzer series for microscopic observations or the automated structural test station RoboVib®.
