全场扫描振动测试数据处理

       PSV软件是Polytec全场扫描测振系统的核心。该综合软件包能轻松地对所有的PSV全场扫描式激光测振仪、MSA显微式激光测振仪或全自动测振站RoboVib®的振动测试数据进行采集、显示和处理。

       PSV软件操作直观，即使是初学者也能在几分钟内成功完成测试。综合的全场扫描测振软件包专为测试和表征微观和宏观样品的结构模态而设计。

亮点

  • 直观的逐步引导设置
  • 在测试的同时对结果进行高效处理
  • 易于集成至CAE环境中，可导入大型FE模型
  • 可通过Polytec File Access开放式接口与其它软件连接，进行控制和数据分析
  • 无缝集成PolyWave模特分析软件包
  • 轻松集成第三方软件
  • 支持形貌扫描，输出令人印象深刻的测试结果
  • 多输入输出，最高可达8个参考通道

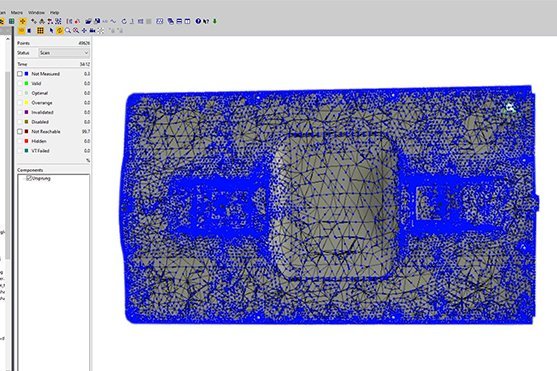

PSV Software allowing CAE data import for creating measurement grids
PSV Software allowing CAE data import for creating measurement grids
Choice of 10 specific waveforms for sample excitation, MIMO measurements with multiple shakers and additional sensors
Choice of 10 specific waveforms for sample excitation, MIMO measurements with multiple shakers and additional sensors

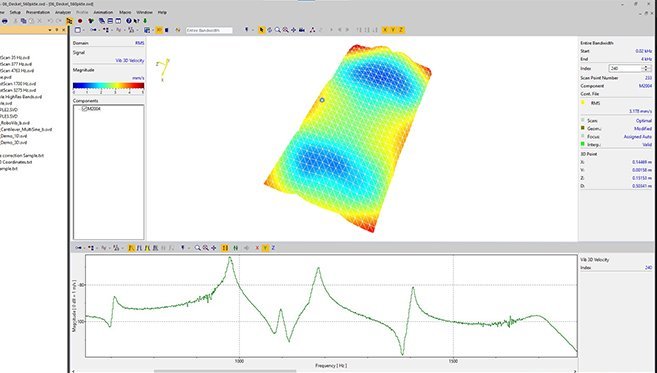

Polytec SignalProcessor enabling custom signal post-processing, available interfaces for MatLab®, LabView®, MS Excel®, Python, ASAM ODS
Polytec SignalProcessor enabling custom signal post-processing, available interfaces for MatLab®, LabView®, MS Excel®, Python, ASAM ODS

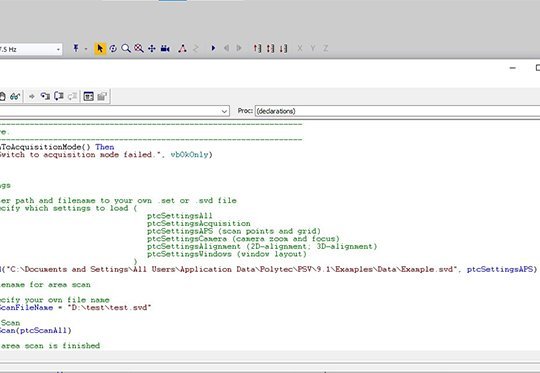

Open Polytec File Access interface for programming custom solutions with LabView, Python
Open Polytec File Access interface for programming custom solutions with LabView, Python
Meaningful presentations and sharing of measurement results
Meaningful presentations and sharing of measurement results

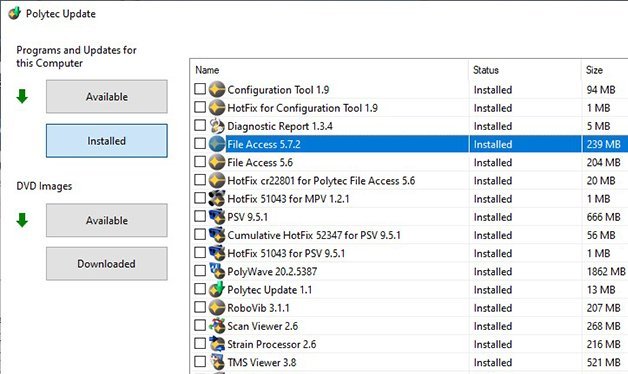

Polytec Update informs about and supplies updates automatically
Polytec Update informs about and supplies updates automatically
PSV Software allowing CAE data import for creating measurement grids
PSV Software allowing CAE data import for creating measurement grids
Choice of 10 specific waveforms for sample excitation, MIMO measurements with multiple shakers and additional sensors
Choice of 10 specific waveforms for sample excitation, MIMO measurements with multiple shakers and additional sensors
Polytec SignalProcessor enabling custom signal post-processing, available interfaces for MatLab®, LabView®, MS Excel®, Python, ASAM ODS
Polytec SignalProcessor enabling custom signal post-processing, available interfaces for MatLab®, LabView®, MS Excel®, Python, ASAM ODS
Open Polytec File Access interface for programming custom solutions with LabView, Python
Open Polytec File Access interface for programming custom solutions with LabView, Python
Meaningful presentations and sharing of measurement results
Meaningful presentations and sharing of measurement results
Polytec Update informs about and supplies updates automatically
Polytec Update informs about and supplies updates automatically

无缝集成至工作环境，客定数据后处理

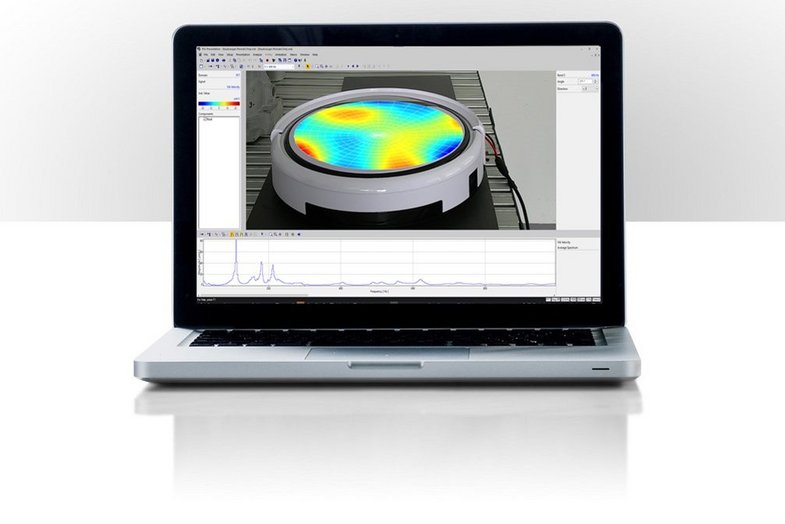

       用户可非常直观地在实时视频图像上来定义测试网格，然后完成时域及频域的数据采集和激励信号等参数设置，测试结果以形象的3D振型动画显示出来。PSV软件具有强大的数据后处理功能：通过光标轻松找出共振位置，利用伯德图等进行深入分析。

       软件还提供现成的Polytec示例宏供用户选择，便于全自动重复测试。免费ScanViewer软件工具方便您与同事及其他人来分享测试结果，Polytec Update帮助您将软件更新至最新版本。大学用户甚至可以申请终身维护，确保始终处于科学带头地位。



NEW: Latest upgrades of Release 10.1

  • 带峰值寻找的快速数据评估-自动识别共振峰
  • 更快的设置，基于对象跟踪-利用机器视觉算法修正外部负载下的对象运动 (PSV-3D)

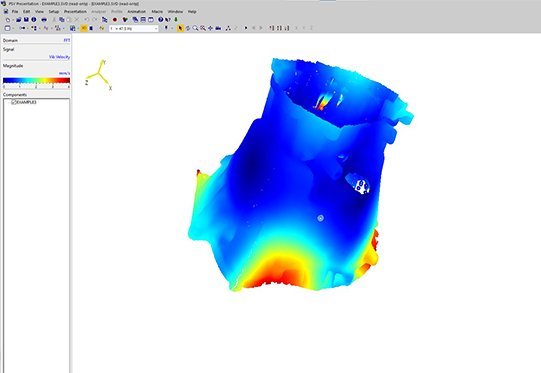

  • 带箭头的ODS动画，更直观地呈现每个测点的动态矢量动画
  • 更快地导入导出二进制UFF文件，压缩文件如ASCII, WAV和ASAM等多种格式
  • 自动进行边缘检测，不会丢失轨迹- 若测点靠近边缘，智能算法确保所有3束激光仍保持在三维结构上 (PSV 3D)
  • 针对有纹理或无纹理的3D几何，多种功能的提升使其更富有效率，信号后处理功能扩展了数学函数库，视频图像导出格式增加了MP4格式
