Combined measurement of form deviation + surface roughness
The TopMap Pro.Surf+ conveniently determines surface roughness and form deviation in a single measurement system – precise, reliable and cost-efficient. The additional roughness sensor and smart data acquisition take the high-end profilometer TopMap Pro.Surf to the next level forming an all-in-one instrument. The resulting Pro.Surf+ is ideal for measuring precision surfaces – in the metrology laboratory, close to production and even right in the production line thanks to a high level of repeatability.
outstanding single FoV
(extended 230 x 220 mm)
flexible, large Z range
high vertical resolution
warranty + lifetime software updates
Highlights
- Quick and precise 3D surface + roughness characterization
- Multi-sensor system to capture all surface and structural details
- Non-contact measurement and traceable results
- SST Smart Scanning Technology + filter wheel master any surfaces, materials and reflectivities
- Capture large or multiple samples in one shot with exceptionally large workspace XYZ 230 x 220 x 70 mm
- Telecentric lens measures even deep and recessed areas
- Automatic sample recognition avoid mechanical fixture
- Free 4 year warranty and lifetime Software updates
Large area form and roughness profile
Pro.Surf+ offers combined measurements of form parameters such as flatness, step height, parallelism plus additional roughness evaluation. With its large field of view for capturing big samples in one shot, with long Z range and telecentric lens for reaching deep holes or large steps and outstanding measuring speed - this multi-sensor surface profiler is a multi talent indeed.
The combination of an areal measuring white-light interferometer and the chromatic confocal sensor make sure to capture all form and structural surface details. Record two million measurement points on the large 44 x 33 mm single field of view within just seconds without the need for stitching – or extend the image field size to 230 x 220 mm. With a large 70 mm vertical range and an excellent vertical resolution regardless of the image field size, Pro.Surf+ offers vast options and flexibility for your measurements. The ultra-fast data acquisition complies with short cycle times at production level. Integrated machine vision tools such as automatic pattern recognition speed up your quality inspection. Measure multiple samples in a single shot without mechanical fixture or positioning. Measure form + roughness faster on large areas with Pro.Surf+.

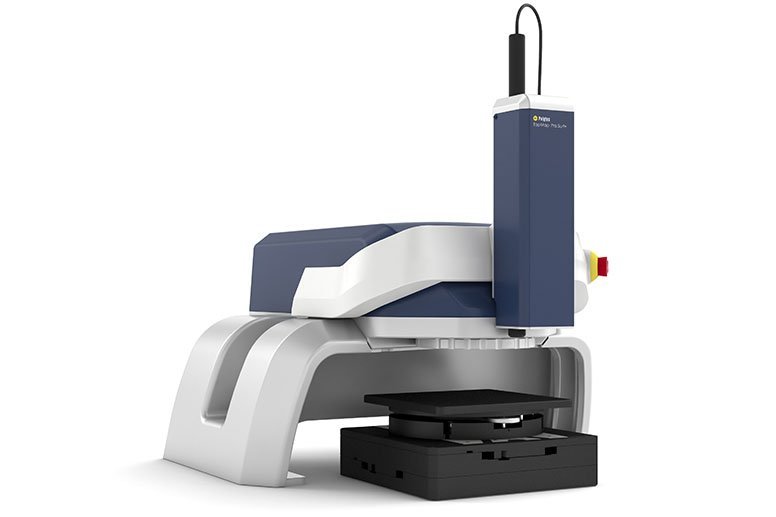

Combined measurement of form parameters plus surface roughness - TopMap Pro.Surf+
