10.11.2025Customer Story

Precision seals: flatness and step heights measured across the whole sealing face

The story at a glance

Customer: European manufacturer of precision sealing components
Challenge: Flatness tolerances down to 0.1 µm and tight step heights on a whole family of seals, from coin-sized lip seals to sealing rings several inches across
Solution: TopMap Pro.Surf with single-field and stitched measurements and automated recipes in TMS software
Measured: Flatness, form deviation and step heights across the entire sealing face
Result: Full-surface inspection in seconds, consistent across operators and fast enough for daily quality control
Challenge: Sub-micrometer flatness

Flat to the eye is not tight under pressure

A sealing part can look perfectly flat and still let fluid past it under pressure. For a European manufacturer of precision sealing components, that gap between "looks fine" and "seals reliably" is the whole business. Their parts keep air compressors, water pumps and rotating systems such as EV drive-motor cooling units and gearboxes tight, and a leak in the field is a failed part.

Flatness tolerances run down to 0.1 µm, far too small to see or feel, and step heights on the sealing face have to be controlled just as tightly. On top of that, the inspection covers a whole family of parts, from coin-sized lip seals to non-contact sealing rings several inches across. As a routine production check, the method had to be fast, repeatable by any operator and trustworthy enough to release parts on.

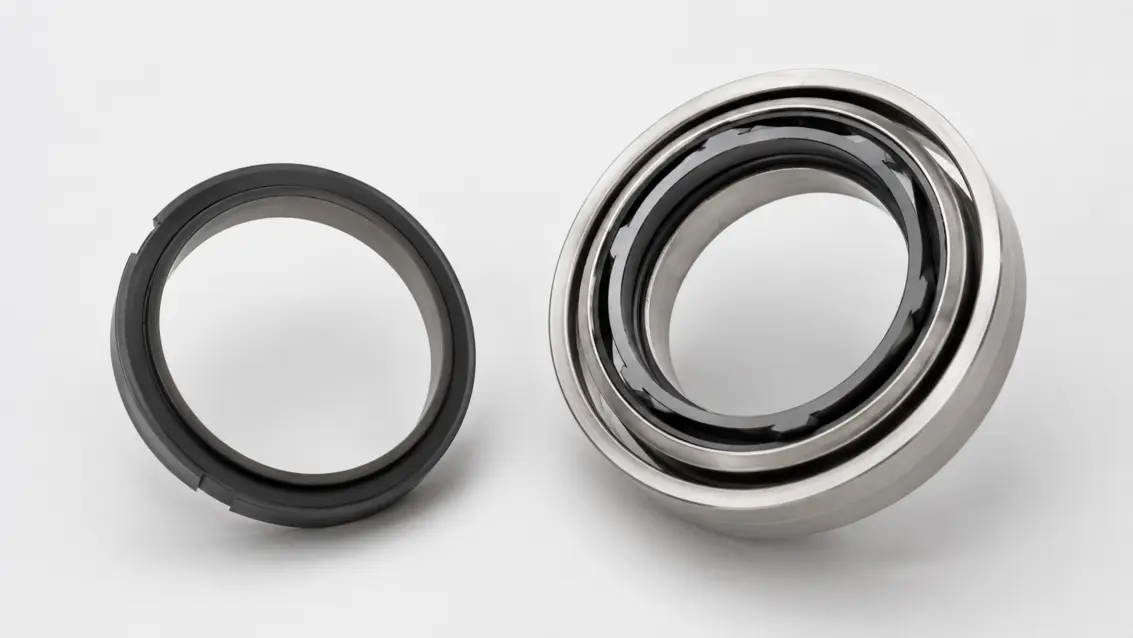

Sealing components
Flatness of pump sealing ring
Solution: Full-surface profiling

The whole sealing face in seconds

After testing it against their existing measurement systems, the manufacturer adopted the TopMap Pro.Surf for everyday flatness, form and step-height inspection. Smaller parts are captured in a single field of view, and larger sealing surfaces are measured with image stitching, so the complete functional area is evaluated rather than a few sampled points.

Instead of the slower, point-by-point picture from a microscope-based system, engineers get a non-contact map of the entire sealing face in seconds, with flatness, form deviation and step heights all at once. For recurring checks, measurement recipes in the TMS software automate the routine, so the same inspection runs the same way every time.

Pro.Surf macro profiler for flatness, step height and other production parameters
Result: Seconds per sealing face

A daily inspection the whole team relies on

The full-surface view changed how the team works. The overview is immediate and easy to trust, so the Pro.Surf is now used far more often than the older microscope system it sits alongside. Automated recipes mean less manual setup and consistent results from one operator to the next. The inspection is fast enough for daily quality control and precise enough for sub-micrometer sealing surfaces.

Today the system runs mainly in quality inspection, with clear room to move it closer to the production press as needs grow.
