Find the right interrogator for your sensor system

The interrogators  and OEM boards for single-point sensors meet the requirements of energy, medical and industrial applications and ensure long-term, reliable performance under constantly changing conditions.

Features

  • High readout rates
  • Compact size
  • Low power consumption
  • Available for WLPI and GaAs technology


In order to guarantee the best possible performance for different applications, we use different technologies for our interrogators that are matched to the corresponding sensors. On the one hand, the systems based on gallium arsenide technology (semiconductor band gap) for the temperature sensors of the Opsens OTG series and COMEM TS sensors and, on the other hand, the systems based on white light interferometry (WLPI) for the OTP sensors.



Interrogators

based on white light interferometry (WLPI) technology for temperature sensors of the Opsens OTP series

Interrogators

based on gallium arsenide technology for temperature sensors of the Opsens OTG series and COMEM TS series

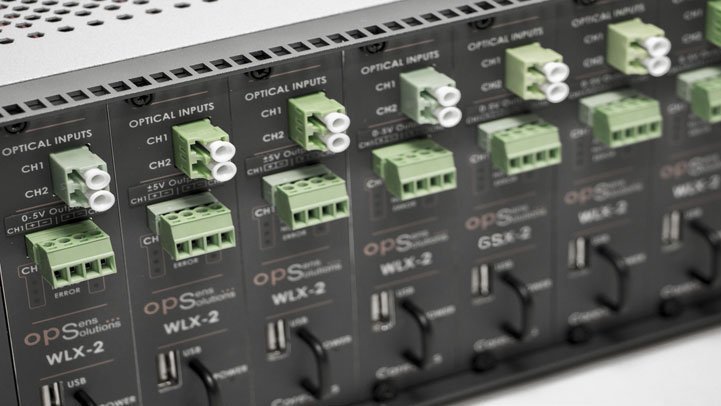

Opsens CoreSens

Versatile and scalable, supports WLPI and SCBG sensors

The readout system offers high-speed measurements with deterministic synchronization across many measuring channels. With its EtherCAT® interface, several CoreSens units can be combined to form a measuring system with up to 1,300 measuring channels.

The CoreSens unit consists of two-channel fiber optic measurement modules in a rackmount chassis.

  • The WLX-2(S) modules based on WLPI technology (White Light Polarization Interferometry) are used with fiber optic sensors based on WLPI from Opsens Solutions to measure temperature, pressure, strain or displacement.
  • The GSX-2 modules based on SemiConductor BanGap (SCBG) technology are used with fiber optic temperature sensors (OTG sensors) with SCBG technology from Opsens Solutions to measure rapid temperature fluctuations.

Both module types can be combined in a single housing. Each module has two fiber optic measuring channels with a sampling rate of up to 1,000 Hz and two analog outputs.

Versatile, modular and scalable

The CoreSens unit is the latest generation of interrogator systems from Opsens Solutions. The device is modular and scalable. Dual-channel measurement modules can be added as required.

Tailor-made for your needs

The CoreSens is available in a rackmount chassis configuration with up to 13 WLX-2(S) and/or GSX-2 dual-channel measurement modules. The master EtherCAT® (CSC-M) or bridge EtherCAT® (CSC-B) control interface module can manage up to 50 CoreSens chassis to provide complete control over a total of 1,300 measurement channels. A stand-alone configuration with a single WLX-2(S) or GSX-2 dual-channel measurement module is also available.

ServSens: for simple configuration and data acquisition

Opsens Solutions offers a simple and versatile web server application that is available with all CoreSens configurations. In the chassis configurations and with the CSC-M control module, the ServSens application runs in an embedded web server without the need to install any software on the customer's PC.

The ServSens application offers all functionalities for system, module and sensor configuration as well as real-time data acquisition and storage.

Versatile and open interfaces

For more flexibility, users can connect the CoreSens system to their own EtherCAT® network (with CSC-B module) or Ethernet network (with CSC-M module).

The open interface architecture allows users to develop and use their own application interface for an EtherCAT® or Ethernet-based communication link with the CoreSens device. SCPI-like commands for easy programming are supported by both interfaces.

EtherCAT capability

The EtherCAT® interface and EtherCAT® protocol are the best choice for true deterministic synchronization of high-speed and multi-channel measurements.

This provides a state-of-the-art industrial real-time fieldbus based on Ethernet in all rackmount versions of CoreSens products.

EtherCAT® is a registered trademark and patented technology licensed by Beckhoff Automation GmbH, Germany.

LogSens: CoreSens Stand-alone

The LogSens software is supplied with the CoreSens stand-alone system for use with the USB interface. LogSens offers all functionalities for the configuration of the system, the module and the sensors as well as for the acquisition and storage of data in real time.

Exemplary applications

By industry

  • Civil engineering: Monitoring of civil and geotechnical infrastructures (bridges, dams, tunnels, mines, buildings)
  • Military, aerospace: testing and monitoring of aircraft components
  • Industry: automation and process control
  • Energy: wind farm, nuclear environment, turbine instrumentation, high-voltage areas
  • Oil and gas: offshore platforms, refinery and storage applications



According to parameters
Simultaneous and synchronized high-speed measurements of

  • Temperature
  • Pressure
  • Strain
  • Displacement



PDF-Download




Opsens FieldSens-W

Compact, robust and multi-channel for all fiber optic WLPI sensors

FieldSens-W is a compact and robust multi-channel interrogator system that can be used with all interferometric fiber optic sensors from Opsens Solutions, i.e. the WLPI sensors, for temperature, pressure, strain and position measurements.

FieldSens-W is based on White Light Polarization Interferometry (WLPI) technology. It is extremely versatile, supports a wide range of fiber optic sensors and offers a sampling rate of up to 250 Hz (with one active channel). A maximum of 32 modules with up to 12 channels per module are possible (up to 384 channels).

The device offers several interfaces for remote control and real-time data acquisition: EtherCAT®, 10/100 Base-T Ethernet, USB, RS-232 and CAN FD. The open interface enables easy integration into existing external data acquisition software. An optional portable touchscreen display is also available for stand-alone configurations (useful for on-site maintenance or remote locations). The device is equipped with an internal memory to ensure the necessary autonomy.

Features

  • Compact and robust design
  • Versatile thanks to modular design with up to 384 channels
  • EtherCAT®, Ethernet, USB interface, RS-232 and CAN FD
  • Can be used in the housing under outdoor conditions
  • Supports a wide range of sensors
  • Modular design enables both WLPI and GaAs technologies in the same system



Exemplary applications

  • Geotechnical applications
  • Civil engineering: Infrastructure monitoring
  • Industry: automation and process control
  • Portable or desktop devices
  • High voltage conditions
  • EMI, RFI and microwave environments
  • Hazardous and nuclear environments
  • Autonomous monitoring in remote areas


PDF-Download




Opsens HandySens-W

Portable, highly reliable and multi-channel for all WLPI sensors

FieldSens-W is a compact and robust multi-channel readout system that can be used with all interferometric fiber optic sensors from Opsens Solutions, i.e. the WLPI sensors, for temperature, pressure, strain and position measurements.

The system is based on White Light Polarization Interferometry (WLPI) technology, supports a wide range of fiber optic sensors and offers a sampling rate of up to 250 Hz.

HandySens-W is equipped with a 5.0-inch touchscreen and can be battery powered for remote monitoring projects. The single-channel signal conditioner can be controlled directly via the touchscreen display or remotely via the 10/100 Base-T Ethernet interface and/or USB for real-time data acquisition. The device is equipped with an internal memory to ensure the required autonomy at remote locations.

Features

  • Compact and robust design
  • Portable, battery-operated device
  • Sampling rate up to 250 Hz
  • Large, practical touchscreen display
  • Ethernet and USB interface
  • Supports strain, pressure, temperature and position sensors



Exemplary applications

  • Geotechnical applications
  • Civil engineering: Infrastructure monitoring
  • Industry: automation and process control
  • Portable or desktop devices
  • High voltage conditions
  • EMI, RFI and microwave environments
  • Hazardous and nuclear environments
  • Autonomous monitoring in remote areas


PDF-Download


Opsens WellSens II

Multi-channel interrogator

WellSens Gen II is a robust and highly reliable multi-channel interrogator system. It is compatible with the Opsens OPP-W interferometric fiber optic pressure and temperature sensor for harsh environments. The WellSens Gen II can be operated in an ambient temperature range from -20 °C to +60 °C.

The wide operating temperature range and low power consumption make it ideal for remote applications powered by solar cells or generators. The modular DIN rail design allows for seamless expansion as requirements grow. The high precision, small footprint, fast sampling rates and ease of use make it the solution of choice for oilfield or industrial process applications.


Key features

  • High linearity, precision and fast sampling rates
  • Expandable up to 128 channels
  • Modular DIN rail design
  • Flexible - supports current and future WLPI products (P/T, displacement and strain sensors)
  • Wide operating temperature range
  • Low power consumption - <12 W for 2 channels (without display)
  • Ideal for decentralized applications with solar panel
  • Supports a wide range of interface and communication protocols, including RS485, TCP/IP and ModBus
  • Application control - programmable alarms and I/O options



Exemplary applications

  • Borehole measurements
  • CO2 storage (monitoring of reservoirs)
  • Downhole monitoring for thermal EOR (Enhanced Oil Recovery)
  • Intelligent field instrumentation
  • Hazardous and strong EMI/RFI/MRI environments



PDF-Download

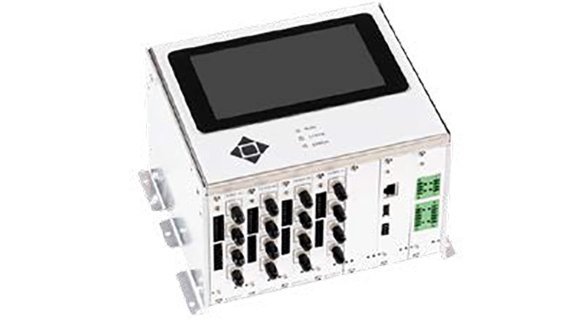

COMEM Fotemp MN30, HD20, MS10, C15, C20, T20, T30

Turnkey systems for microwave and high-voltage applications

They are equally suitable for strong magnetic fields and aggressive industrial environments and also provide accurate temperature monitoring to protect your equipment.
FOTEMP devices are supplied with customizable probes, sensors and accessories to meet your specific requirements. They are calibratable from -200 °C to +300 °C and integrate seamlessly with the appropriate monitoring software for comprehensive data logging and visualization. The measurement accuracy is ± 0.2 °C.

PDF-Download

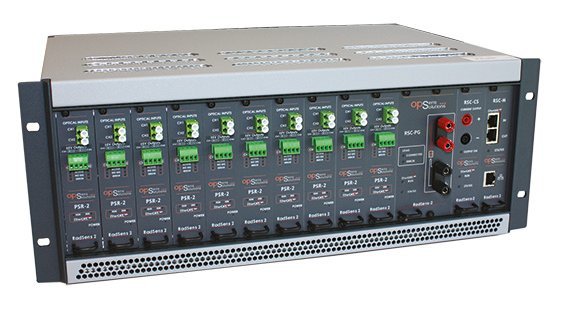

Opsens RadSens-2

High sampling rate and short response time

RadSens-2 is based on SCBG technology for high-speed temperature measurements and represents the latest generation of fiber optic test solutions for HERO (Hazards of Electromagnetic Radiation to Ordnance) and RADHAZ (Radiation Hazard) applications. The system was developed for use with the OTG-R temperature sensor.

The system is used to evaluate the electromagnetic compatibility of EED (Electro-Explosive Devices). It offers improved high-speed and deterministically synchronized measurements through better dual-channel modules.

Compared to the previous generation, the scalable system offers three times more measuring points with a maximum of 26 measuring channels per chassis. The embedded web server application enables easy configuration and control and is now independent of the computer operating system.

Intelligent solution

The fiber optic measurement solution enables a reliable assessment of the electromagnetic effects on explosive ordnance. The solution combines RadSens-2 with newly integrated functions and the fiber optic OTG-R temperature sensor, which was specially developed for the instrumentation of electro-explosive devices with wire bridges.

RadSens-2 offers EtherCAT® and Ethernet interfaces, a newly developed web server application, analog outputs and optional Bluetooth functions.

EtherCAT capability

The EtherCAT® interface and EtherCAT® protocol are the best choice for true deterministic synchronization of high-speed and multi-channel measurements. The state-of-the-art industrial real-time fieldbus based on Ethernet is offered in all rackmount versions of RadSens products.

Modular solution tailored to your needs

RadSens-2 is available in a multi-module rackmount chassis with up to 13 PSR-2 dual channel measurement modules (26 channels in total).

Designed specifically for HERO requirements, the system offers more than just real-time temperature measurements. It can automatically convert these temperature measurements into meaningful parameters for HERO test equipment, such as current (mA), power (mW) and decibels below the no-fire threshold (dB).

Web server application - HazSens

HazSens is a versatile web server application for easy configuration and data acquisition. No software installation on a remote PC is required.

Advanced filtering

RadSens-2 is equipped with an adaptive high-performance filter for noise suppression. Without compromising on response time, the filter remains very efficient even with rapid signal fluctuations, and with almost no attenuation of the high-frequency signal components.

Simple calibration

The RadSens-2 offers an integrated automatic calibration function. It is no longer necessary to record and evaluate data manually. The EED-induced current sensitivity is calculated automatically using the auto-calibration software. This unique feature can reduce calibration time by up to 90 %.

Reliable fiber optic sensors

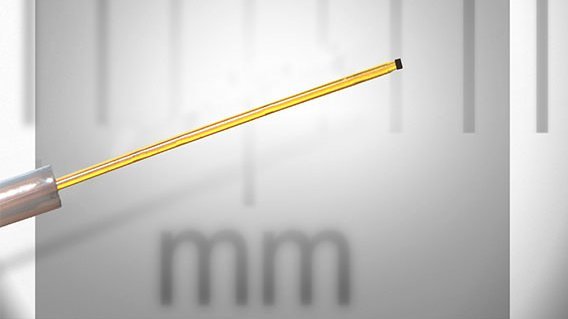

The OTG-R temperature sensor is completely insensitive to electromagnetic interference (EMI) and was specially developed for EED instruments. With a response time of one millisecond and its compact size, it is perfectly suited for mounting on wire bridges of electro-explosive devices of all kinds.

Opsens Solutions' proprietary technology behind the OTG-R eliminates stability issues associated with movement and manipulation of the optical fiber. It offers exceptional reliability and repeatability, even when used in environments with strong mechanical vibrations.

Features

  • Optimized system configuration with scalable design and dual-channel measurement modules for up to 26 channels per housing
  • Embedded web server application for easier system configuration and control (independent of computer operating system)
  • EtherCAT® and Ethernet interfaces
  • Improved performance
  • Complete turnkey solution; no separate hardware and software required
  • Unique adaptive real-time filtering for noise suppression without signal attenuation or delay
  • Modular and improved current source for efficient calibration of the instrumented EED
  • Built-in calibration tool for precise induced current response measurements
  • Open interface for easy integration into existing external data acquisition software
  • EED assembly expertise for turnkey EED instrumentation service


Exemplary applications

  • Testing of electro-explosive devices (RADHAZ and HERO applications)
  • Static or dynamic temperature measurements in confined spaces, hazardous and high EMI/RFI environments
  • Simultaneous high-speed temperature measurements
  • Testing of airbag igniters for cars
  • Hazardous environments
  • Fast transient temperature measurements



PDF-Download

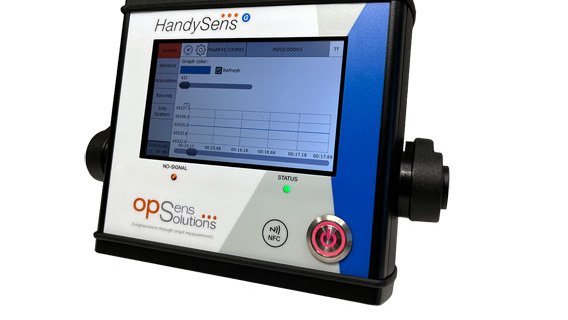

Opsens HandySens-G

Portable, single-channel for all conditions

HandySens-G is a compact and portable single channel system that can be used in a wide range of monitoring conditions with all Opsens Solutions GaAs temperature sensors and offers a sampling rate of 250 Hz.

The system is based on Opsens' Semiconductor Band Gap (SCBG) technology, which enables accurate measurement of the temperature-dependent band gap position of GaAs crystals.

The reader is equipped with a large and practical 5.0-inch touch screen, can be battery powered for remote monitoring projects and is controlled directly via touch screen or remotely via the Ethernet interface 10/100 Base-T and/or USB for real-time data acquisition. An internal memory is integrated for autonomy in remote locations.

Features

  • Compact and robust design
  • Portable and battery operated
  • Sampling rate of 250 Hz
  • Large practical touchscreen display
  • Ethernet and USB interface
  • Supports a wide range of temperature sensors



Exemplary applications

  • Power electronics and semiconductors
  • Electromagnetic compatibility (EMC) assessment
  • Aerospace and defense
  • High voltage environments
  • EMI, RFI and microwave environments
  • Industry: automation and process control
  • Autonomous monitoring in remote areas



PDF-Download

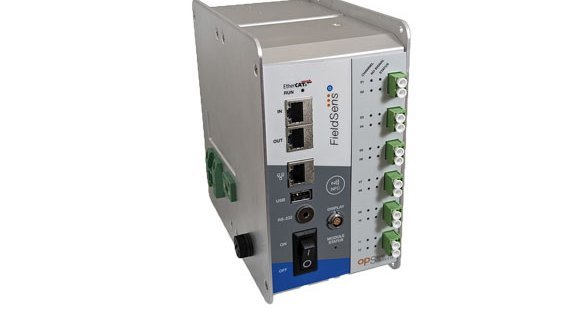

Opsens FieldSens-G

Compact, robust, multi-channel for all GaAs OTG sensors

The FieldSens-G is a compact and robust multi-channel readout device that can be used with all fiber optic GaAs temperature sensors from Opsens Solutions.

The system is based on Semiconductor Band Gap (SCBG) technology and offers a sampling rate of 250 Hz (with one active channel). The maximum number of modules is 32 with up to 12 channels per module (maximum 384 channels).

FieldSens-G offers multiple interfaces for remote control and real-time data acquisition: EtherCAT®, 10/100 Base-T Ethernet, USB, RS-232 and CAN FD. The open interface allows easy integration with existing external data acquisition software. An optional portable touchscreen display is also available for stand-alone configurations (useful for on-site maintenance or remote locations). The device is equipped with an internal memory that provides the necessary autonomy in remote locations and enables years of recording at low capture rates.

Features

  • Compact and robust design
  • Versatile thanks to modular design with up to 384 channels
  • EtherCAT®, Ethernet, USB interface, RS-232 and CAN FD
  • Can be used in the housing under outdoor conditions
  • Supports a wide range of temperature sensors
  • Modular design enables both WLPI and GaAs technologies in the same system


Exemplary applications

  • Power electronics and semiconductors
  • Electromagnetic compatibility (EMC) assessment
  • Aerospace and defense
  • High voltage environments
  • EMI, RFI and microwave environments
  • Industry: automation and process control
  • Autonomous monitoring in remote areas


PDF-Download

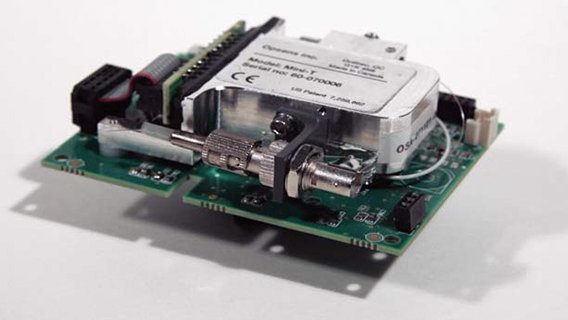

Opsens OEM-MNT

Ideal OEM board for temperature measurements

A perfect, cost-effective solution for integration into the customer's host system.

The OEM-MNT is an OEM readout system based on SCBG (Semiconductor Bandgap) technology and is intended for use with SCBG fiber optic temperature sensors from Opsens Solutions.

The system offers OEM customers a product package tailored to their specific needs. The compact size and modular design ensure maximum design flexibility. The SCBG readout from Opsens Solutions is the only system that has an internal reference and NIST-traceable calibration procedures. These features provide the long-term reliability and stability required by the industry. The OEM MNT is available with or without a housing and with various interface options for easy integration into the customer's host systems.

Features

  • Modular housing for design flexibility
  • Internal reference and absolute wavelength calibration method
  • Easy OEM migration
  • High linearity and precision
  • 50 Hz sampling rate


Exemplary applications

  • Temperature monitoring in environments with electromagnetic interference
  • Temperature monitoring for research applications
  • Research and development of new products
  • All industrial OEM applications


PDF-Download
