IR target positioning with high precision

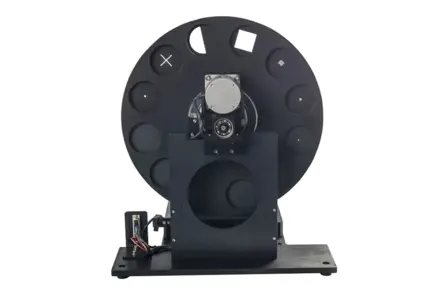

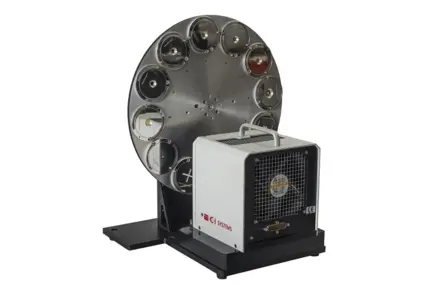

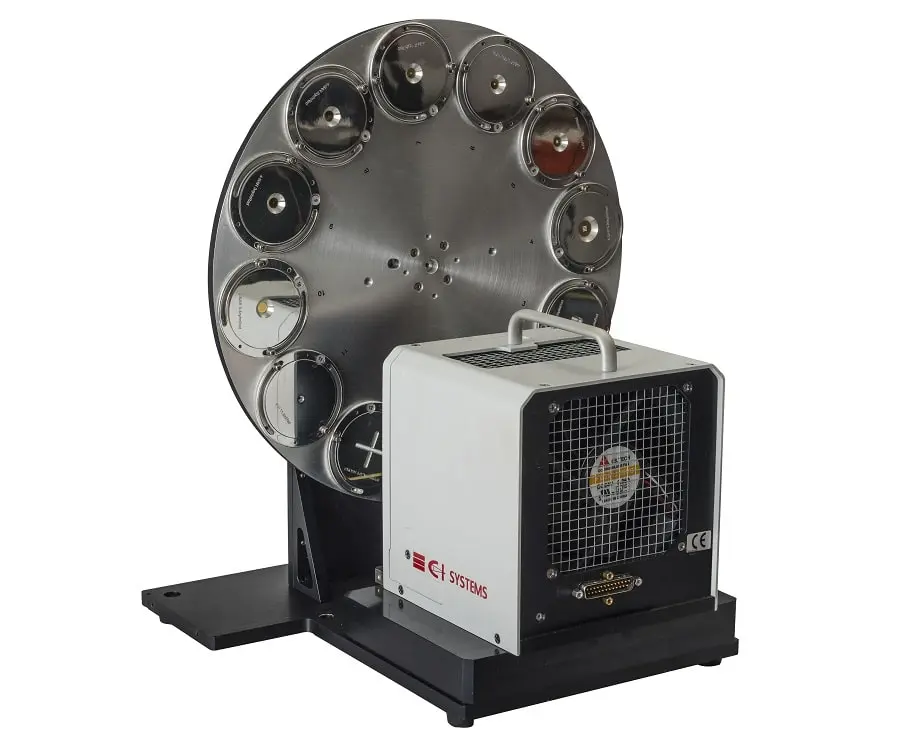

RAD systems are used for the precise positioning and replacement of optical targets in the collimator's focal plane or in direct view of the imaging system.
As one of the fundamental components in electro-optical testing for imaging systems, the RAD system offers a wide range of models that can accommodate various targets, which in turn are illuminated by different sources.
//
Features
- High emissivity coating

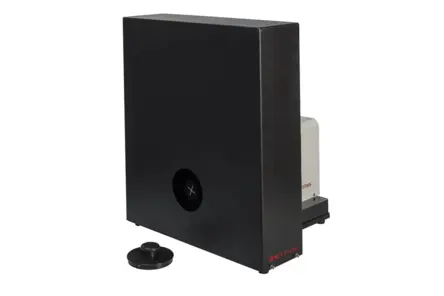

- Shield cover included
- High accuracy positioning
- Easy integration into many radiation sources, including IR, VIS and SWIR wavelength ranges
- High accuracy targets available for testing in the
IR/VIS/SWIR range
Model | Target number in | Max. target | Emitter size |
|---|---|---|---|
| RAD-8/2D | 8 | 22 mm | 2 inches |
| RAD-6/4D | 6 | 100 mm | 4 inches |
| RAD-6/7D | 6 | 100 mm | 7 inches |
| RAD-12/4D | 12 | 50 mm | 4 inches |
| RAD-12/7D | 12 | 50 mm | 7 inches |
