Measuring aero acoustics in wind tunnels with laser light

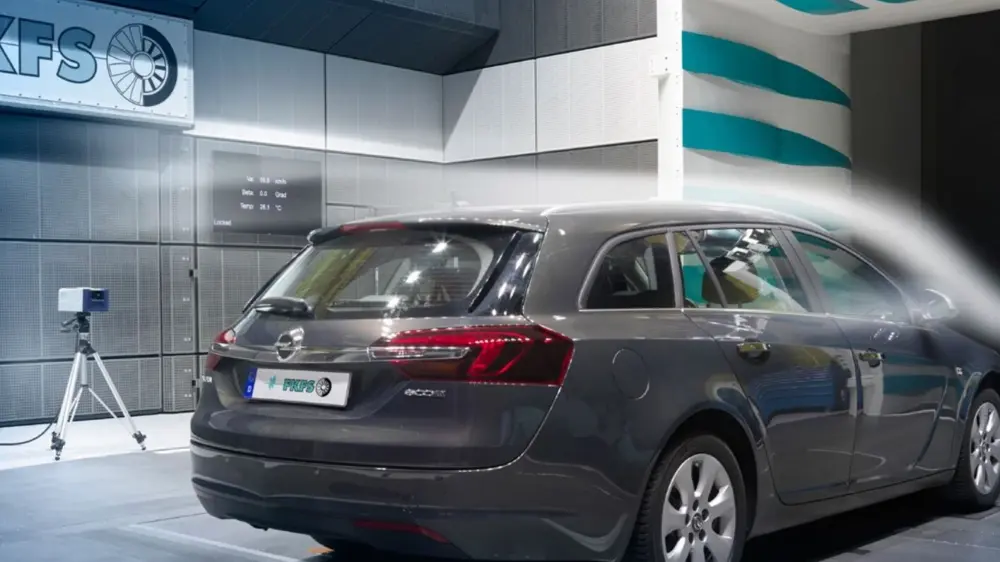

In-vehicle noise is very much dominated by wind noises of more than 80 km/h. A reliable check is carried out in an aeroacoustic wind tunnel with extensive force, flow and sound pressure measurements. The excitation of outer surfaces – particularly the windshield, rear window and undercarriage – caused by turbulences on the vehicle’s body shell is extensively recorded by a scanning vibrometer. The excited deflection shapes have to be recorded without influencing the flow. The PSV Polytec Scanning Vibrometers allow you to capture the necessary measurement data on entire structures and vehicle sections, without time-consuming process of vehicle instrumentation and without adding masses. This consequently results in significantly shortened measuring times – even if you’re trying to capture data from below through a glass base.
Related products
VibroScan QTec Xtra 3D
VibroScan QTec Xtra 3D measures vibrations triaxially in a new way - without contact, full-field and with unprecedented precision. With its groundbreaking multi-path interferometry, QTec® sets new standards in terms of optical sensitivity and interference immunity. The Xtra, based on an infrared (SWIR) laser is characterized by the highest optical sensitivity to guarantee highly accurate measurements even on demanding technical surfaces. VibroScan QTec Xtra 3D ensures maximum portability through integrated data acquisition and signal generator up to 32 MHz.
VibroScan QTec Xtra
VibroScan QTec Xtra measures vibrations in a new way - without contact, full-field and with unprecedented precision. With its groundbreaking multi-path interferometry, QTec® sets new standards in terms of optical sensitivity and interference immunity. The Xtra, based on an infrared (SWIR) laser is characterized by the highest optical sensitivity to guarantee highly accurate measurements even on demanding technical surfaces. VibroScan QTec Xtra ensures maximum portability through integrated data acquisition and signal generator up to 32 MHz.
RoboVib®
By combining a 3D scanning vibrometer and an industrial robot, RoboVib® forms an automated test station for measuring everything from complex components to complete vehicle bodies. Reduce testing time and expenses as well as time to market significantly in experimental modal analysis. Conduct comprehensive 360° testing of a vehicle body, for example, within only one-two days and overnight instead of weeks of preparation with conventional test setups.
