高速光学振动测量

HSV-100 高速型激光测振仪可同时测量振动位移和振动速度（高达40m/s）。用户可根据实际应用配置精确、同步的多通道系统；例如，将安装在电动测试台上不同速度下的阀门升程曲线与期望值进行比较。同时，还用于测量千赫兹范围内的阀门跳动等。HSV-100 内置数字式解码器，提供低噪声、精确的测量结果，还能补偿测试台振动。

亮点

  • 高分辨率实时差分测量
  • 非接触式测量方法以完全无失真的方式 记录动态速度和位移量
  • 跟踪滤波器可确保测量可靠，即使是困难表面
  • 用于狭窄的空间条件的紧凑型传感器头，具有可变的防护距离
  • 频率带宽：50 kHz；250 kHz 可选
  • 用于“瞄准射击”操作的可见点
  • 可选择用于电机测试台的 HSV-AK-800 光束偏转器
  • 同步测量具有正确相位关系的任意数量通道
  • 振动速度和振动位移信号同时输出

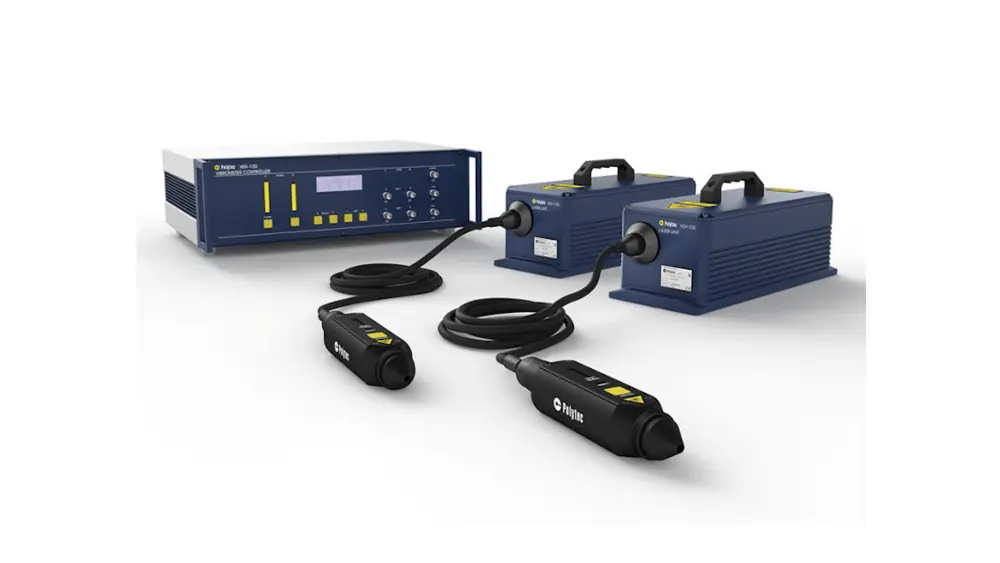

HSV-100 High Speed Vibrometer for simultaneous measurement of fast vibrating structures
HSV-100 High Speed Vibrometer for simultaneous measurement of fast vibrating structures

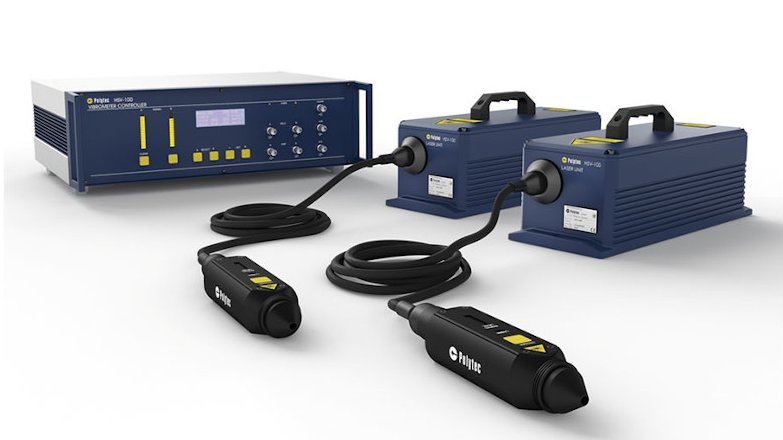

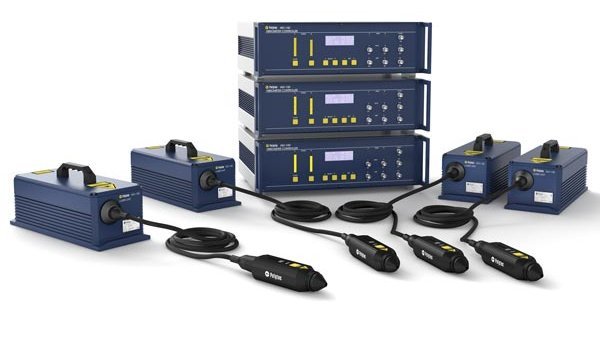

Cascaded and synchronized multi-channel optical test system detecting vibrational velocities of up to 40m/s
Cascaded and synchronized multi-channel optical test system detecting vibrational velocities of up to 40m/s

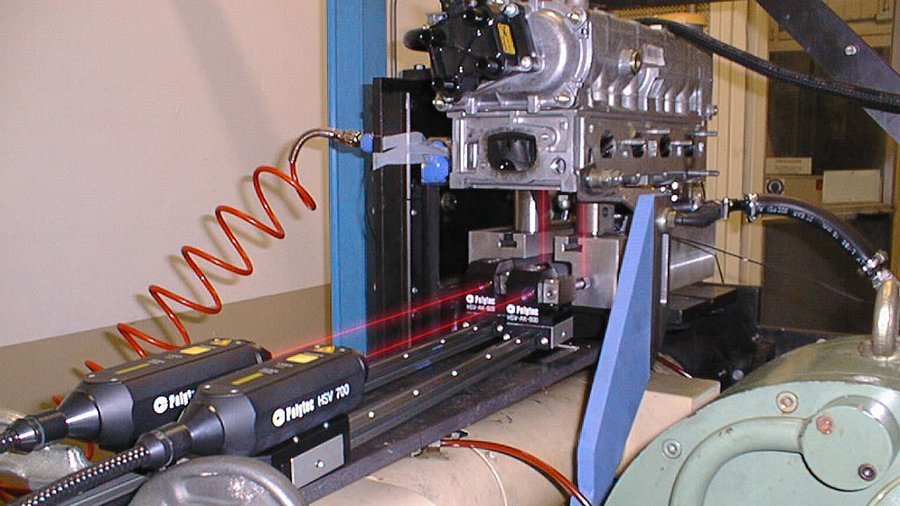

Laser measurement of e.g. valve train dynamics
Laser measurement of e.g. valve train dynamics
Compact laser sensor heads with variable stand-off distance for confined spaces in test setups
Compact laser sensor heads with variable stand-off distance for confined spaces in test setups

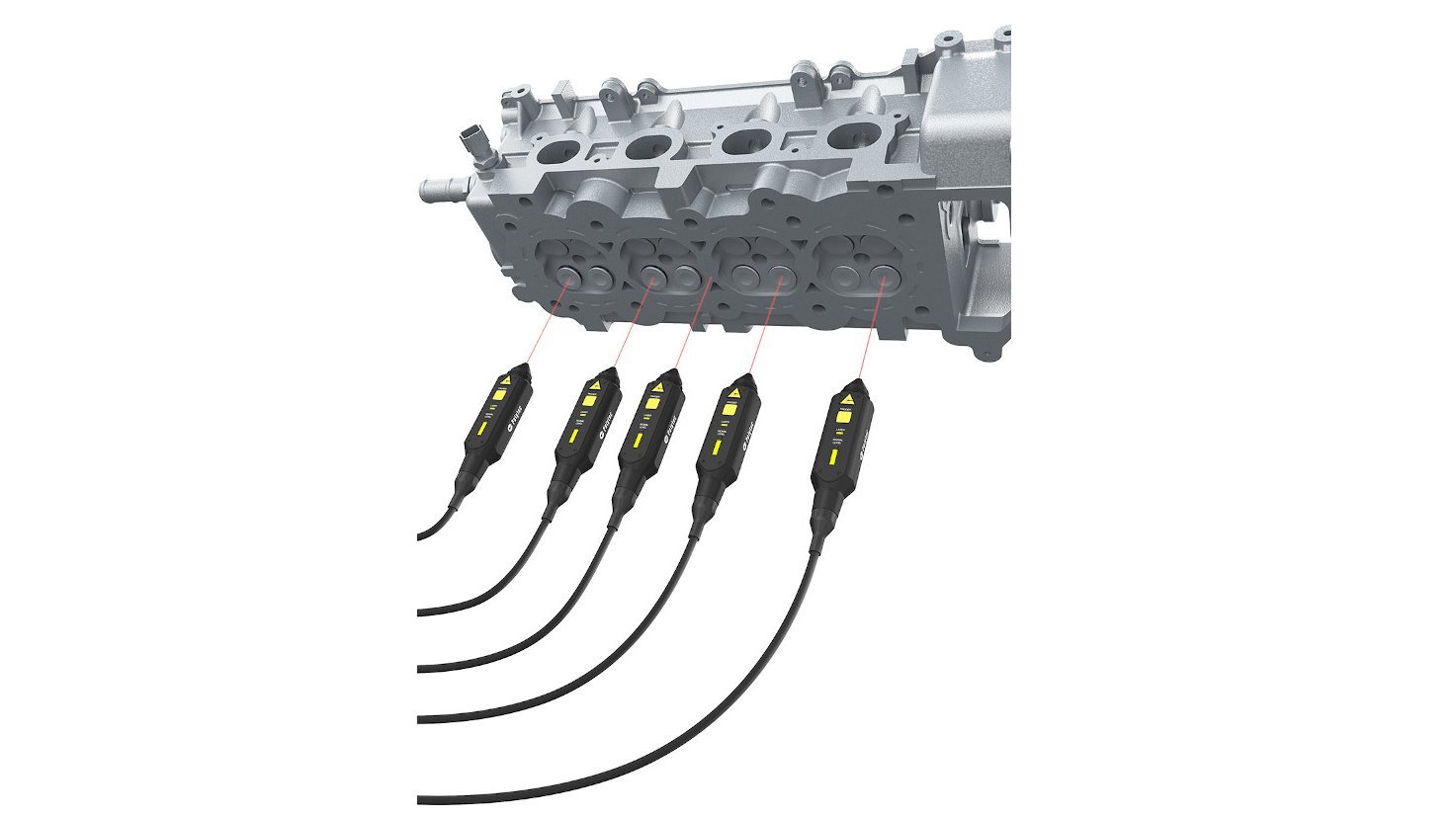

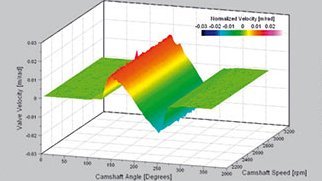

Detailed examination of valve lift and valve bounce
Detailed examination of valve lift and valve bounce
HSV-100 High Speed Vibrometer for simultaneous measurement of fast vibrating structures
HSV-100 High Speed Vibrometer for simultaneous measurement of fast vibrating structures
Cascaded and synchronized multi-channel optical test system detecting vibrational velocities of up to 40m/s
Cascaded and synchronized multi-channel optical test system detecting vibrational velocities of up to 40m/s
Laser measurement of e.g. valve train dynamics
Laser measurement of e.g. valve train dynamics
Compact laser sensor heads with variable stand-off distance for confined spaces in test setups
Compact laser sensor heads with variable stand-off distance for confined spaces in test setups
Detailed examination of valve lift and valve bounce
Detailed examination of valve lift and valve bounce

以高分辨率进行实时测量...

  • 内燃机的气门机构动力学
  • 阀门弹跳
  • 用于评估材料性能的冲击强度分析
  • 涡轮叶片耐久性试验
  • 爆炸和高冲击

高分辨率实时测量

  • 采用非接触式测量方法，以完全无失真的方式记录动态速度和位移量
  • 采用现代数字解码技术
  • 跟踪滤波器可确保测量可靠，即使是困难表面

灵活使用

  • 紧凑式光学头，适合于狭窄的空间条件
  • 光学头坚固，特别适合恶劣的工业应用（防护等级：IP64）
  • 频率带宽：50 kHz；250 kHz 可选
  • 可变的测试距离

设置简单

  • 控制器和光学头上均带有信号电平显示，更容易达到最佳测量设置
  • 激光点可视，方便进行“对准、测试”操作
  • 可选配用于电动测试台的 HSV-AK-800 光束偏转器

可靠、安全

  • 用于监视信号质量的信号电平输出
  • 用于保护仪器的远测试距离
  • 激光安全等级二级，人眼安全

精确差分测量

  • 可补偿测试台振动
  • 具有精确相位关系的任意通道数同步测量
  • 同时输出振动速度和振动位移信号



Valvetrain measurement

相关应用

配件和组件

Optical accessories

Icon accessory
Icon accessory

HSV-AK-800 Beam Steering Unit

Optical beam deflection system for easy alignment of the laser beam especially for valve train measurement applications. Compatible with the HSV-I-100-FF Sensor Head.

Vibrometer accessory - set of mirrors for customized vibrometer test setups
Vibrometer accessory - set of mirrors for customized vibrometer test setups

A-MIR-xxxx Mirror Sets

Polytec's mirror sets contain different sizes of mirrors to assist in the set-up of your measurement.

Icon accessory
Icon accessory

OFV-036-M Pan/Tilt Adjustable Mirror

Mirror diameter 25 mm.

Tripods, test stands, positioning stages

Vibrometer accessory tilt stage
Vibrometer accessory tilt stage

VIB-A-P01 Tripod Mountable Tilt Stage

Vibrometer accessory 2-axis stage plus tilt function
Vibrometer accessory 2-axis stage plus tilt function

VIB-A-P02 Tripod Mountable Traverse/Tilt Stage

Vibrometer accessory positioning stage
Vibrometer accessory positioning stage

VIB-A-P06 Tripod Mountable X/Y/Tilt Stage

Vibrometer accessory pan/tilt adjustable mounting plate
Vibrometer accessory pan/tilt adjustable mounting plate

VIB-A-P07 Pan/Tilt Adjustable Mounting Plate

For installation in industrial production lines. Allows fine adjustment of the tilt and rotation angles by ± 1.3°.

VIB-A-T02 Tripod with Pan/Tilt Head

VIB-A-T05 Tripod with Geared Pan/Tilt Head

Flexible arm with magnetic base
Flexible arm with magnetic base

VIB-A-T39 Flexible Arm with Magnetic Base

Miscellaneous

Laser protection glasses recommended for wavelengths 650…700 nm
Laser protection glasses recommended for wavelengths 650…700 nm

A-LAG-0633 Laser Adjustment Goggle

Facilitates the precise pointing of the laser on the device under test.

Icon accessory
Icon accessory

A-RET-xxxx Retro-Reflective Supplies

Selection of sprays, tape, sheets and micro glass beads for improvement of signal to noise ratio when measuring uncooperative surfaces.
