High UV power density for demanding processes

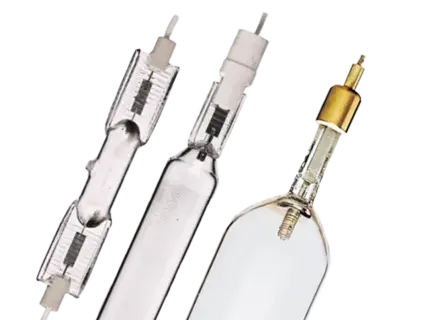

Noblelight medium-pressure UVC lamps generate a broad line spectrum from 200 to 600 nm and provide significantly higher power density than low-pressure lamps. This makes them particularly suitable for compact, high-performance UV systems requiring high throughput.
The portfolio includes standard and high-performance medium-pressure lamps for disinfection, oxidation and photochemical processes. High-performance versions provide increased power densities and ratings of up to 60 kW. The emission spectrum can also be adapted for specific photochemical applications.
Features
- Broad UV spectrum
- from 200 to 600 nm
- High UV power density
- in a compact design
- Standard and high-performance versions
- Electrical power from 0.4 to 60kW
- Suitable for disinfection, oxidation and photochemical processes
- Spectral customization
- available for specific applications
- Different lamp lengths and power ranges
- compact size
- systems can be installed in high throughput applications
Standard or high performance?
| Parameter | Standard version | High performance version |
|---|---|---|
| Preferred application | Disinfection | Disinfection & oxidation |
| Efficient spectral range | 200–280 nm | 200–280 nm |
| Specific electrical power | 80–120 W/cm | 120–250 W/cm |
| Specific UVC radiant flux | 12–18 W/cm | 18–40 W/cm |
| Power range | 0.4–10 kW | 1–60 kW |
| Lamp length | 4–150 cm | 7–200 cm |
| Lamp diameter | 15–28 mm | 19–55 mm |
| Surface temperature | 600–900 °C | 800–900 °C |
| Typical service life | 1,500–8,000 h | 1,500–8,000 h |
Applications
- Water and liquid disinfection
- Advanced Oxidation Processes (AOP)
- Decomposition of organic pollutants
- Photochemical processes
- High-throughput applications
