High-power UV LED curing with intelligent process control

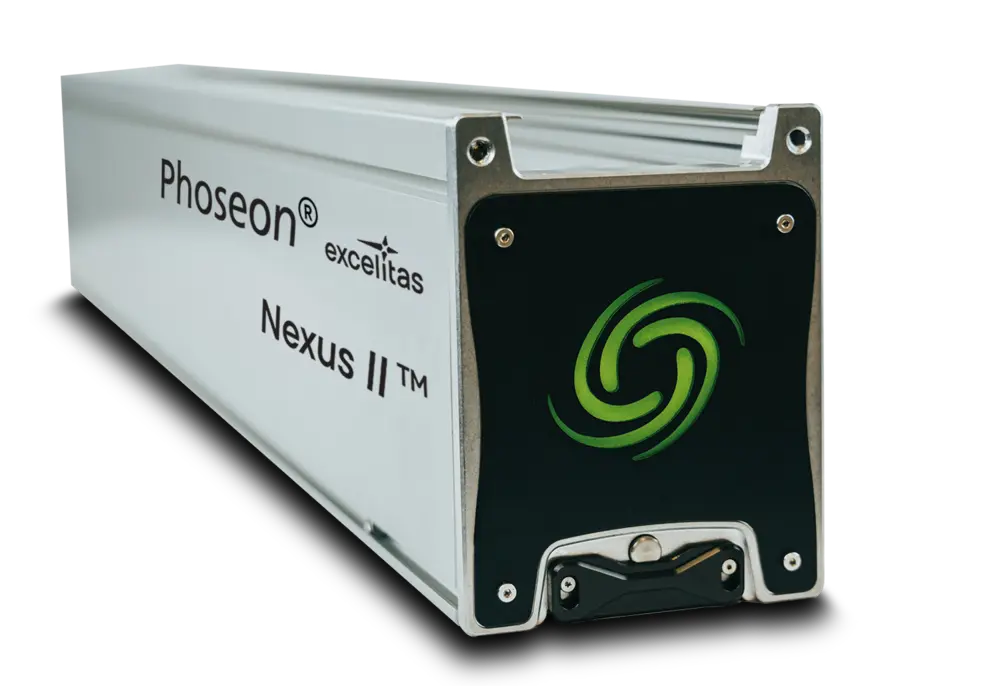

The water-cooled Phoseon Nexus II delivers an ultra-high UV dose for demanding industrial curing processes. Patented SLM™ technology enables real-time uniformity optimization, while ValidCure™ monitors the curing power delivered to the material surface. TargetCure™ provides stable, consistent and precise UV output. With 90 W of output per 25 mm LED segment, working widths up to 675 mm and Nexus DataHub for real-time and historical process data, Nexus II combines exceptional UV performance with comprehensive process control.
Features
- Ultra-high UV dose
- for demanding curing processes
- 90 W UV output per 25 mm SLM™ segment
- Patented Semiconductor Light Matrix (SLM)™ technology
- Real-time uniformity optimization during operation
- ValidCure™ technology
- monitors curing power delivered to the material surface
- TargetCure™ technology
- for stable, consistent and precise UV output
- Nexus DataHub
- for real-time and historical process data
- Working widths from 300 to 675 mm
- 395 nm wavelength
- Modbus over TCP/IP for system integration
- Water-cooled design
- for high power density
- Replaceable protective glass
- Five-year full-system warranty
Specifications
| Max working width [mm] | 300 | 375 | 450 | 525 | 600 | 675 |
|---|---|---|---|---|---|---|
| Wavelength | 395 nm | 395 nm | 395 nm | 395 nm | 395 nm | 395 nm |
| SLM™ Light Output Energy per Segment | 90 W | 90 W | 90 W | 90 W | 90 W | 90 W |
| 120±5V Power In (Max) | 2900 W/ 24 A | 3575 W/ 30 A | 4300 W/ 36 A | 5000 W/ 42 A | 5700 W/ 48 A | 6400 W/ 54 A |
| Chiller/Cooler Capacity | 2200 W | 2700 W | 3250 W | 3800 W | 4320 W | 4850 W |
| Chiller/Cooler Flow Rate | 6 LPM | 6 LPM | 8 LPM | 8 LPM | 10 LPM | 10 LPM |
| Pressure Drop (Typical) | 0.8 bar | 1.0 bar | 1.2 bar | 1.4 bar | 1.6 bar | 1.8 bar |
| Length [mm] | 620 | 695 | 770 | 845 | 920 | 992 |
| Width [mm] | 112 | 112 | 112 | 112 | 112 | 112 |
| Heigth [mm] | 147 | 147 | 147 | 147 | 147 | 147 |
| Weight | 9 kg | 11 kg | 12.5 kg | 14 kg | 15 kg | 16 kg |
