Fast and efficient curing

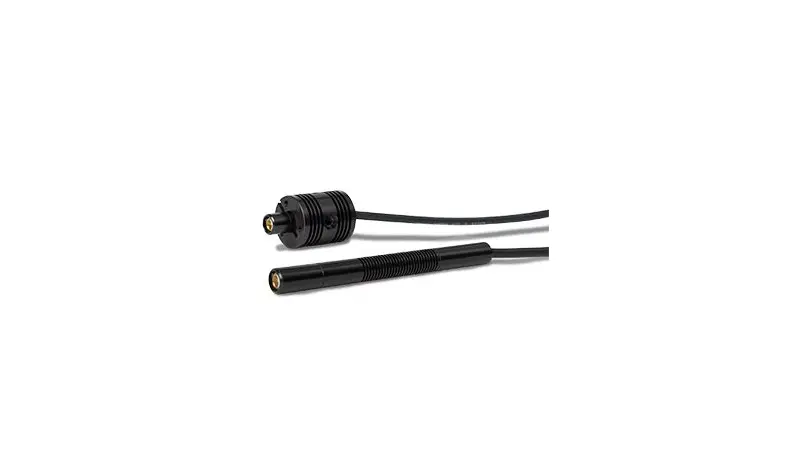

The OmniCure® UV LED V3 heads have been specifically designed to reduce manufacturing costs through faster UV curing, higher energy efficiency and improved control and monitoring features. The innovative design of the UV LED V3 heads offers superior thermal management for dissipating the heat generated by the LEDs thanks to its copper core and optimised aluminium heat sinks. This enables efficient air cooling even under the most demanding production conditions.
The LX500-V3 heads are equipped with a new locking connector that ensures a secure connection and easy installation in the controller with the LX500 controller.
As standard, we offer LED heads with the common wavelengths of 365 nm, 385 nm, 395 nm and 405 nm. Other wavelengths can be realised on request. Talk to our experts about this. With our large selection of lenses, every application can be specified precisely.
Features and specifications of UV LED heads
| Features | Advantages |
|---|---|
| Latest UV LED technology for high irradiance at different wavelengths. | Reduces production costs through faster curing and higher energy efficiency:
|
| Ultra-cool UV LED heads | Long UV LED head lifetime, improved energy efficiency and lower operating costs |
| Patented Intelli-Lamp® technology for real-time monitoring of LED temperature and operating hours | Maximises long-term reliability and lifetime of UV LED head energy efficiency |
| HDMI connector with interlock | Designed for easy installation |
| Technical data | |
|---|---|
| UV LED light wavelength | 365 nm; 385 nm; 395 nm; 405 nm |
| Typical peak irradiance | 16.8; 27.3; 27.0; 23.8 W/cm², each with 3 mm lens* |
| Typical LED lamp service life | 20,000 hours** |
| LED temperature monitoring | LED temperature monitoring and overheating protection thanks to patented Intelli-Lamp technology |
| LED service life monitoring | LED operating hours are monitored by patented Intelli-Lamp technology |
| Cable included with the head | Length: 1 m (extension cables are also available: 1 m, 3 m and 10 m) |
| Head dimensions | Head outer diameter: 12 mm Long head side: 125 mm Short head side: 55 mm |
| Light source | LED class, risk group 3 |
| Approvals and safety standards | Complies with RoHS and CE requirements |
| Guarantee | 10,000 hours or 3 years, whichever comes first |
* Typical peak irradiance variation +/- 20 % (as specified by the LED device manufacturer)
** With 100 % output power at 25 °C temperature and mounting with standard mounting clamp. This data is for guidance only.
