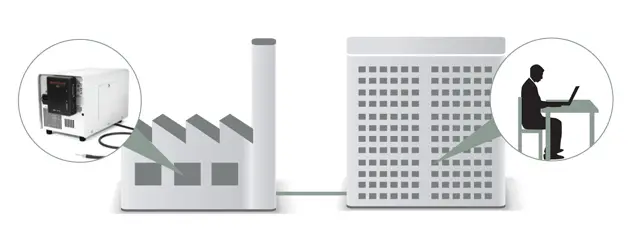

Monitor curing processes remotely

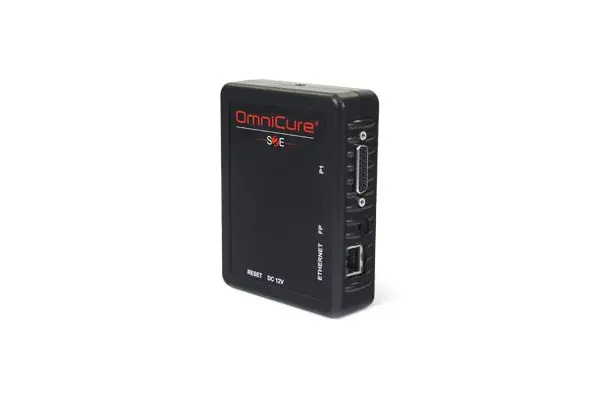

TheOmniCure® S2E network module is designed to save maintenance time and keep production running smoothly through remote process monitoring and control of the UV curing device. The S2E complements the OmniCure® family of S-Series UV spot curing systems and provides the high level of innovation, quality and reliability that customers have come to expect from us.
The OmniCure® S2E Ethernet adapter enables production facilities to enter a new era of connectivity with the ability to remotely access up to 300 UV curing systems on a LAN while monitoring their activity and maintenance requirements via the OmniCure® monitoring station software.
Highlights
//- Save maintenance time
- and ensure smooth production operations with OmniCure® monitoring station software
- Proactive trend tracking
- and prediction of maintenance requirements through continuous logging of operating data
- Improved visibility of production activity
- and rapid isolation of problems that could lead to scrap/rework
- Increase productivity and eliminate wasted time
- by identifying system errors through real-time email alerts
Specification of Network adapter S2E
| OmniCure® S2E kit includes | Network connection module, power supply, OmniCure® monitoring station software and electronic user guide |
|---|---|
| Compatible systems | OmniCure® S2000 and S1500 (*S2E offers additional StepCure function for S1500) |
| Power supply (included) | DC input power: 12 V DC 0.5 A max. |
| Remote Ethernet functions | HTTP remote web interface for system programming via the S2E control panel GUI Automatic TCP/IP device discovery via OmniCure® monitoring station software XML transfer protocol for electronic record of data logging SMTP for email notifications (up to 7 unique recipients per device) Optional PLC control via Modbus TC |
Ambient temperature during operation | 59°F to 95°F (15°C to 35°C) |
| Storage temperature | 14°F to 140°F (-10°C to 60°C) |
| Operating voltage | 100-240 VAC (+/- 10%) 50/60 Hz 0.06/0.025 A |
| Weight | 3.5″ x 1.25″ x 4.5″ (89 x 32 x 114 mm) |
| Warranty | Lumen Dynamics Group Inc warrants to the original purchaser of the product that the device sold will be free from defects in material and workmanship for a period of one (1) year from the date of purchase. All repairs are warranted for a period of 90 days. |
Connection options

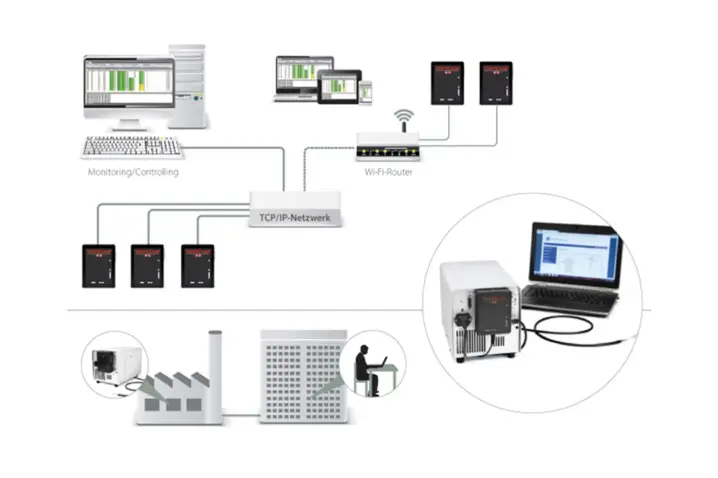

The diagram illustrates the connection options with the Network adapter S2E.
Step-Cure
The OmniCure® S2E enhances the functionality of the S-Series products and provides StepCure capabilities for the S1500 and earlier generations of the S2000.
Step curing from a low initial power through a short pause and then continuing the sequence at high power results in less shrinkage and greater bond strength for some adhesives.
Effectively optimizing a UV cured bond/assembly using the StepCure process can result in improved bond consistency, increased throughput and less product rework/inspection.
