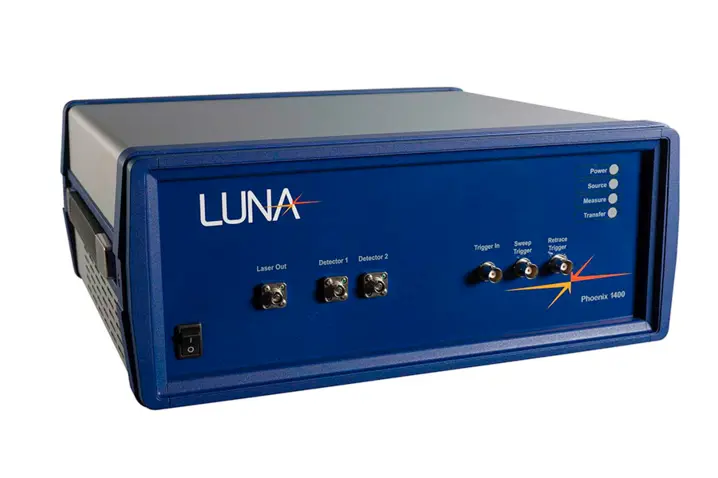

Phoenix – an Integrated Sweeping System
The heart of the Phoenix series is an MEMS-based tunable laser that enables extremely linear laser adjustment. Used in combination with an integrated wavemeter and a detector system, the Phoenix is a complete sweeping system that you can use to quickly measure wavelength-dependent parameters with outstanding precision. An external trigger allows you to synchronize it with other devices in more complex applications. The Phoenix systems are available both as a bench-top variant (model 1400) and a compact, integratable OEM module (model 1200).
- MEMS-based, tunable
- wavelength range: 1,515 – 1,565 nm
- Integrated wavemeter
- Two integrated detectors
- Extremely linear sweeping
ASE Sources
ASE broadband sources use the amplified spontaneous emission of diode-pumped, erbium-doped fibers. They emit a very stable, wide and flat spectrum in the output range up to +23 dBm. Different models in the C and L bands are available.
