Modular concept for reliable process monitoring

Polytec PSS spectrometers provide the ideal solution to your NIR process analytics problems. Diode array detector technology combined with a transmission grating design means the devices can be used for fast and reliable data acquisition. Flexible combinations with fiber-coupled components allow for integration in various measurement scenarios to suit the user’s requirements. Thanks to standardized components, no compromises need to be made with regard to precision and user-friendliness.

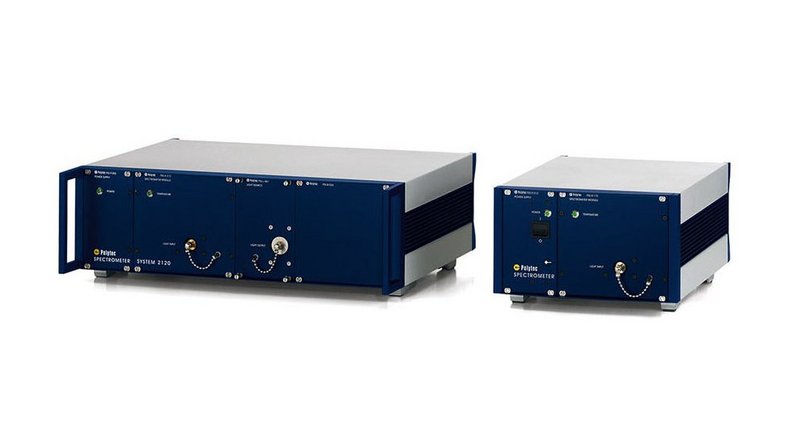

PSS spectrometers are available in a 19” plug-in housing with a 110 – 240 VAC power supply for installation in industrial cabinets. Small ½ 19” controllers with an actively stabilized (10 – 30 VDC) power supply are also available. They are particularly suitable for mobile applications on harvesters, for example.

Highlights

Innovative transmission grating design

High measurement rates due to very short measuring times

Superior sensitivity and long-term stability

Uniformly high optical resolution across the entire spectral range

Extremely low scattered light levels

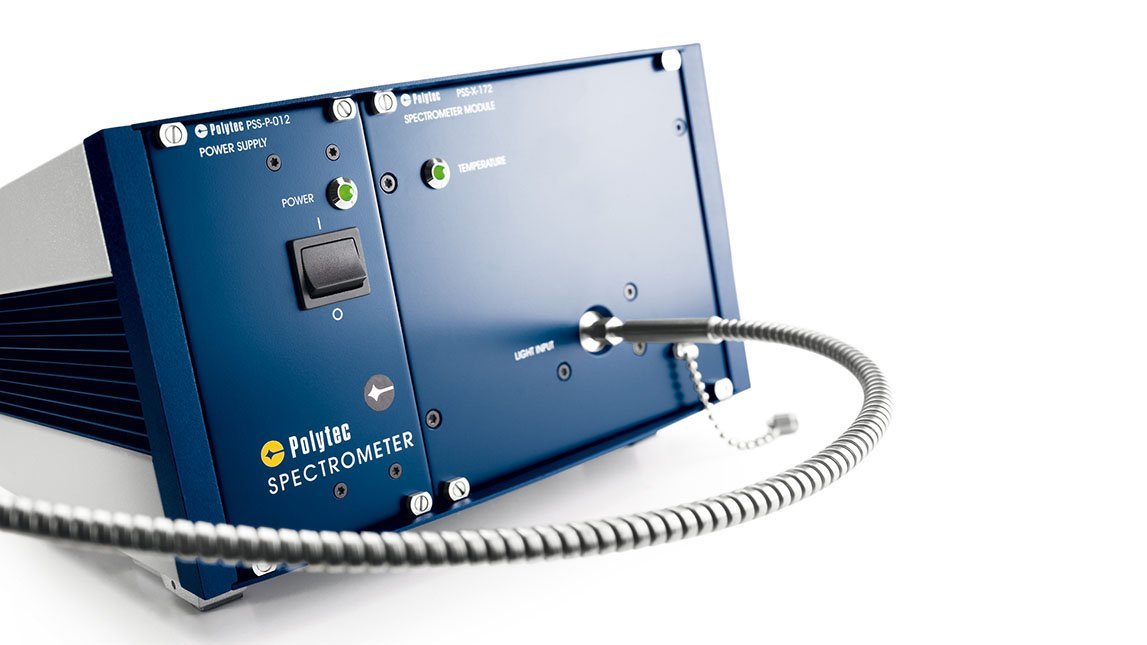

SMA 905 fiber-optic connector

Ethernet interface

  • Various scan heads, optical fibers and software modules

NIR spectrometers for industrial process control

Different models

PSS 1720/1721 and 1750
The compact diode array spectrometers (256 or 512 pixels) are equipped with TE cooling and cover a wavelength range of 850 nm to 1650 nm. They are either available in the 19” housing (PSS 1720) or in the ½ 19” housing.

PSS 2120/2121
These diode array spectrometers (256 pixels) also have TE cooling and can be used in a wavelength range of 1100 nm to 2100 nm. The PSS 2120 is integrated in the 19” housing, while the PSS 2121 is integrated in the ½ 19” housing.

PSS 2220
This spectrometer is also equipped with a diode array detector (256 pixels) with TE cooling and is suitable for a wavelength range of 1200 nm to 2200 nm. The PSS 2220 is supplied in the 19” housing.

Technical data

ModelWavelength rangeHousingDetectorResolution

PSS 1720

850 to 1650 nm19"256 Pixelfrom < 6.4 nm

PSS 1721

850 to 1650 nm½ 19“256 Pixelfrom < 6.4 nm

PSS 1750

850 to 1650 nm19"512 Pixelfrom < 3.2 nm

PSS 2120

1100 to 2100 nm19"256 Pixelfrom < 7.9 nm

PSS 2121

1100 to 2100 nm½ 19“256 Pixelfrom < 7.9 nm

PSS 2220

1200 to 2200 nm19"256 Pixelfrom < 7.9 nm
