Measure light output with excellent repeatability

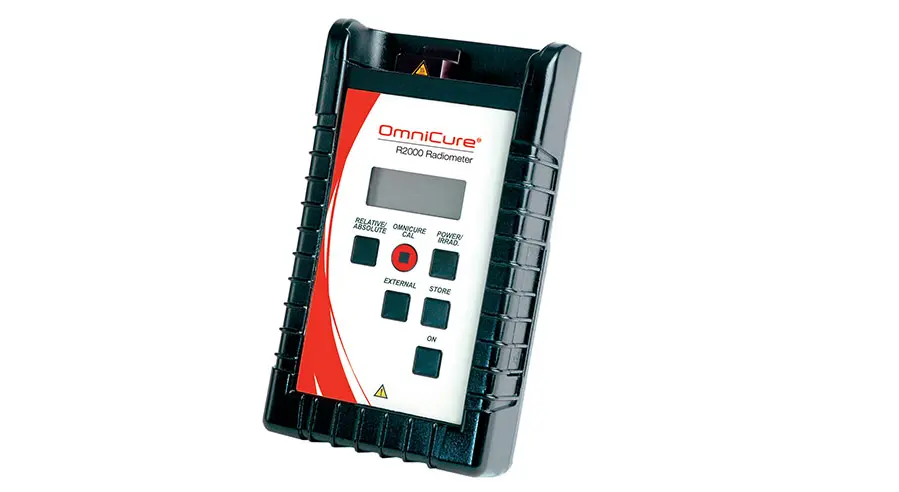

Radiometry is an essential part of measuring the light output of a UV system to maintain a repeatable process. The OmniCure® R2000 UV Radiometer, together with the OmniCure® S2000 / S2000 Elite UV spot curing system, provides a complete curing station with unparalleled control and repeatability. The special electronics built into the R2000 UV Radiometer also allow the connection of user-specific sensors that measure the light energy directly at the curing point in the curing ring holder.
Features and specifications of OmniCure® R2000
| Functions | Advantages |
|---|---|
| Serial communication with the OmniCure® S2000 | Radiance adjustment and system calibration from a single reference point, ideal for mass production |
| Proprietary detector system for accurate broadband measurements | Suitable for use with many different systems |
| Fiber optic detector and color-coded adapters | Automatic identification of fiber optic diameter |
| Memory for storing data | Download values to a PC for accurate process documentation |
| Ready for use with additional custom sensors such as the OmniCure® Cure Ring and OmniCure® Cure Site Radiometer | Customizable with optical accessories that enable radiometry directly at the cure site |
| Technical data | |
|---|---|
| Wavelength range | 250 nm - 1 µm (with suitable calibration) |
| Maximum range | Power: 1 mW - 12 W Radiation: 5 mW/cm² - 60 W/cm² (with 5 mm light guide) |
| Resolution | Power: 1 mW Radiation: 5 mW/cm² (with 5 mm light guide) |
| Accuracy | ±5% typical 10 % maximum |
| Automatic measuring range adjustment | Power: 1 - 990 mW, 1.0 - 12.00 W Radiation: 5 - 990 mW/cm², 1.0 - 60 W/cm² |
| Battery | 3.6 V Li |
| Battery lifetime | 2 years, typical (intermittent use) |
| Features | Radiation measurement, power measurement, automatic fiber optic detection, relative mode, OmniCure™ calibration, data point storage, external input, on button, auto power off, calibration due message |
| Dimensions (L x W x H) | 7 1/2″ x 4 3/8″ x 2″ (19.0 cm x 11.1 cm x 5.0 cm) |
| Weight | 1lb (450g) |
| Guarantee | 1 year warranty |
Accessories
UV radiometer for measuring the joint power at the curing site

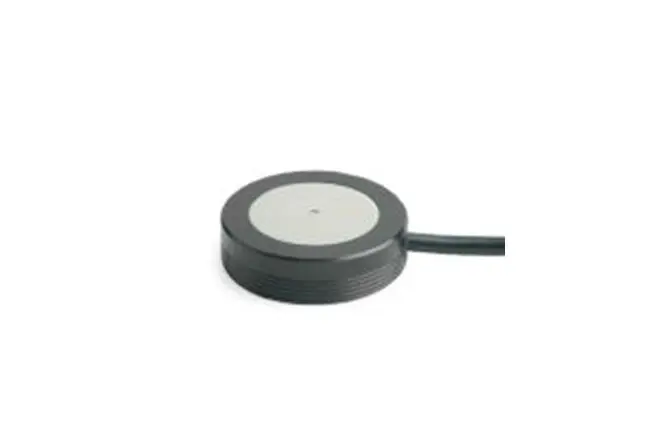

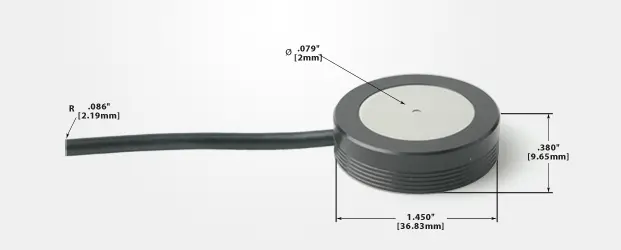

The OmniCure® UV Cure Site Radiometer provides ultimate process control by measuring the output power of a light guide or optical accessory directly at the joint. The UV Cure Site Radiometer shows the exact strength of the radiation at the substrate or joint, allowing users to more accurately control their curing process.
Due to it's dimensions it can be easily adapted to any assembly process. It measures light output directly at the junction and enables transmission rate measurements through any substrate.
| Specifications | |
|---|---|
| Spectral range | 300-600 nm |
| Calibration range | 320-500 nm |
| Dynamic range | 0.25 W/cm² to 8.5 W/cm² |
| Accuracy | +/-5 % typical 10 % maximum |
| Resolution | 10mW/cm² |
| Functions | Automatic switch-off, hold, radiation and control panel software supported by OmniCure® R2000 |
| Certification | CE marking, RoHs compliant |
UV Radiometer for OmniCure® Cure Ring Holders

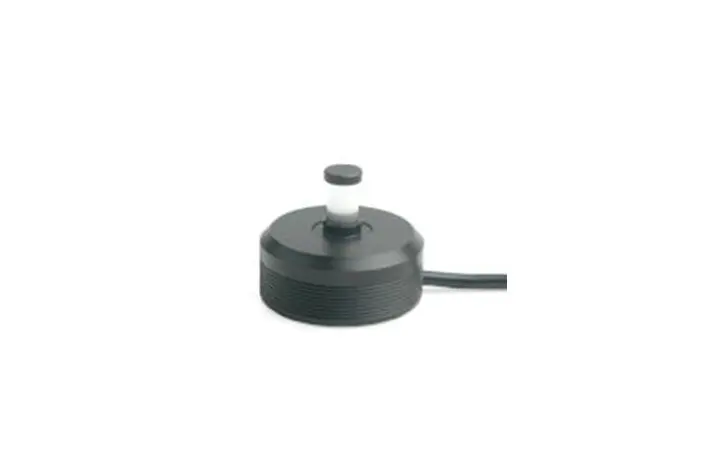

The OmniCure® UV Cure Ring Radiometer complements an OmniCure® Cure Ring Holder to provide the most accurate form of process control for precision manufacturing. By enabling measurement of the curing ring's output power directly at the cure site, the UV Cure Ring Radiometer ensures an accurate and repeatable bonding process. Due to it's dimensions it can be easily adapted to any assembly process.
| Specifications | |
|---|---|
| Spectral range | 300-600 nm |
| Calibration range | 320-500 nm |
| Dynamic range | 83 mW to 2.5 W |
| Accuracy | +/-5 % typical 10 % maximum |
| Resolution | 10 mW |
| Functions | Automatic shutdown, hold, power and control panel software supported by OmniCure® R2000 |
| Certification | CE marking, RoHs compliant |
