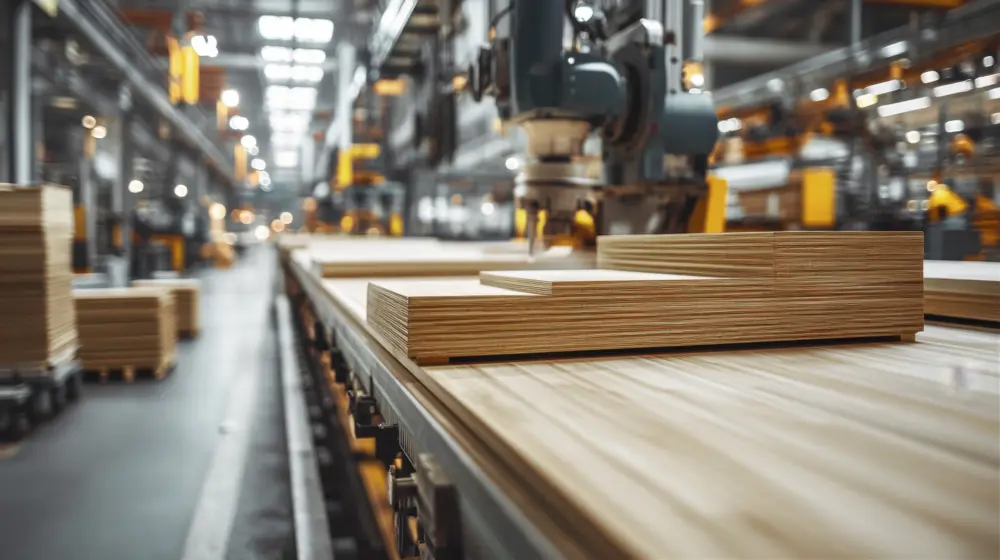

木材や建材の速度と長さの正確な検出

木材や建材の製造および加工工程において、正確で信頼性の高い非接触速度/長さ測定は最も重要です。測定誤差による原材料の追加コスト発生を防ぐことができます。

ポリテックのレーザ表面速度計（LSV）は高精度の速度/長さ測定を実現します。測定データは信頼性が高いため簡単にプロセス制御システムに統合することができます。LSVを使用することにより、測定精度を向上させ、結果、製品の品質と生産性を向上することができます。さらに非接触測定技術のため、製品の損傷を与えず、ほぼあらゆる面において測定できます。グラスウールの切断長制御から屋根材用の長さ測定に至るまで、すべてのアプリケーションにおいて使用できます。

ProSpeed^®LSVは、木材・建材業界におけるさまざまなアプリケーションにおいて役立ちます。

木材の品質チェックと分別
断熱材の切断長
石膏ボードの長さの検証
その他

Downloads

Final length verification in continuous production
PDF / 1 MB
Application note

Benefit from ProSpeed® optical sensors

Non-contact measurement, without slippage & wear
Laser measurement increases accuracy, quality & output
Works on all surfaces without affecting the product surface
3-year warranty & application support
Large depth-of-field compensates vibrations
Reliable performance in dusty, dirty environment

Measure length without slippage

LSV promise reliable length length measurement based on following the speed curve over throughput time. They automatically detect when material is present (material detection mode) and automatically trigger or stop the measurement procedure. LSV Laser Surface Velocimeters are the preferred solution for precise length measurement when rolling up web material and checking cut-to-size pieces, e.g. for fiber cement, plasterboard, wood and wood products, glass wool, rock wool or roofing materials.

The flexible interface concept of latest generation ProSpeed sensors feature encoder output, serial interface, LAN, Ethernet/IP, Profibus and Profinet. Optionally integrated light barriers and, for several barriers, logically link them, for example, to control the length measurement using two trigger inputs thus increasing the accuracy.

Automated laser sensor measuring exact length of insulation material sheets on a conveyor in a factory setting — Precise length measurement on sheets of insulation material

Stacks of wrapped mineral wool insulation rolls stored on wooden pallets in a warehouse for construction materials. — Mass production of insulation materials and mineral wool

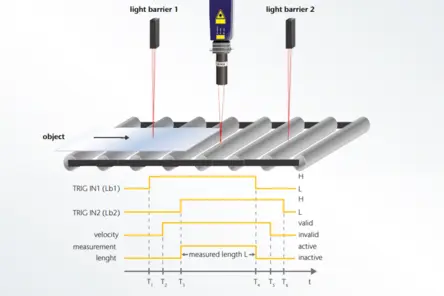

Laser sensor with dual light barriers triggers precise length and velocity measurement for material detection on conveyor rollers. — Light barriers using the laser sensors "Material Detection Mode" as trigger

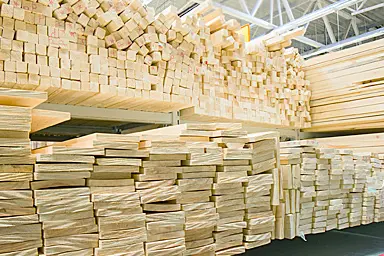

Stacks of sorted wooden beams and planks organized by length and quality in a warehouse for construction materials — Sorting in length and quality of beams, wooden plates or construction materials

Final length verification in continuous production
Application note

Feed speed as key parameter

Measuring the exact and real speed is the fundament for any process control and optimization - whether for cut-to-length, length measurement or verification, or speed synchronization. With the non-contact measurement method, ProSpeed® laser sensors avoid measuring uncertainty caused by slippage and wear. LSV sensors are established non-contact encoders for determining the dwell time in coating systems, for controlling cutting devices in cut-to-length processes, such as wooden panels, boards and beams as well as in the manufacture of plasterboards, glass or rock wool.

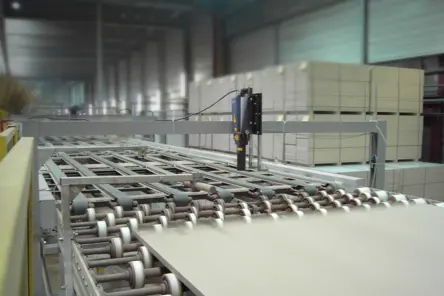

Polytec laser sensor system for precise cut-to-length and speed control of flat wood panels in industrial production. — Precise speed and length measurement on drywall boards

Position tracking on point

LSV laser surface velocimeters measure the length that the measured material travels until a defined event occurs. This measured length determines the corresponding position on the material to be measured, for example when detecting defects in non-destructive material testing (NDT), e.g. on sawn timber and natural products. LSVs also help with exact positioning at regular intervals, such as for printing, labeling, applying lettering or marking damaged areas.

LSV laser sensor precisely tracks position on laminate floor production line, ensuring accurate length and speed monitoring. — Position tracking on laminate floor production by a LSV laser sensor

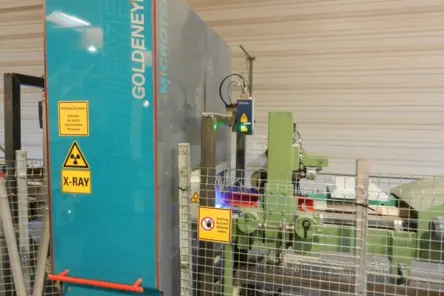

Industrial X-ray test station by Polytec for non-destructive testing and defect detection of wooden beams in manufacturing. — X-ray test station for NDT and defect detection of wooden beams

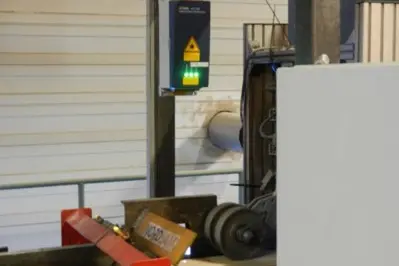

Laser optical sensor mounted above conveyor for precise position tracking and cut-to-length control in sawmill operations — A sawmill using laser optical sensors for exact position tracking

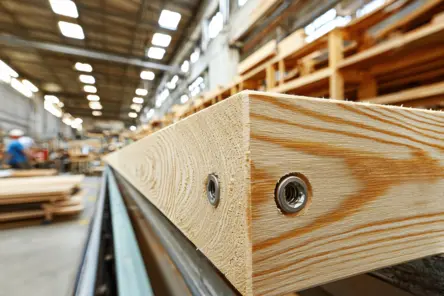

Close-up of prefabricated wood beam with metal fasteners in busy manufacturing facility for precise laser position tracking. — Exact position tracking e.g. for marking, labeling, drill holes for prefabricated houses or defect detection benefit from laser precision

Laser precise cut-to-length control

If a web product is not to be stopped during the cutting process, the cutting device must be moved as a "flying cutting device" for a straight cut with the web product. LSV laser sensors help with speed synchronization between the web material and the cutting device by simultaneously recording the length and speed parameters and outputting them on different interfaces. Regardless of the surface and harsh process environment with dust, dirt and particles, the non-contact measurement method measures with high precision and consistency without repercussions on the material surface.

Thanks to more precise cuts, safety margins on the desired length are reduced, which leads to direct material and cost savings. In addition to encoder output, the flexible interface concept also includes serial interfaces, LAN, Ethernet/IP, Profibus and Profinet as well as digital outputs, e.g. as pre-warning signals and triggers for the cutting process. LSV sensors are used in many different cutting processes, e.g. for wood and wood products, plasterboard, glass wool, rock wool and other building materials.

お問い合わせ

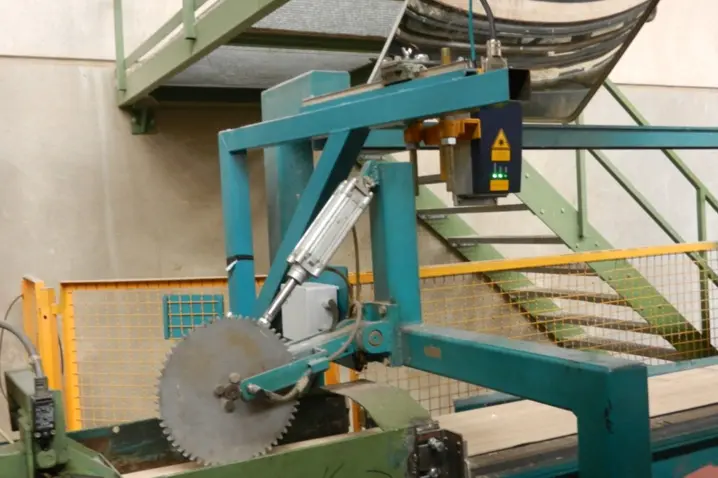

Industrial circular saw machine cutting wood panels on automated conveyor system for precise length measurement and processing. — Cut-to-length on timber using Polytec LSV sensors as saw trigger
