チューブ・パイプ製造における非接触測定

Polytec optical sensors are widely used in tube production, measuring tube / pipe speed, for position tracking or NDT, laser precise cut-to-length control and in general for non-contact length and speed measurement. LSV (short for Laser Surface Velocimeter) monitor length and material on longitudinally welded pipes and also reliably measure the rotational speed of seamless pipes. Avoid process uncertainty and added costs introduced by contact measuring techniques due to slippage, wear, damage to the product or increased maintenance requirements.

Tube / pipe production process control using laser optical sensors
Tube / pipe production process control using laser optical sensors
Steel tube production with LSV laser sensor measuring speed on strech reduction block
Steel tube production with LSV laser sensor measuring speed on strech reduction block
NDT on steel tubes with 2 Polytec laser sensors
NDT on steel tubes with 2 Polytec laser sensors
Non-destructive testing/ inspection of stainless steel tubes using non-contact optical sensors
NDT testing/ inspection of stainless steel tubes using non-contact optical sensors
Combined measurement of rotational and forward speed during pipe wall thickness measurement with integrated laser sensors, measurement system by IMS Messsysteme GmbH
Combined measurement of rotational and forward speed during pipe wall thickness measurement with integrated laser sensors, measurement system by IMS Messsysteme GmbH
Feed speed measurement on red hot stainless steel tubes
Feed speed measurement on red hot stainless steel tubes
ProSpeed LSV graphical user interface speed measurement process control
ProSpeed LSV graphical user interface speed measurement process control
Tube / pipe production process control using laser optical sensors
Tube / pipe production process control using laser optical sensors
Steel tube production with LSV laser sensor measuring speed on strech reduction block
Steel tube production with LSV laser sensor measuring speed on strech reduction block
NDT on steel tubes with 2 Polytec laser sensors
NDT on steel tubes with 2 Polytec laser sensors
Non-destructive testing/ inspection of stainless steel tubes using non-contact optical sensors
NDT testing/ inspection of stainless steel tubes using non-contact optical sensors
Combined measurement of rotational and forward speed during pipe wall thickness measurement with integrated laser sensors, measurement system by IMS Messsysteme GmbH
Combined measurement of rotational and forward speed during pipe wall thickness measurement with integrated laser sensors, measurement system by IMS Messsysteme GmbH
Feed speed measurement on red hot stainless steel tubes
Feed speed measurement on red hot stainless steel tubes
ProSpeed LSV graphical user interface speed measurement process control
ProSpeed LSV graphical user interface speed measurement process control

チューブ＆パイプのプロセス制御に光センサーを使用する理由

ProSpeed® LSV (short for Laser Surface Velocimeters) are the ideal non-contact sensor solution in tube and pipe manufacturing, whenever precise and real-time speed and length data is decisive. Using optical sensors in pipe production leads to reduced costs due to less material scrap and optimized process quality.

ProSpeed® optical sensors are easily integrated replacing less accurate and less reliable encoders or tachometers for tube and pipe production. Savings in reduced downtime and maintenance as well as increased product consistency provide an excellent ROI on Polytec optical sensors.

ProSpeed®センサーによる光学測定のメリット

  • Reliable in-line measurement of length, speed and standstill
  • Optical encoders avoid contact, slippage and wear
  • High flexibility with up to 3 m long stand-off distances
  • Outstanding measurement depth-of-field up to 200 mm compensates varying distances
  • Robust sensor technology for harsh and hot environments (IP66 and IP67); certified mechanical shock and vibration resistance

Strong in service: Onsite, 3yrs warranty, sensor exchange

お問い合わせ
CLICK THROUGH for detailed measurement & control tasks of optical sensors in tube/pipe manufacturing
CLICK THROUGH for detailed measurement & control tasks of optical sensors in tube/pipe manufacturing

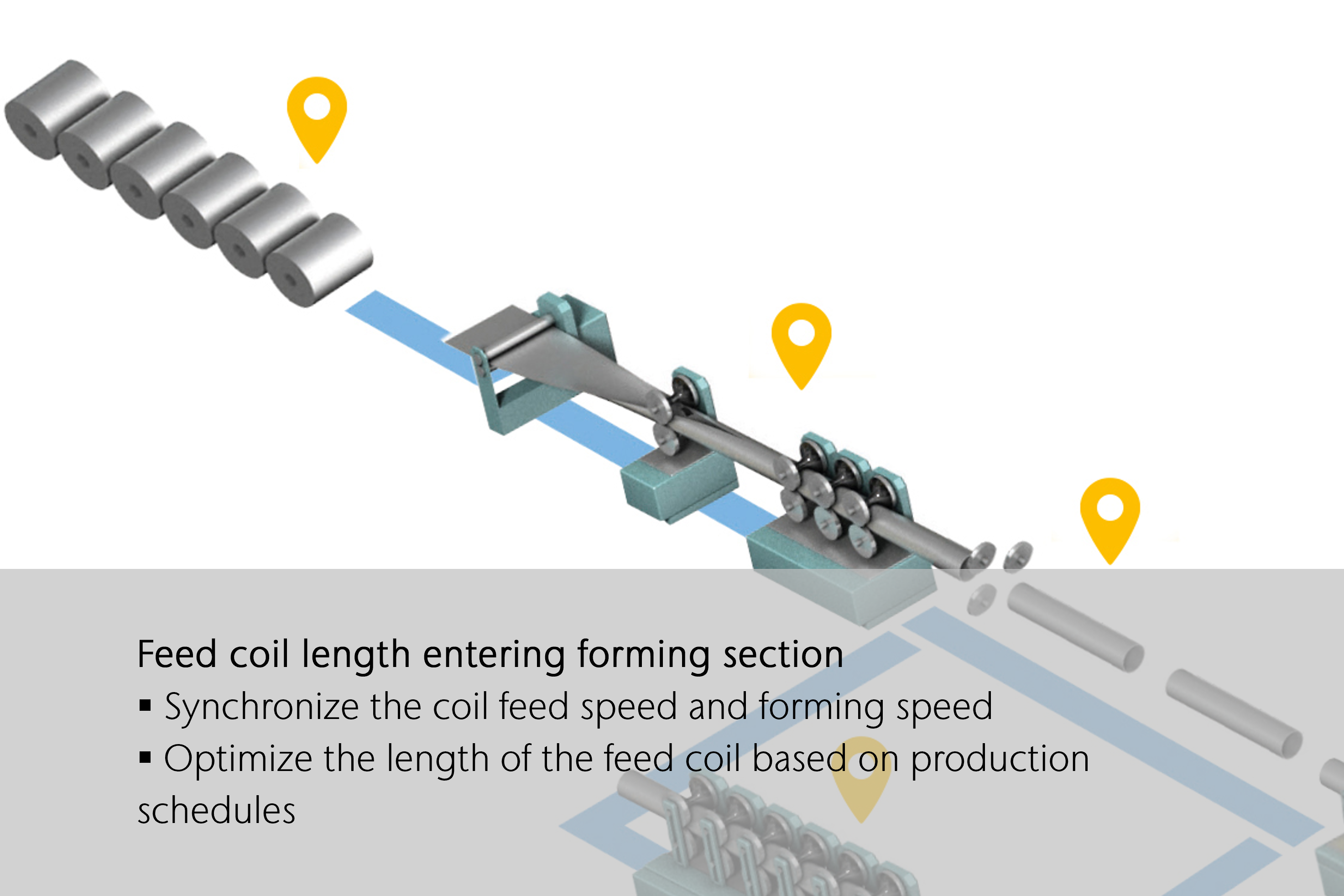

Tube production monitoring feed coil length in forming section
Tube production monitoring feed coil length in forming section

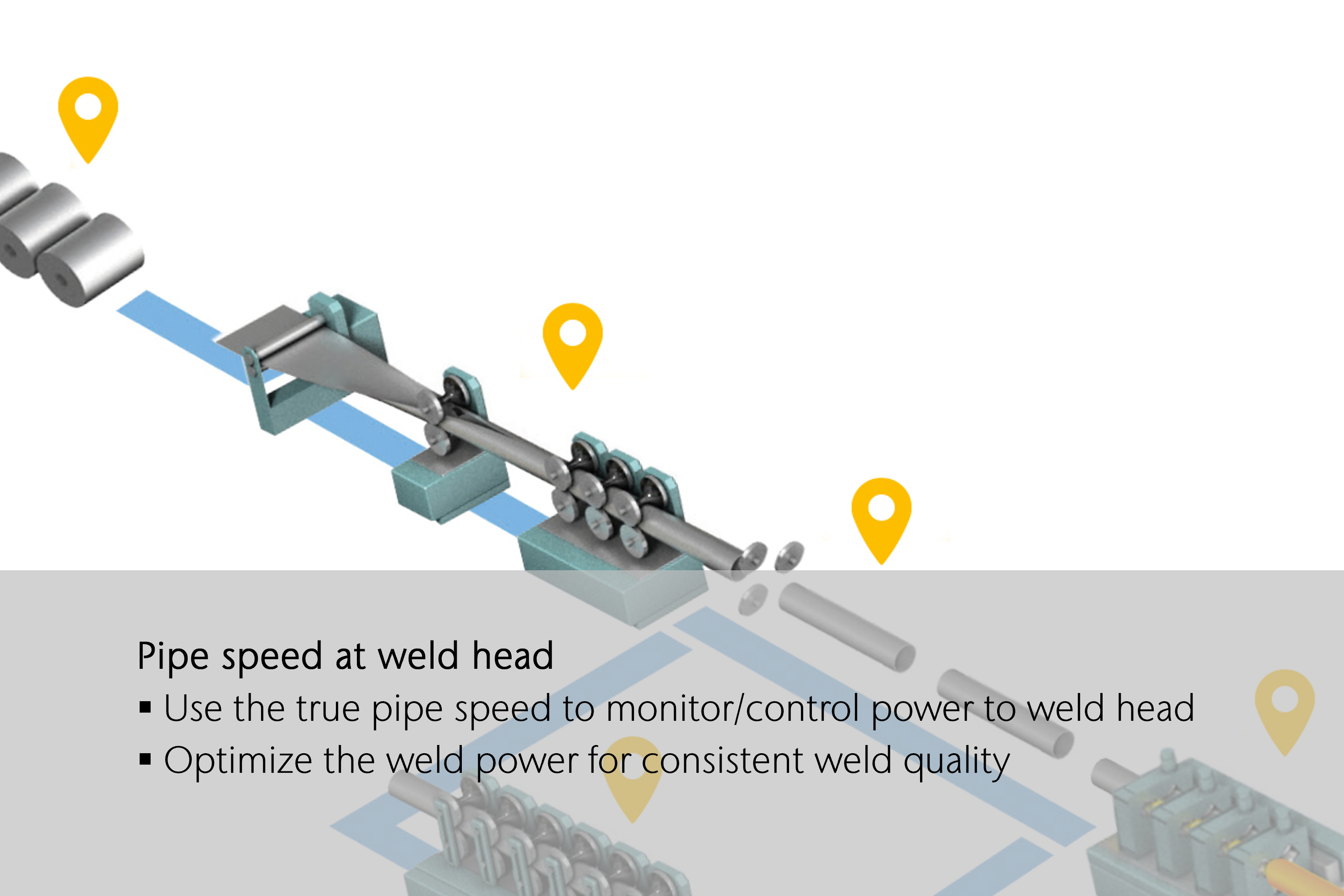

Monitoring pipe speed at the weld head in tube& pipe production
Monitoring pipe speed at the weld head

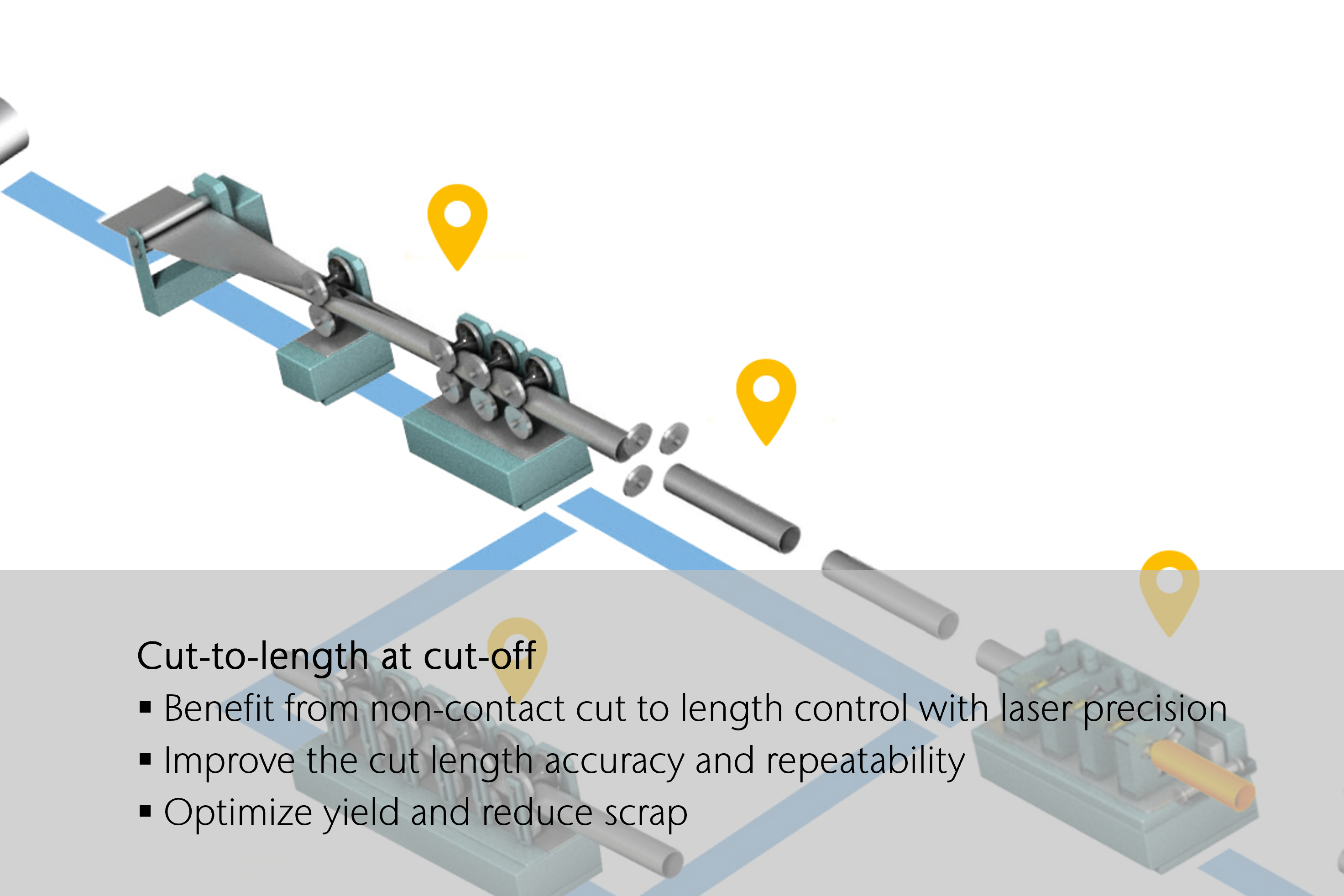

Cut-to-length at the cut-off section optimizing yield, reducing scrap
Cut-to-length at the cut-off section optimizing yield, reducing scrap

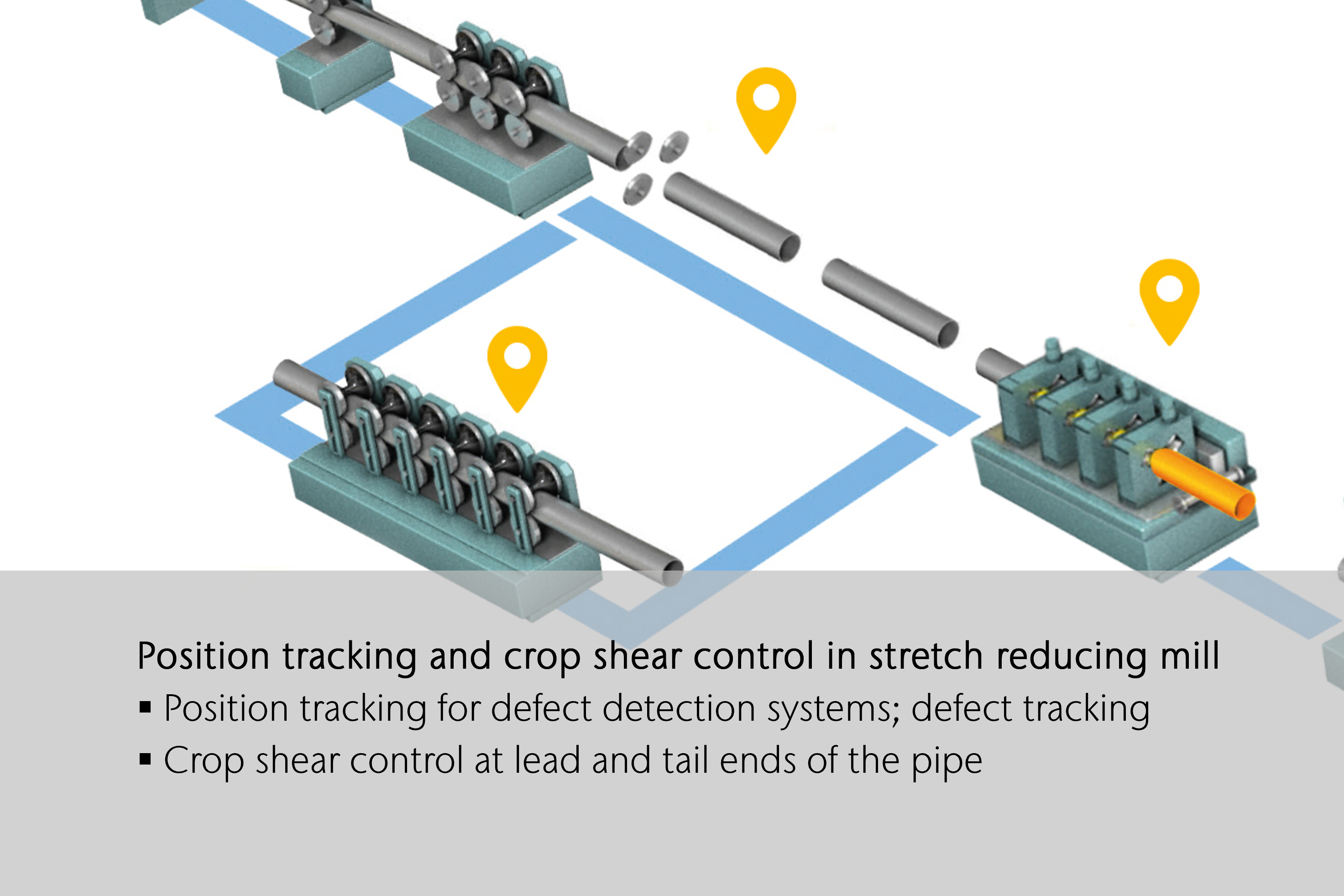

Position tracking and crop shear control in stretch reducing mill
Position tracking and crop shear control in stretch reducing mill

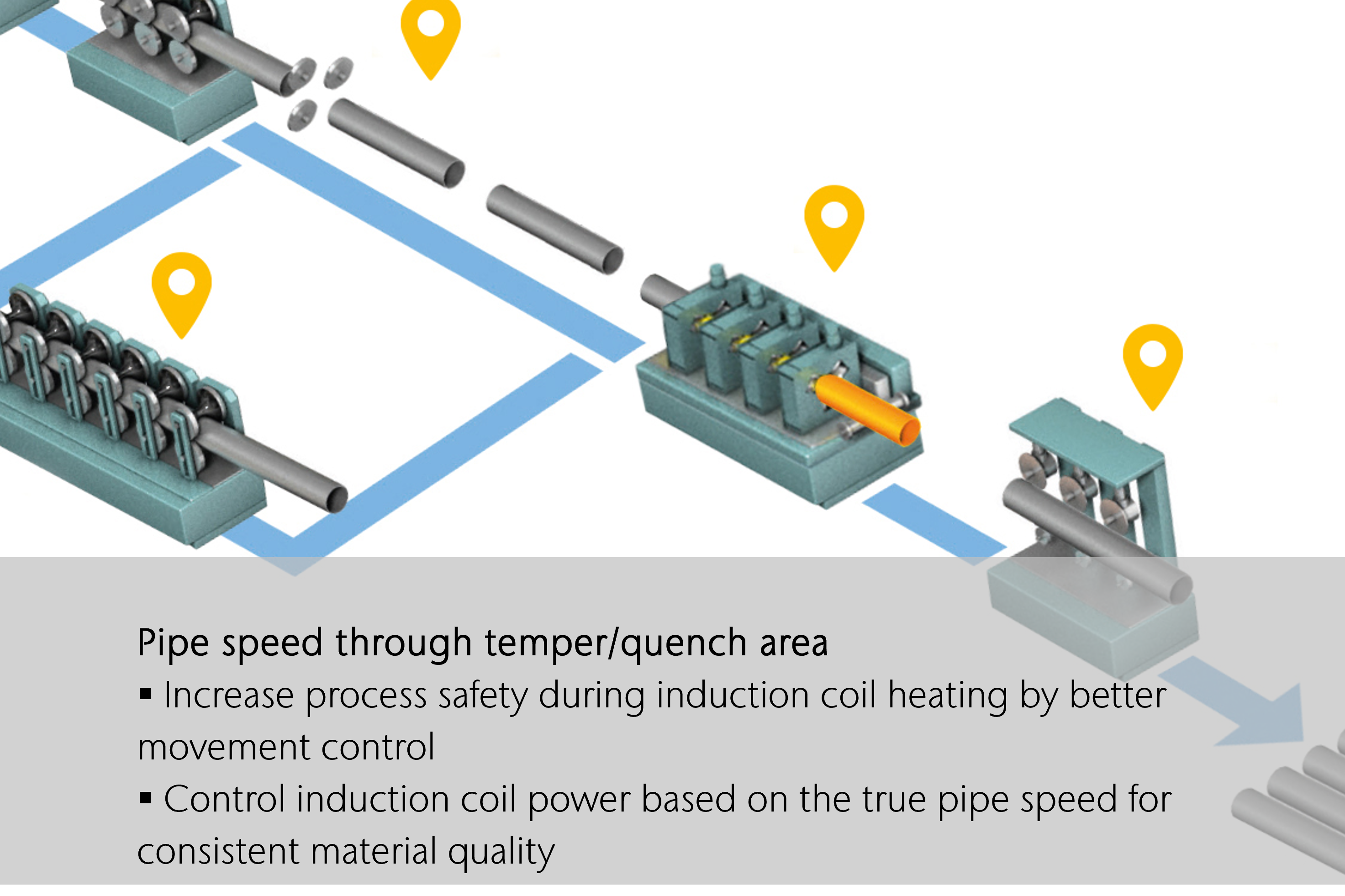

Pipe speed measurement through temper/quench area
Pipe speed measurement through temper/quench area

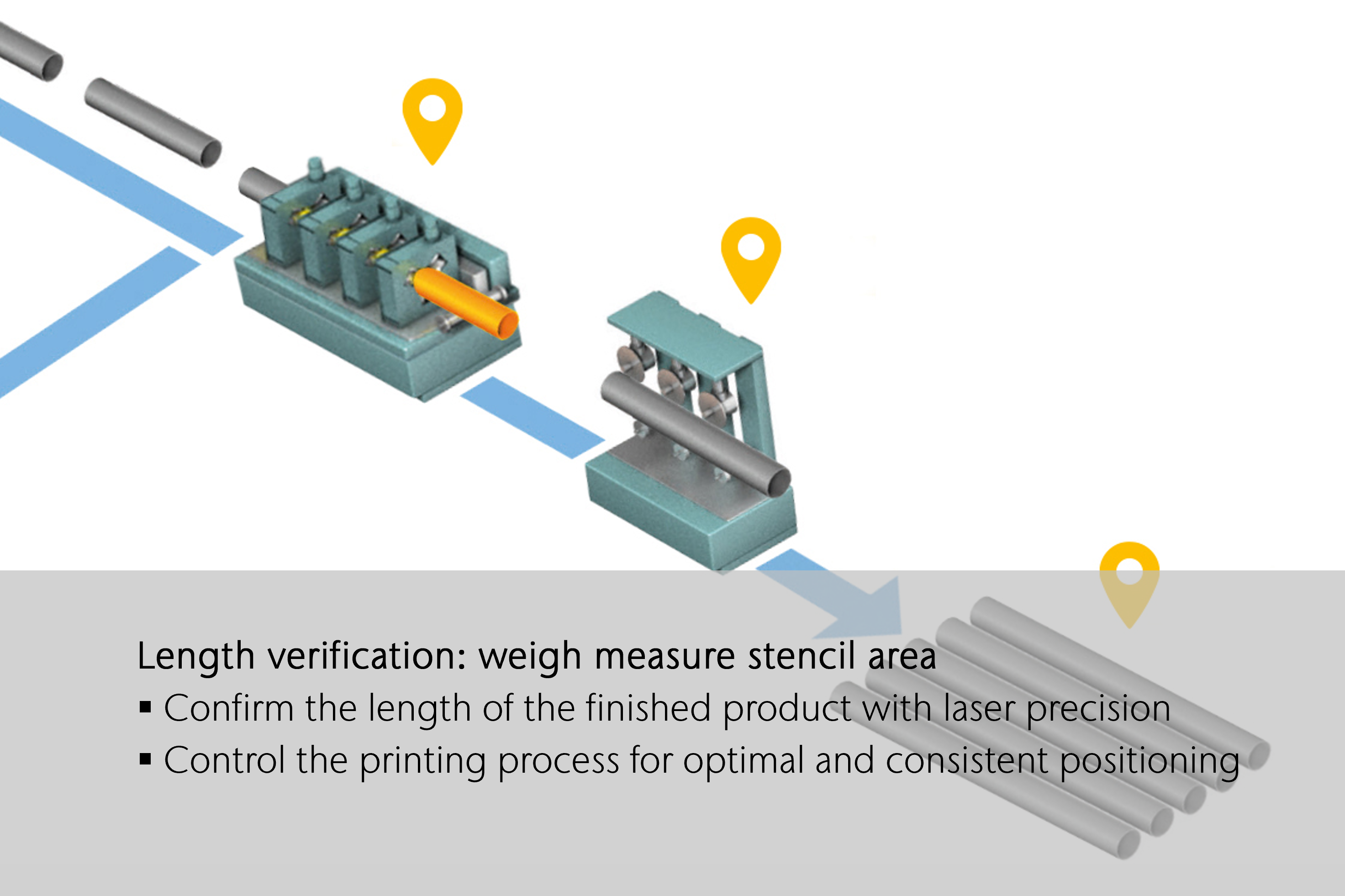

Length verification for weigh measure at the stencil area
Length verification for weigh measure at the stencil area
CLICK THROUGH for detailed measurement & control tasks of optical sensors in tube/pipe manufacturing
CLICK THROUGH for detailed measurement & control tasks of optical sensors in tube/pipe manufacturing
Tube production monitoring feed coil length in forming section
Tube production monitoring feed coil length in forming section
Monitoring pipe speed at the weld head in tube& pipe production
Monitoring pipe speed at the weld head
Cut-to-length at the cut-off section optimizing yield, reducing scrap
Cut-to-length at the cut-off section optimizing yield, reducing scrap
Position tracking and crop shear control in stretch reducing mill
Position tracking and crop shear control in stretch reducing mill
Pipe speed measurement through temper/quench area
Pipe speed measurement through temper/quench area
Length verification for weigh measure at the stencil area
Length verification for weigh measure at the stencil area

Applications of optical sensors in steel tube processes

There are many measurement applications for Polytec LSV laser sensors in the production of (stainless) steel pipes and related tubes:

  1. Monitoring and synchronizing the coil feed speed in the forming section
  2. Pipe speed measurement in welding
  3. Superior cut-to-length control directly reduces scrap and optimizes yield
  4. Position tracking and crop shear control in the stretch reducing mill
  5. Precises pipe speed monitoring through the temper / quench area

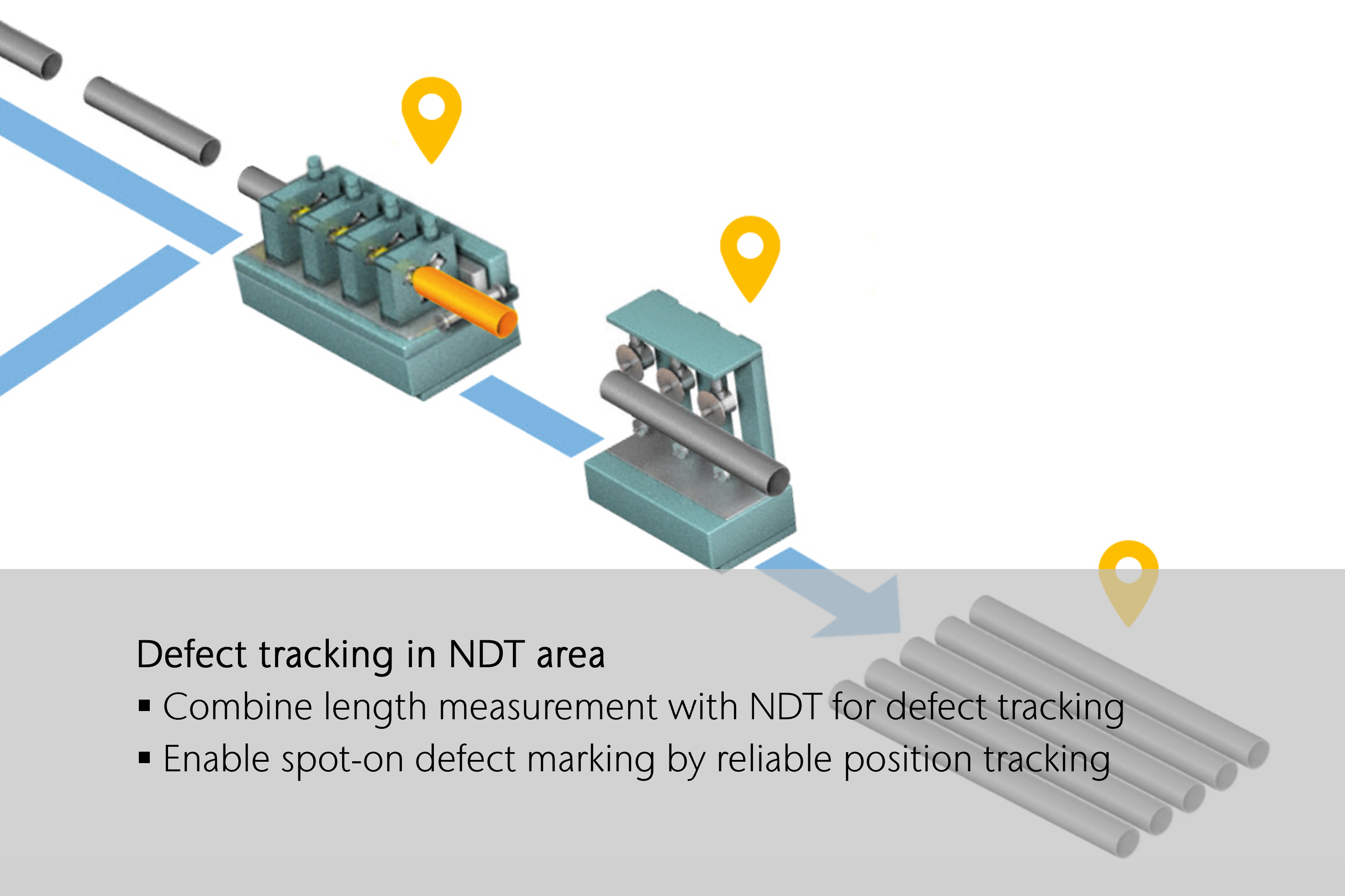

  6. Defect tracking in NDT (Non-desctructive Testing)
  7. Final length control and length verification at the stencil area.


Where do you measure length or speed in your tube & pipe process?

Request an onsite proof-of-concept

デモのご依頼

Dear visitor, in order to be able to watch our videos please accept the cookies. All information about the usage of cookies can be found in our privacy policy

ビデオ その仕組み 信頼性の高いプロセス制御のためのレーザー精度

ProSpeed® as the optical alternative sensor solution compared to encoders or encoder wheels use the laser Doppler effect to evaluate the laser light scattered back from the moving object. Two laser beams super-imposed on the surface generate an interference pattern of bright and dark fringes. As the surface moves through the fringe pattern, the intensity of the light scattered back modulates in frequency. This modulation frequency measured by the photo receiver of the sensor system is directly proportional to the surface velocity.

LSV optical sensors overcome challenges in NDT setup for 100% testing of tubes, measuring both translatory speed and rotational speed
LSV optical sensors overcome challenges in NDT setup for 100% testing of tubes, measuring both translatory speed and rotational speed

シームレス鋼管の非破壊検査

During NDT the tube should be tested to 100% regarding e.g. metallurgical properties and length. The probe conducting this test is stationary, hence the tube is not just pushed forward, but it also rotates on a spiral path. Any flaw detected needs to be described in its longitudinal and rotational position. Here, the non-contact LSV laser sensor comes into play: Being insensitive to out-of-plane motions, it is the preferred optical solution for such setups. One unit keeps track of the longitudinal progress while a second unit monitors the rotation. Specialized accessories for such demanding application master electromagnetic inspection (E.M.I.), magnetic powder inspection (MPI), and other test methods.

Enhanced connectivity and interface concept of ProSpeed® LSV optical length and speed sensors
Advanced electronics, faster signal response for real-time process control and enhanced connectivity for automation with new ProSpeed® encoders

PROFINETまたはEthernet/IPを使用したセンサー統合

The latest ProSpeed® LSV sensor generation comes in a rugged, compact design featuring integrated optics and advanced electronics, providing faster signal response, and more stable signal level for real-time process control. The extended connectivity concept enables a smooth sensor integration into any production line. With a wide range of accessories like beam deflection, air purge or thermo-protective housing - and with the personal support of our PolyXperts team, Polytec offers custom sensor solutions for tube & pipe applications.

For further info regarding sensor integration, read the step-by-step application guides on how to easily integrate ProSpeed® laser encoders with PROFINET or EtherNet/IP. Have a look at the sensor specifications, sign up or just contact us!

Process automation using EtherNet/IP for LSV sensor integration
Process automation using EtherNet/IP for LSV sensor integration

Guide (login)

Process automation using fieldbus / PROFINET with LSV laser sensors
Process automation using fieldbus / PROFINET with LSV laser sensors

Guide (login)

ProSpeed LSV-2100
ProSpeed LSV-2100

Datasheet (login)

ProSpeed LSV-1100
ProSpeed LSV-1100

Datasheet (login)

Contact us for custom encoder/ sensor configuration
