使车辆更安静

        NVH(噪声、振动、粗糙度)分析是指汽车在设计开发过程中,通过优化噪声和振动特性而提高现有车型乘坐舒适性的研究。NVH分析或NVH测试方法的目标是优化噪声和声学特性,同时降低车辆及其部件的不良振动,其被应用于汽车设计、车身设计、内饰设计等多方面。NVH测试是减少车辆及其部件的不必要的轰鸣声、嗡嗡声、啸叫声的关键。

非接触式进行NVH测试

       轰鸣声、嗡嗡声、啸叫声等是车辆面临的典型声学问题,尤其体现在轻量化汽车中。它们是造成用户不良体验的来源,因此需要消除。术语 NVH(噪声、振动和声振粗糙度)是用于指能提高驾驶员和乘客声学舒适性的所有措施的总称。

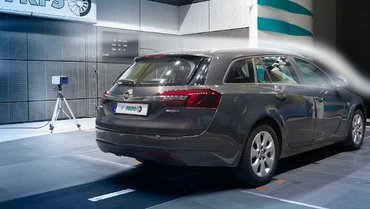

       开发出安静、低振动的产品,需要将模型和测试任务结合在一起。Polytec 扫描式激光测振仪可以高空间分辨率定量地显示声辐射源。自动扫描过程使得阻尼材料(声音包)的逆面板贡献测量和鉴定变得非常容易。

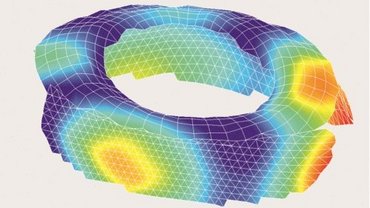

       为此,还可使用扫描式激光测振仪详细地检查声音激励的来源,识别结构传声路径和引起的振型。NVH 工程师们可通过结构的3D可视化振型,甚至能在投入生产之前快速提出解决问题的办法。

NVH acoustics testing using the e-line method

Squeak and rattle (S&R) refers to a sub group of NVH acoustics, testing for undesirable squeaking and rattling noises as one important factor for customer satisfaction. S&R is a non-linear phenomenon that is heavily dependent on the relative displacements of neighboring components.

In NVH acoustics testing, the E-line method focuses on calculating and evaluating the relative displacement between two automotive parts, which is the main cause for S&R, chafing and abrasive wear. NVH sensor solutions from Polytec help perform NVH measurements in the time domain and in a local coordinate system along the E-line, thus capturing the true displacement in the rattle direction and in the squeak plane.

Dear visitor, in order to be able to watch our videos please accept the cookies. All information about the usage of cookies can be found in our privacy policy

Change cookie settings

NVH之车门碰撞测试

       要问人们进入新车车厢后的第一印象,不外乎两点:气味和关门声音。因此,车门碰撞测试已成为NHV分析的一个必要组成部分,以优化司乘舒适性和提升用户满意度。使用德国Polytec公司的全场扫描式激光测振仪是结构噪声测试的不二之选。多点式激光测振仪采用非接触式测试方法,对被测表面无任何附加质量,同步测试通道多达48个,尤其适用于薄板金属板的振动测量。

电动汽车 (EV) 的NVH – 振动测试和分析

轮毂电机在外形方面表现出优势,但由于其安装位置的原因,也为NVH方面也带来了新的挑战。马格德堡奥托·冯·格里克大学成立了一个专门小组,使用光学振动测量技术来分析外转子电机的振动情况,以优化轮毂电机的声学特性。了解更多请登录下载论文全文。
