NVH and how to design quiet vehicles

NVH (noise, vibration, harshness) describes the analysis of the influences and sources of noise and vibration behavior in vehicle design and engineering. The objective of NVH analysis or NVH test methods is to optimize noise and acoustics in conjunction with reduced vibration behavior of vehicles and vehicle components. NVH is used for vehicle design, car body design, interior design and more. NVH testing is the crucial basis for reducing unwanted squeaking or rattling noises and thus a quality feature and acoustic signature of any component or complete vehicle.

NVH testing without contact and mass-loading

Droning, humming, squeaking and rattling are typical acoustic problems found in vehicles – and particularly in lightweight construction. They are a source of irritation to end customers and consequently need to be eliminated. The term NVH (noise, vibration and harshness) is an umbrella term used to refer to all those measures that enhance acoustic comfort for drivers and passengers alike. Developing quiet, low-vibration products is a joint simulation and testing task. Polytec’s Scanning Vibrometers allow you to unveil sources of sound radiation quantitatively and with high spatial resolution. Inverse panel contribution measurements and qualification of damping materials (sound package) are made a great deal easier with the automatic scanning process.

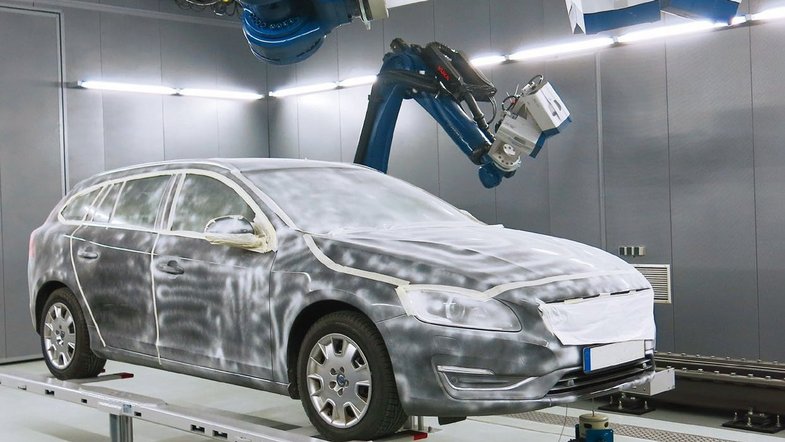

For precise and reliable examination of the source of sound and vibration, use PSV Scanning Vibrometers from Polytec and identify the structure-borne sound transmission paths and the causative deflection shape. The 3D visualization of the operational deflection shapes helps the NVH engineer to quickly come up with ideas to solve the problem – even just before production starts.

Dear visitor, in order to be able to watch our videos please accept the cookies. All information about the usage of cookies can be found in our privacy policy

Change cookie settings

NVH for defined acoustics in door slam testing

When asking people about their first impression of a new car when entering the passenger cabin, it's either the smell or its sound when closing the door. Thus, the door slam test has become an integral part of NHV analysis for optimizing comfort as well as the perception of quality. In order to measure structural borne noise, using full-field vibration measurement for determining the vibrational velocity in the time domain are of significant value. The Multipoint Vibrometer allows measuring with up to 48 locations synchronously, providing vibration measurement data without any contact or mass-loading influences especially on thin sheet metal panels.
