具有革新意义的全场扫描振动测试技术

Polytec三维扫描式激光测振仪是目前世界上在研发过程中用于噪声和振动测量的最先进设备。系统使用三个独立的扫描头,获取所有方向的全部振动信息。PSV QTec 3D已广泛用于确定NVH、声学、结构动力学、超声学和有限元验证的工作变形和特征模态。

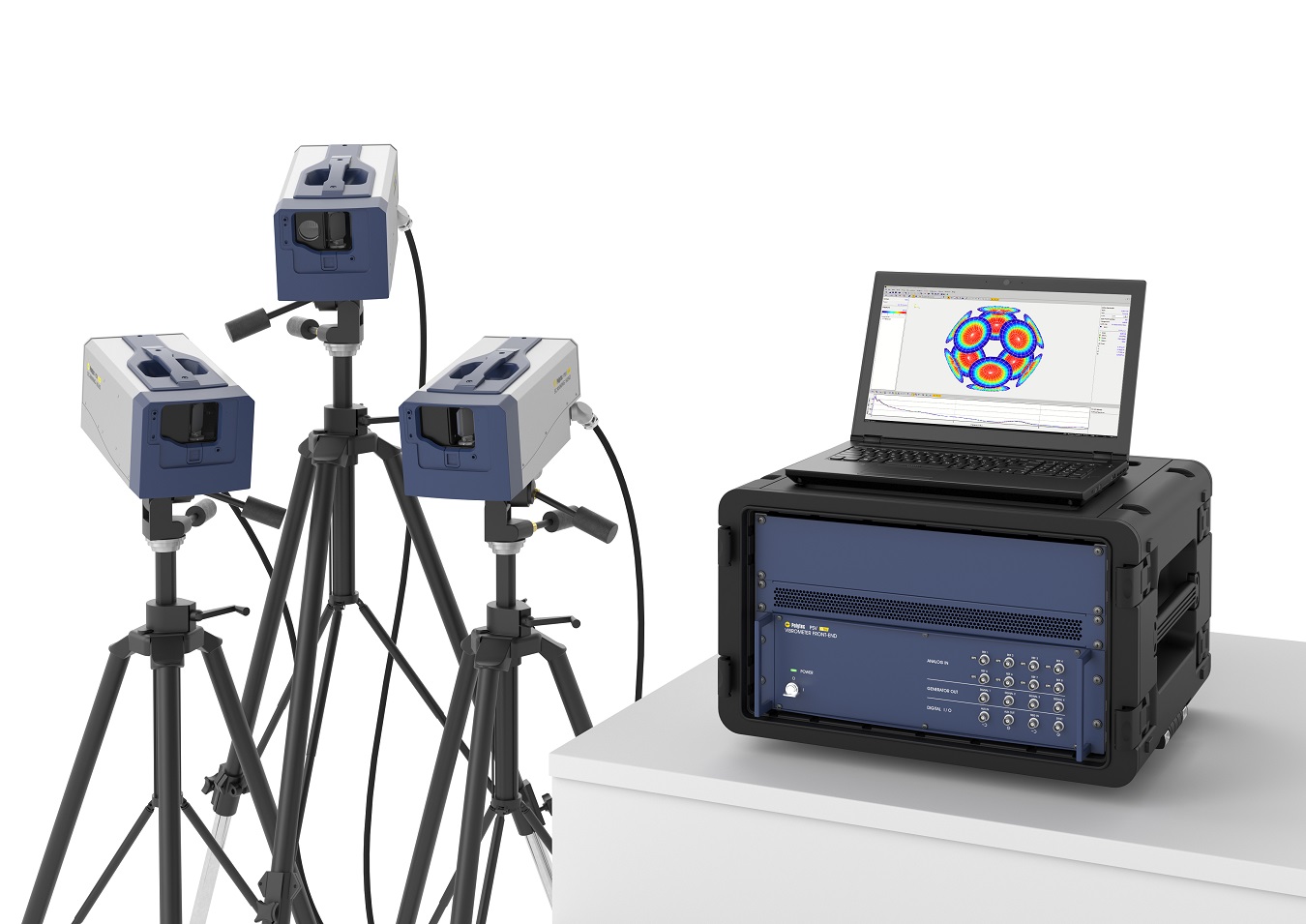

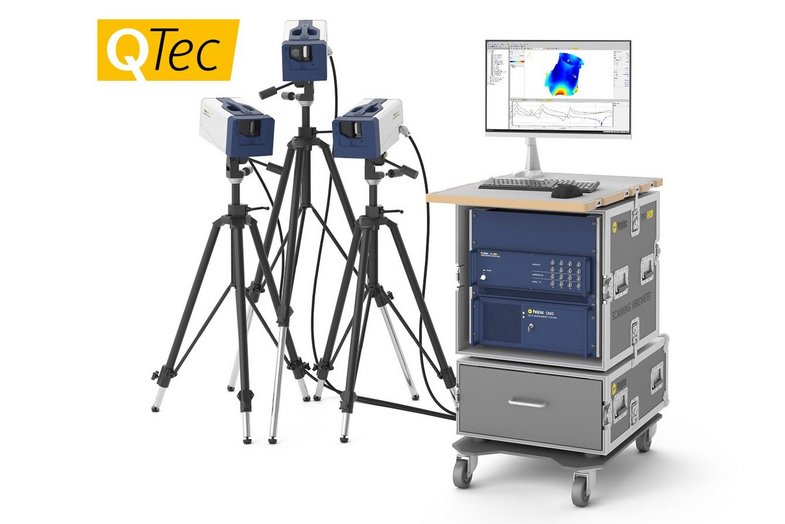

PSV QTec 3D的测试频率高达25 MHz,可用于无损评估(NDE)研究,还能完美集成至CAE环境中,提供3D形貌数据、模态分析和自动化接口。PSV QTec 三维扫描式激光测振仪分两种:紧凑笔记本型和台式工控机型。

亮点

  • 类有限元空间分辨率的非接触式全场振动测试
  • 测试时间短,最佳信噪比
  • 在工程表面上的速度最高可达10倍
  • 易于设置的机器视觉工具
  • 专业的CAE接口用于模型验证
  • 先进的形貌扫描单元确保测试数据真实可靠

模态分析功能,MIMO功能,8输入通道

  • 为您的应用提供开放式接口
  • 分紧凑式笔记本型和台式工控机型

QTec多通道采集技术,更快获取结果

       专利的QTec®技术利用外差式多路径干涉仪的概念增强了基于标准红外(SWIR)激光的测振仪。它为所有表面的高保真测量提供了最高的光学灵敏度,这大大减少了测试时间--即使在黑暗、生物、旋转或移动的物体上。这种安全的激光技术非常适合挑战性的应用,也适用于遥远的目标。QTec®使振动测量比以往任何时候都更快、更容易、更可靠--获得最稳健、明确的结果。

Learn more

扫描测振仪的配置和升级选项

       有了合适的配件,你可以测量最小的部件,对噪声进行定位和触发,甚至掌握复杂的几何形状和测量设置,在艰难的测试台条件或风洞中进行测量。机器视觉工具简化了测试设置,专业CAE接口支持FE模型验证,允许直接导入几何文件。先进的几何学处理使得有意义的结果展示成为可能,使您对振动结构、其动态行为和声学有精确的了解。
