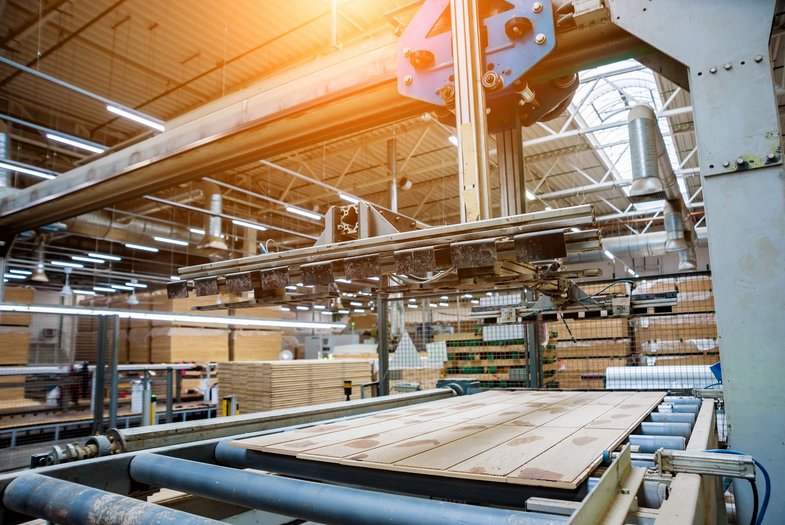

Contrôle précis de la longueur et de la vitesse pour le bois et les matériaux de construction

Dans l'industrie du bois et des matériaux de construction, il est essentiel de contrôler la longueur et la vitesse avec précision et fiabilité pour maintenir des tolérances de fabrication strictes et l'efficacité du processus. De légères déviations peuvent déjà entraîner des coûts supplémentaires.

Les ProSpeed® LSV sont des capteurs optiques laser qui mesurent la longueur et la vitesse avec une précision laser. Ils fournissent des données de mesure précises aux fabricants et aux constructeurs de machines pour le bois et les matériaux de construction, tels que…

Bénéficier des capteurs optiques ProSpeed

Non-contact measurement, without slippage & wear

Laser measurement increases accuracy, quality & output

Works on all surfaces without affecting the product surface

3-year warranty & application support

Large depth-of-field compensates vibrations

Reliable performance in dusty, dirty environment

Solutions de coupe à longueur, la synchronisation de la vitesse ou le suivi de la position ?

Mesure de la longueur sans glissement

LSV promise reliable length length measurement based on following the speed curve over throughput time. They automatically detect when material is present (material detection mode) and automatically trigger or stop the measurement procedure. LSV Laser Surface Velocimeters are the preferred solution for precise length measurement when rolling up web material and checking cut-to-size pieces, e.g. for fiber cement, plasterboard, wood and wood products, glass wool, rock wool or roofing materials.

The flexible interface concept of latest generation ProSpeed sensors feature encoder output, serial interface, LAN, Ethernet/IP, Profibus and Profinet. Optionally integrated light barriers and, for several barriers, logically link them, for example, to control the length measurement using two trigger inputs thus increasing the accuracy.


La vitesse d'avance, un paramètre clé

Measuring the exact and real speed is the fundament for any process control and optimization - whether for cut-to-length, length measurement or verification, or speed synchronization. With the non-contact measurement method, ProSpeed® laser sensors avoid measuring uncertainty caused by slippage and wear. LSV sensors are established non-contact encoders for determining the dwell time in coating systems, for controlling cutting devices in cut-to-length processes, such as wooden panels, boards and beams as well as in the manufacture of plasterboards, glass or rock wool.

Suivi de la position sur le point

LSV laser surface velocimeters measure the length that the measured material travels until a defined event occurs. This measured length determines the corresponding position on the material to be measured, for example when detecting defects in non-destructive material testing (NDT), e.g. on sawn timber and natural products. LSVs also help with exact positioning at regular intervals, such as for printing, labeling, applying lettering or marking damaged areas.

Contrôle précis de la longueur de coupe au laser

If a web product is not to be stopped during the cutting process, the cutting device must be moved as a "flying cutting device" for a straight cut with the web product. LSV laser sensors help with speed synchronization between the web material and the cutting device by simultaneously recording the length and speed parameters and outputting them on different interfaces. Regardless of the surface and harsh process environment with dust, dirt and particles, the non-contact measurement method measures with high precision and consistency without repercussions on the material surface.

Thanks to more precise cuts, safety margins on the desired length are reduced, which leads to direct material and cost savings. In addition to encoder output, the flexible interface concept also includes serial interfaces, LAN, Ethernet/IP, Profibus and Profinet as well as digital outputs, e.g. as pre-warning signals and triggers for the cutting process. LSV sensors are used in many different cutting processes, e.g. for wood and wood products, plasterboard, glass wool, rock wool and other building materials.
