VibroFlex- レーザ計測に柔軟性を与える新しいレーザドップラ振動計

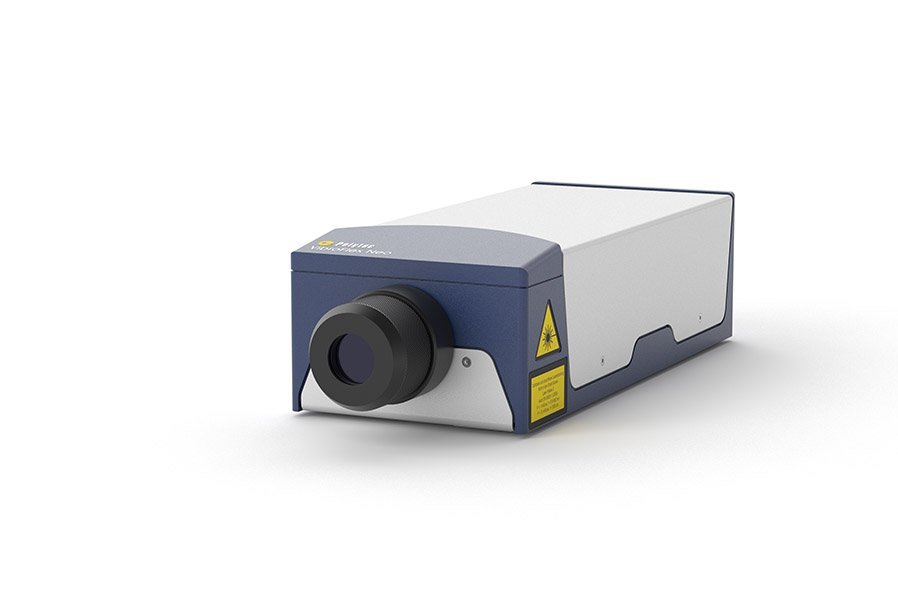

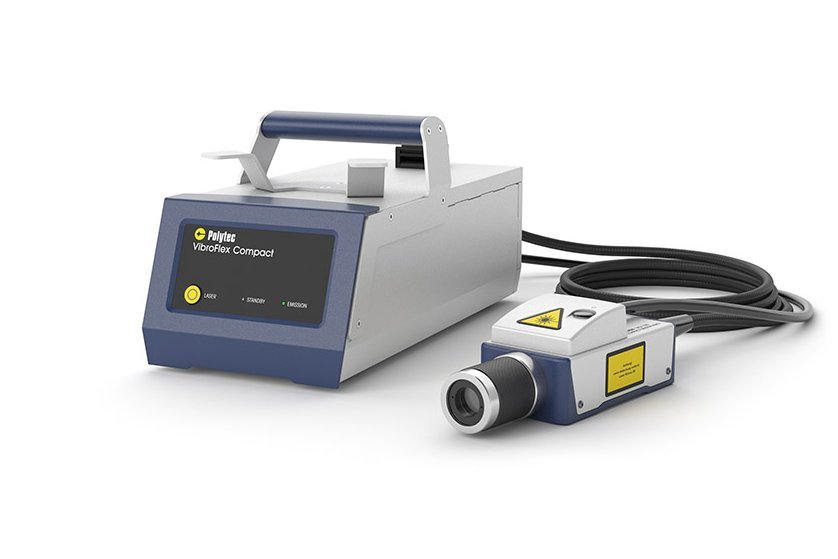

レーザドップラ振動計 VibroFlex は、アプリケーションに合わせてセンサヘッドを選択できるモジュールタイプで、最大 24 MHz の振動測定が可能です。センサヘッドには、微小な構造物の振動を測定するために顕微鏡対物レンズが装着できるモデルや、機械やモータなどの大型構造物を測定する標準モデル、さらに複雑で狭い構造物の測定に適したファイバ型モデル、そしてラインナップ内で最高のSNRを実現する特許取得済みの新しいQTecマルチパス干渉計センサヘッドがあります。レーザドップラ振動計 VibroFlex は、振動/音響の研究開発スピード、あるいは製品検査の信頼性の向上に貢献するテスティングツールであり、ものづくりにおいてコスト削減と製品自体の品質向上の一手を担っています。

Highlights

  • High-performance non-contact vibration measurement solution
  • Flexible, modular sensor solution that adapts to your needs
  • Sub-pm displacement resolution and vibration velocities up to 30 m/s
  • Configurable bandwidth from DC to 24 MHz with highest time resolution

Patented QTec® multi-path interferometry for best SNR

  • Compact sensor head with integrated camera for precise laser positioning and sample monitoring
  • SHM and condition monitoring from more than 300 m distance
  • Differential fiber optic sensor head for separating relative motions
  • Reliable measurement even on challenging surfaces (dark, oily, shiny, hot)
  • Digital data interface for convenient setup and best SNR

研究、製品開発および製品検査における非接触振動測定

Resolve from DC to 24 MHz bandwidth, sub-picometer displacements and up to 30 m/s fast movements. Easily access confined spaces using fiber-optics and analyze relative motions with differential optics. Use an integrated video camera for precise laser positioning. Measure vibrations reliably and with laser precision on all surfaces – no matter if dark, oily, shiny or (red) hot and from more than 300 m distance.

1台のフロントエンドに対して複数のセンサヘッド

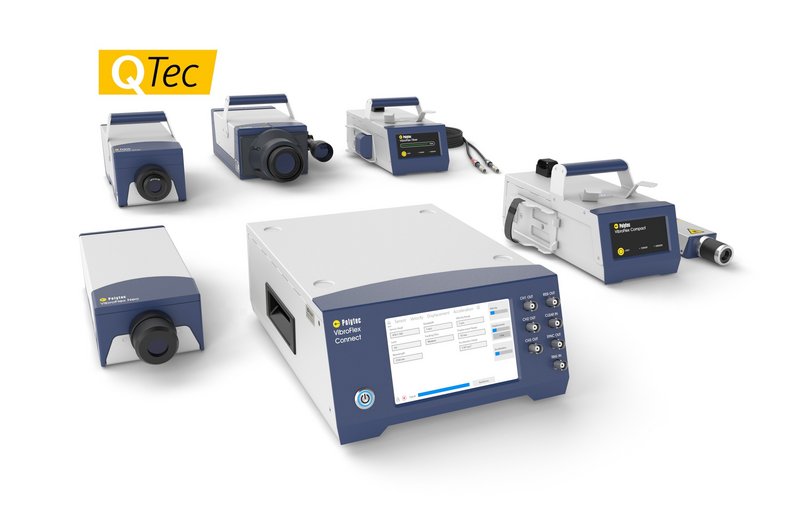

VibroFlexはモジュール式です。7インチマルチタッチディスプレイ搭載のVibroFlexフロントエンドConnectは、VibroFlexシリーズの全センサヘッドと構成可能です。 さらにConnectは、変位、速度、加速度をアナログ・デジタルの両方で出力できます。(デジタルインタフェースはオプションのVibroLink(イーサネット)で実現します)

センサタイプに関わらず、VibroFlexは計測手順とデータ取得の操作性が一貫しており、レーザ振動計測に柔軟性を与えます。

Patented QTec® powerful on all surfaces

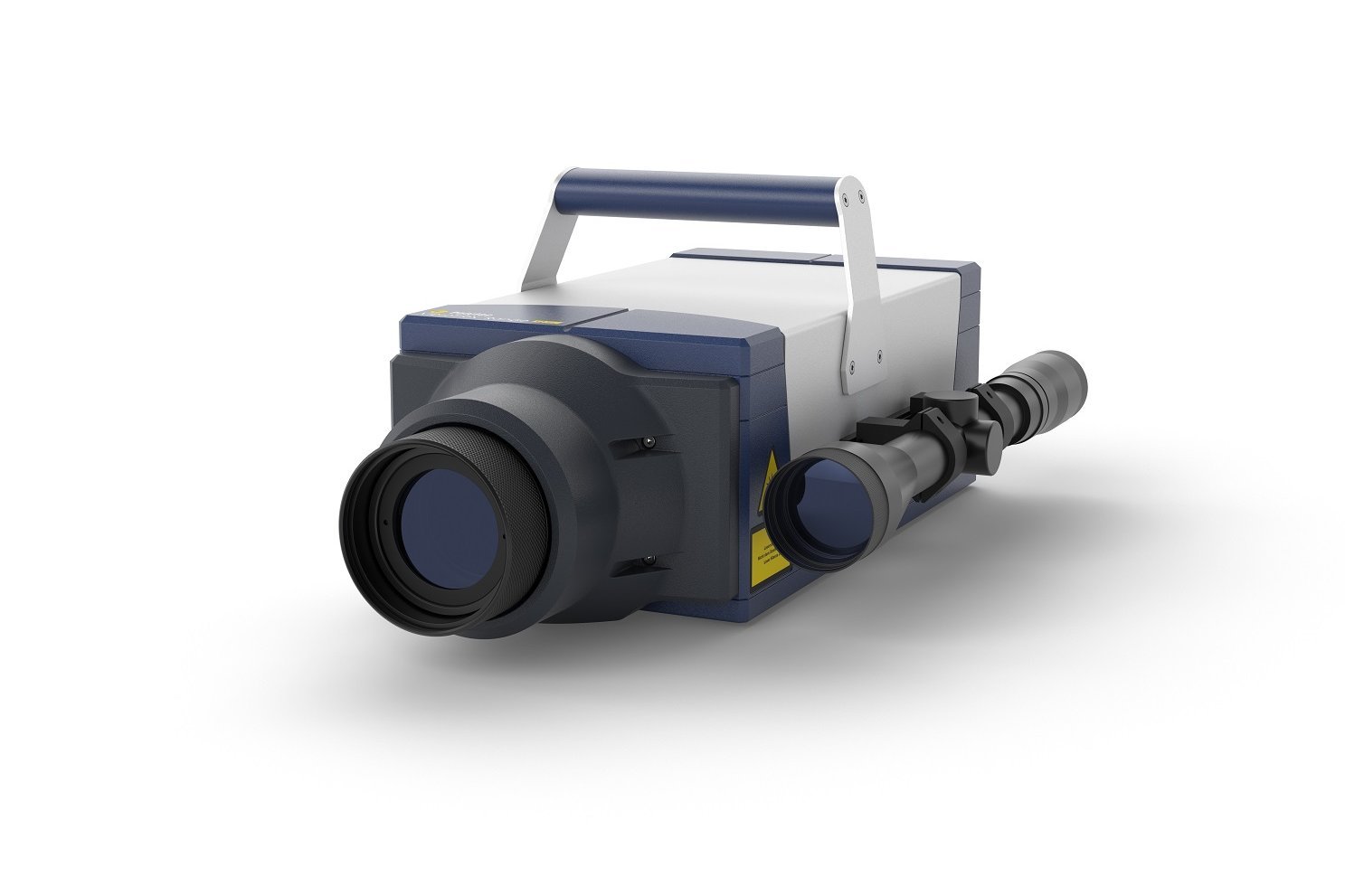

Always stable signal, 20 dB better SNR for faster and clearer results without post-processing: QTec® laser vibrometers use multi-path interferometry and reception diversity for recombining the best readings from different perspectives for faster and more consistent results  while avoiding the need for averaging. This safe laser technology is perfect for challenging applications such as NDT, biomedical, long distance displacement measurements, quasi-static displacement measurement and shaker feedback control. The patented and highly innovative technology QTec® makes vibration measurements faster, easier and more reliable than ever - for the most robust, unambiguous results.

Learn more

世の中は振動であふれている! ―さまざまな振動もポリテックのVibroFlex 1台で測定できます―

Dear visitor, in order to be able to watch our videos please accept the cookies. All information about the usage of cookies can be found in our privacy policy

Change cookie settings

難易度の高い表面でも最高のS/N比を実現

特許取得済みのQTecレーザ干渉計技術は、優れた測定データ品質と最高のSNR(信号対雑音比)を提供します。QTecは、ダイナミクス、音響、振動挙動を測定する際、特に困難な工学的対象物の表面で威力を発揮します。QTecのマルチパス干渉法は、ブロードバンドノイズや不要なドロップアウトの原因を回避し、高速で移動または回転するサンプルオブジェクトの振動分析において、常に安定した信号を確保することができます。
