Improved quality in hydrogen tanks, blowers, pumps & compressors
In fuel cell testing, material research of hydrogen tanks or of components such as injection valves, compressors (air system), blowers or pumps on the cooling side, Polytec Laser Doppler vibrometers assist in thourough vibration analysis. Polytec’s range of non-contact vibration measurement sensors help validate the FE model, visualize the operational deflection shape (ODS) of both the single component or assembly, can identify components with highest contribution to fuel cell vibration and thus noise or for NVH testing (noise, vibration and harshness).
Measure and validate your H2 components
Why laser vibrometers for H2 component testing
- Non-contact: Non-reactive, even in hard-to-reach areas
- Auto focus: Reliable measurement results at short and long distances
- Reliable: Unaffected by ambient noise
- High precision: Valid data detecting even small differences
Hydrogen Fuel Cell Vehicles (HFCV) on the rise
However, one major problem that electric vehicles have to overcome is the limited range one can drive before the need to recharge the BEV batteries. This is not only a problem with passenger BEV’s but also even more with commercial vehicles such as Trucks and Buses where a long travel range is needed.
The automotive industry is looking for solutions how to extend the range of carbon neutral vehicles. In contrast to BEV the hydrogen-based fuel cell (FC) technology overcomes the range problem. This is because larger hydrogen fuel tanks can store more energy and on top, the refueling process is faster compared to a battery recharge. Thus, countries not only in Asia are heavily funding the fuel cell technology and fuel cell infrastructure. FC technology acceptance especially in larger commercial vehicles such as trucks and buses is growing.
Quiet & reliable fuel cells: NVH testing of hydrogen technology
To become fully accepted in vehicles the fuel cell technology has to be reliable, safe and comfortable. Directly related to comfort is the noise level of the vehicle which should be as low as possible. Thus, vehicle manufacturers need to ensure that each system component used in the vehicle is not dominating the overall noise level by tonal noise.
Test H2 components on a broad frequency bandwidth!
Related products
レーザドップラ振動計 IVS-500
レーザドップラ振動計 IVS-500は、品質管理の用途に最適な非接触振動計です。測定周波数帯域は最大100 kHzであり、インライン製品検査やEOL試験に最適で、すばやく高精度な振動音響品質検査や、構造物に起因するノイズ分析、信頼性の高い合否判定が可能です。堅牢でコンパクトな設計であり、既存のプロセス制御システムに容易に統合でき、アプリケーションに合わせた短時間の測定を実現できます。レーザなので接触式センサに見られるセンサ自身の摩耗がなく、マイクロフォンによる音響検査時に必要な外部音響を遮断するための防音機構も必要ありません。
スキャニング振動計 PSV QTec
PSV QTec スキャニング振動計は、フルフィールド振動マッピングにおける測定感度の基準を確立します！特許取得済みのQTec®テクノロジーは、赤外（SWIR）レーザーに基づくマルチパス干渉計を使用し、DCから25MHzまでのあらゆる表面で高忠実度の測定を可能にする。PSV QTec は、特に暗い場所や生物、回転、移動する物体などの試験時間を大幅に短縮し、NVH、音響、構造ダイナミクス、超音波、FEM バリデーション、NDT において、実稼働振動形状や固有振動モードを決定することができます。
その他のアプリケーション
- 共振試験

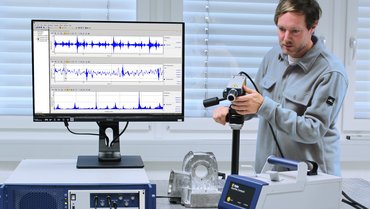

![光学振動センサ（レーザドップラ振動計）による共振試験と音響共振解析]( "光学振動センサ（レーザドップラ振動計）による共振試験と音響共振解析")
