Measuring dynamic response and topography of MEMS and microstructures

Surface topography and dynamic motion analysis and visualization are key to testing and developing microstructures such as MEMS devices (Micro-Electro-Mechanical Systems). They are indispensable for validating FE calculations, determining cross-talk effects and measuring surface deformation. The MSA-600 Micro System Analyzer is the all-in-one optical measurement workstation for characterizing surface topography as well as in-plane and out-of-plane motions.

The versions MSA-600-M/V cover frequency ranges up to 25 MHz, ideally suited for MEMS, MEMS microphones and other microsystems. The versions MSA-600-X/U cover the high and very high frequency range up to 2.5 GHz, perfect for the assessment of HF MEMS resonators, micro-acoustic devices like SAW, BAW and more.

PREMIERE:
The MSA-600-S is the specialized optical measurement workstation designed for 6 GHz real-time vibration analysis and surface topography analysis. Ideal for testing GHz MEMS like FBAR (film bulk acoustic resonators), BAW (bulk acoustic wave) filters and SAW (surface acoustic wave) devices.

Highlights

  • All-in-one optical measurement workstation for microstructures

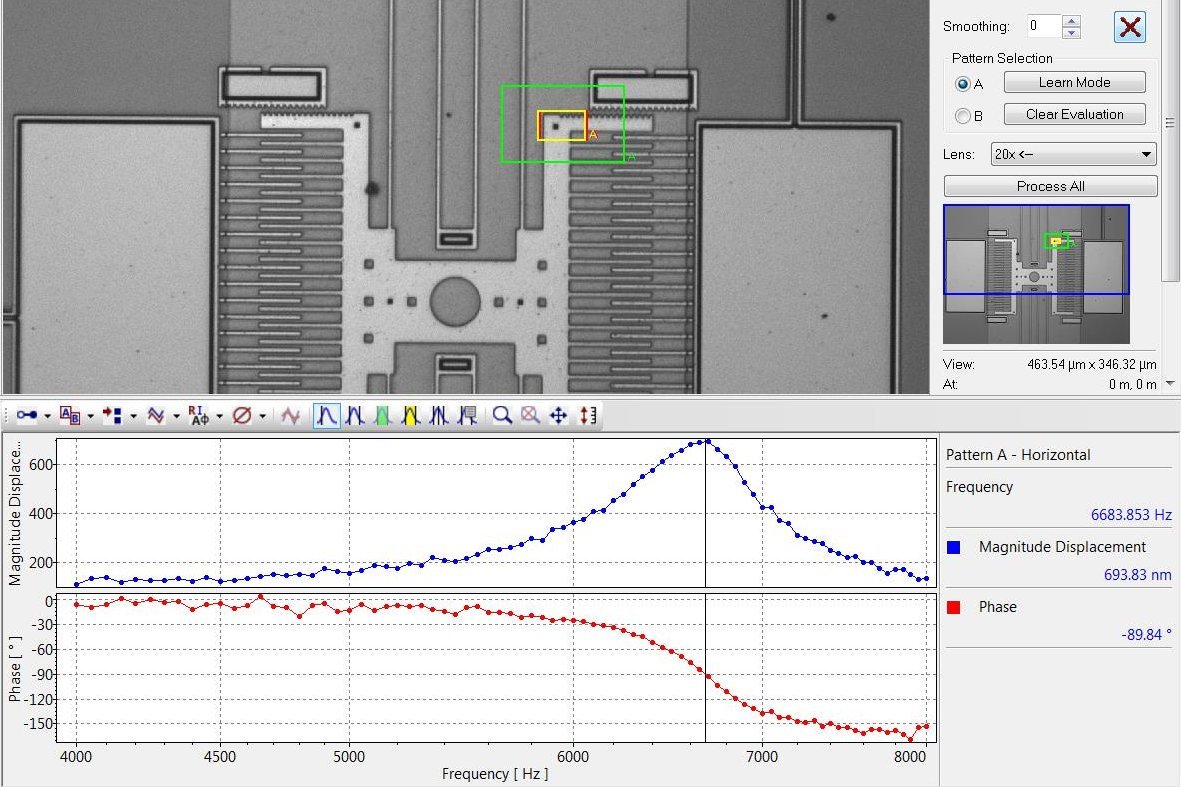

  • Real-time response measurement (no post-processing required)
  • Versions MSA-600-M/V with up to 25 MHz
  • Versions MSA-600-X/U with up to 2.5 GHz
  • NEW MSA-600-S with up to 6 GHz
  • Unparalleled sub-pm displacement resolution

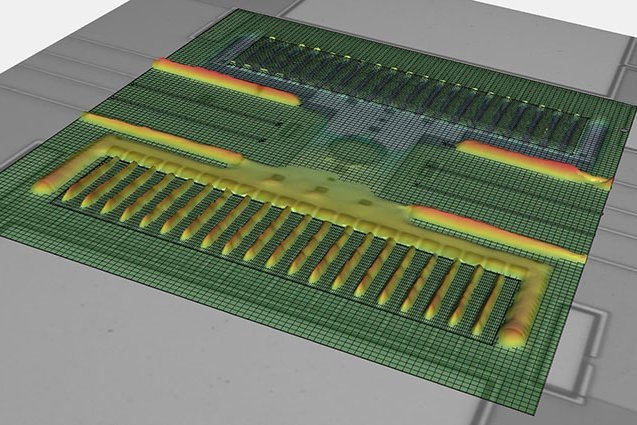

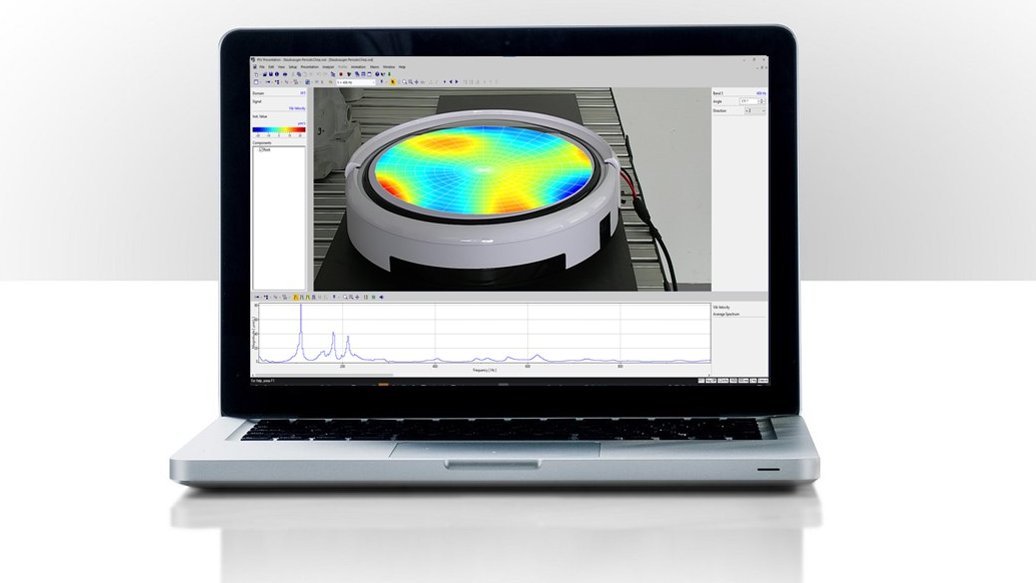

  • Fast measurement and visualization of deflection shapes
  • Straightforward and intuitive operation
  • Automated system for easy integration into probe stations
  • Import / export options for FE model validation

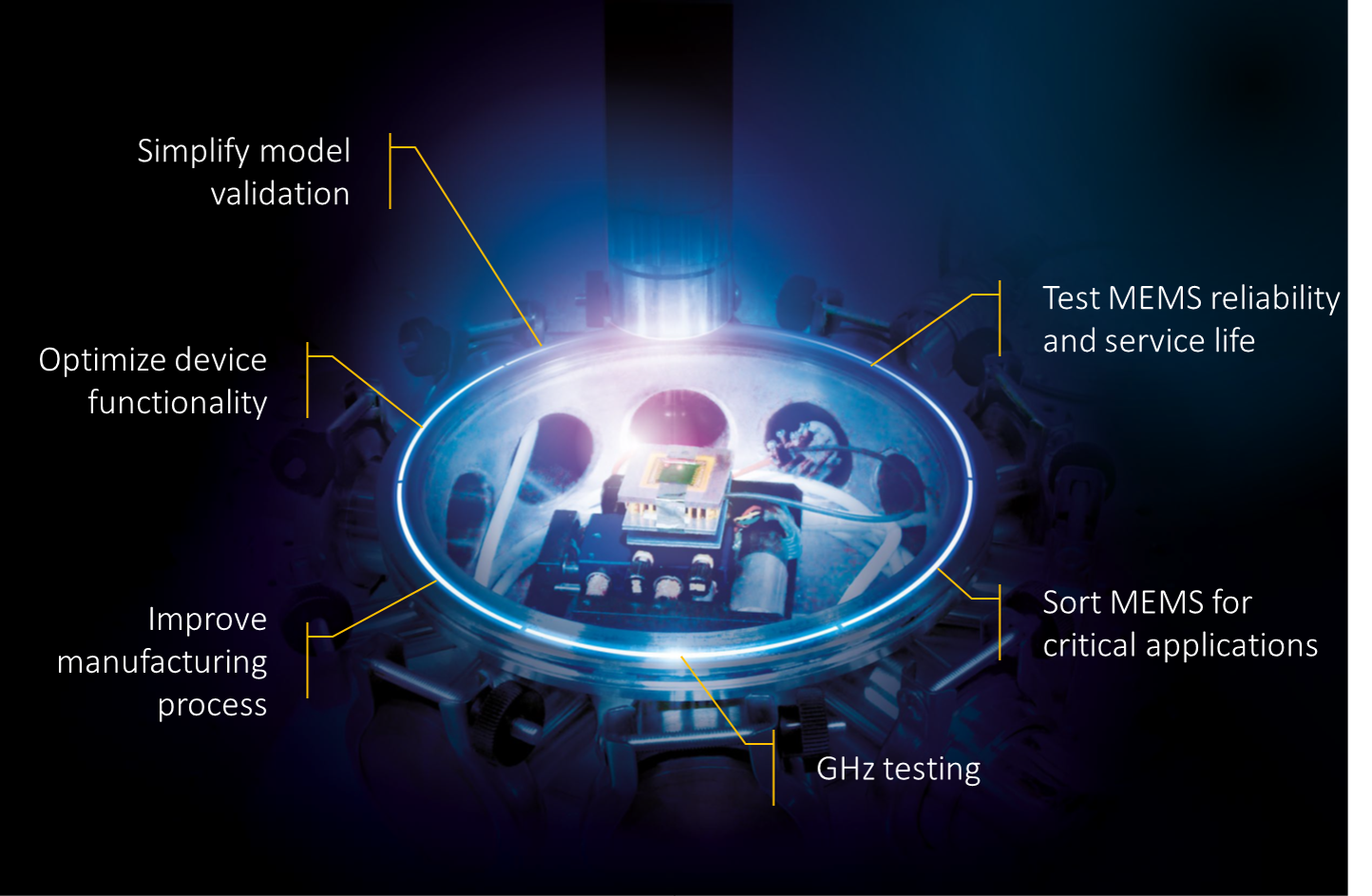

All-in-one optical measurement solution for MEMS

The MSA-600 Micro System Analyzer delivers increased measurement flexibility and precision, adapting to the needs of today’s and tomorrow’s microstructures. The Micro System Analyzer provides precise 3D dynamic and static response data that increases device performance while reducing development and manufacturing costs. Thus it enhances and shortens design cycles, simplifies trouble shooting and improves yield.

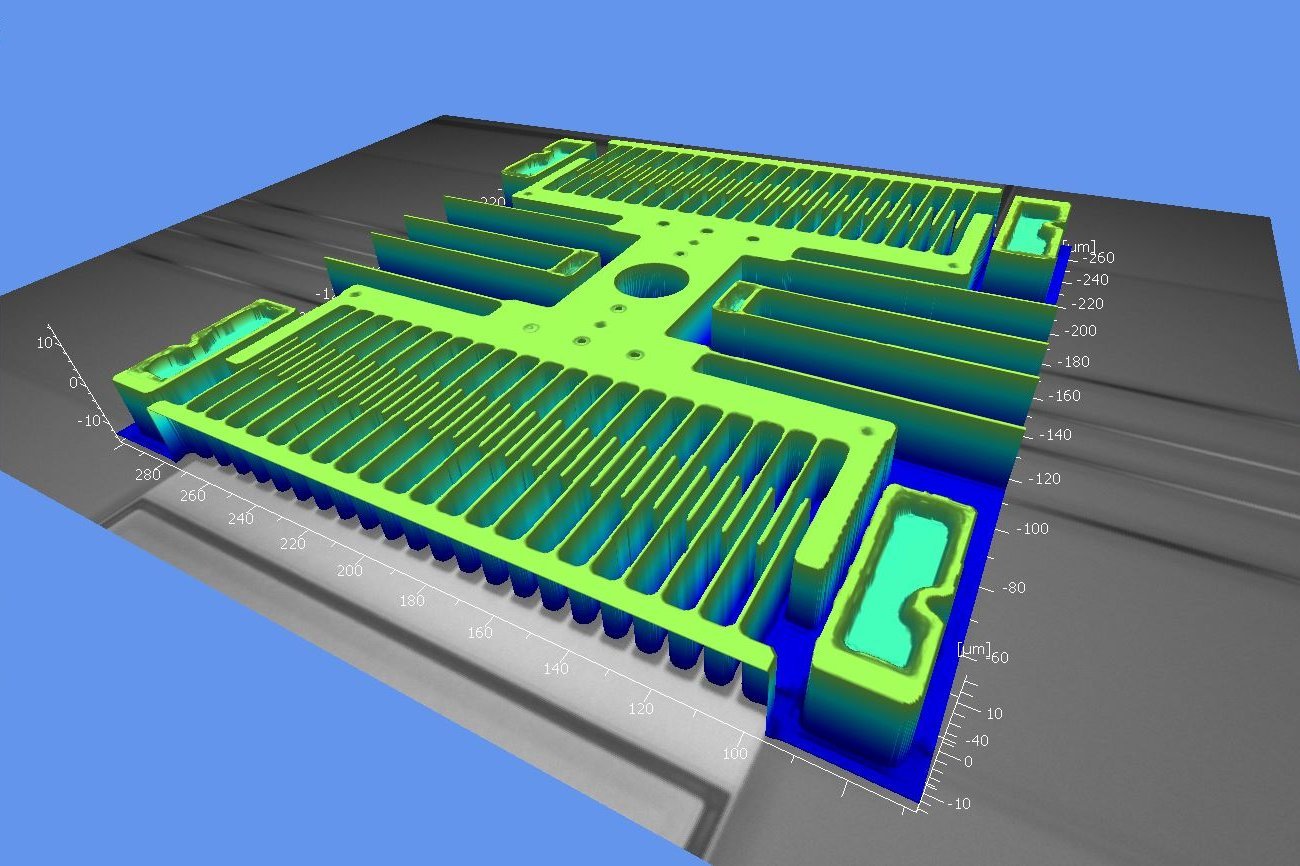

The high-performance laser Doppler vibrometer delivers fast, real-time response measurement with sub-pm displacement resolution. And the white-light interferometer option provides millions of 3D surface data in seconds. Complemented by its straightforward operation and intuitive user interface, the MSA-600 is the powerful optical measurement solution in research, development (R&D) and quality control (QC). Compatible with common probe stations, the micro system analyzer helps you in all stages of development – from MEMS prototyping to testing and troubleshooting – and thus helps you to cut production costs and also shorten the time to market.

Specialized 6 GHz testing solution for GHz MEMS

The MSA-600-S is the premiere specialized optical measurement workstation allowing vibration analysis and surface characterization up to 6 GHz! Use the MSA-600-S for developing GHz devices, for quality control on behalf of form parameter evaluation, and device performance and reliability testing. This enables testing of high frequency devices such as FBAR (film bulk acoustic resonators), and other GHz resonators and devices.

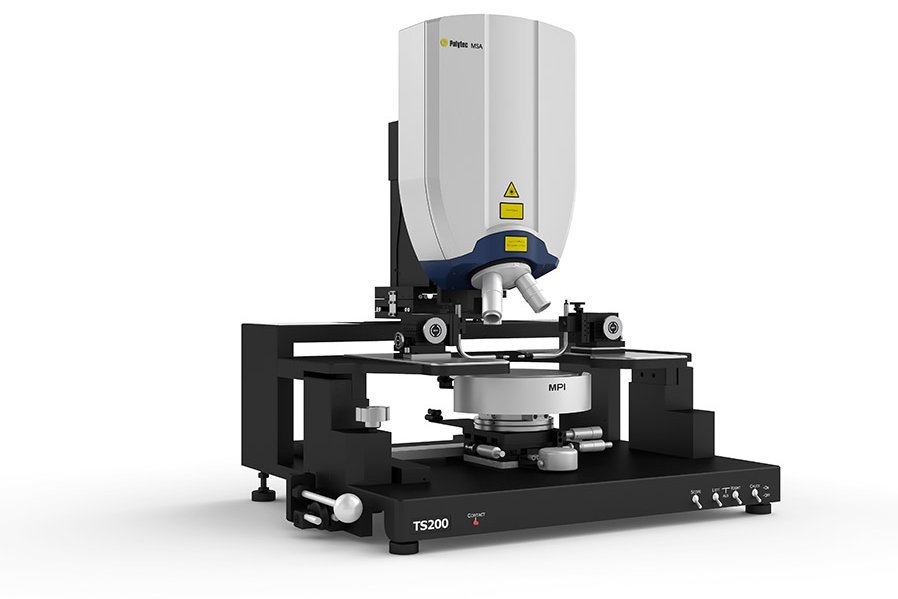

Wafer-level and single-die testing

Accessories and components

Optical accessories

Bright field objectives for Polytec Micro System Analyzers
Bright field objectives for Polytec Micro System Analyzers

A-MOB-xxxx Bright Field Objectives

For out-of-plane and in-plane vibration measurement. Available magnifications: 1x, 2x, 5x, 10x, 20x, 50x, 100x and 3.6x, 10x for large working distances.

Tripods, test stands, positioning stages

Portal stand for MSA Micro System Analyzer and TopMap 3D surface profiler
Portal stand for MSA Micro System Analyzer and TopMap 3D surface profiler

A-STD-TST-01 Test Stand

Test stand providing ample workspace. With motorized z-axis, travel range 200 mm.

A-STD-BAS-02 Base Stand

Rigid support for the sensor head. Includes manual focus block with 100 mm travel range with coarse and fine drive. Interfaces to commercially available optical tables.

Focus block for microscopic observations and measurements of MEMS with a MSA Micro System Analyzer from Polytec
Focus block for microscopic observations and measurements of MEMS with a MSA Micro System Analyzer from Polytec

A-STD-F50 Focus Block

Travel range 50 mm. With coarse and fine drive for manual z-axis adjustment of the sensor head. Interfaces with commercially available wafer probe stations.

Vibration isolation, breadboards

Active vibration isolation table
Active vibration isolation table

A-TAB-AIR-01 Active Vibration Isolation Table

Air-damped vibration isolation table with active level adjustment. Compatibility: A-STD-TST-01 Test Stand, A-STD-BAS-02 Base Stand.

Active electronically controlled vibration isolation table
Active electronically controlled vibration isolation table

A-TAB-ELC-01 Active Vibration Isolation Table

Electronically controlled voice coil stabilization for highest isolation performance. Compatibility: A-STD-TST-01 Test Stand, A-STD-BAS-02 Base Stand.

Breadboard for optical testing of MEMS and microstructures with MSA Micro System Analyzers from Polytec
Breadboard for optical testing of MEMS and microstructures with MSA Micro System Analyzers from Polytec

A-BBO-ME02 Breadboard

Breadboard with metric hole pattern. Footprint 900 mm x 600 mm. Compatibility: A-STD-BAS-02 Base Stand.

Breadboard for optical MEMS testing with a MSA Micro System Analyzer from Polytec
Breadboard for optical MEMS testing with a MSA Micro System Analyzer from Polytec

A-AVI-MELA Active Vibration Isolation Breadboard

Electronically controlled for highest vibration isolation performance. With metric hole pattern. Footprint 600 x 800 mm. Compatibility: A-STD-BAS-02 Base Stand.

Miscellaneous

Signal generator for microstructure analysis with Polytec MSA Micro System Analyzers
Signal generator for microstructure analysis with Polytec MSA Micro System Analyzers

A-ESG-001 External Signal Generator

For high frequency, broadband sample excitation. Remotely controllable by PSV Software.

Probe station for wafer level testing of MEMS and microstructures with a Polytec MSA Micro System Analyzer
Probe station for wafer level testing of MEMS and microstructures with a Polytec MSA Micro System Analyzer

A-SPK-0008 Wafer Prober Module

Together with the A-PST-200P XY Positioning Stage, the wafer prober module forms a motorized platform for electrical contacting and high-precision measurement of wafers and substrates up to 200 mm in diameter.

Vacuum chamber for microstructure analysis with Polytec MSA Micro System Analyzers
Vacuum chamber for microstructure analysis with Polytec MSA Micro System Analyzers

A-SPK-0010 Vacuum Prober Module

Vacuum and purge lines. Micro manipulator for handling of four electrical probes.
