Surface metrology for quantum hardware — from qubit chip to cryostat
From the qubit chip to the cryostat, every stage puts different demands on surface quality. Here are the surface-critical challenges — what to measure at each, and which profiler handles it.
Flatness
- Capacitor pad
- Ion trap electrodes
- Wafer bonding
- Cold temp measurement
Form & step height
Qubit bonding
Planarity - electrodes, qubit
Package to chip
Bump compensable uniformity
Bond collapse
Chip gap uniformity
Wafer flatness & bow
Interposer flatness and gap
Roughness
Substrate roughness
Two-level system defects
Anomalous heating & roughness
Etch depths
Challenges in quantum computing
and how surface metrology can help
Surface quality limits quantum hardware in different ways. For example parasitic two-level systems, scattering at etched sidewalls, bond-height variation, wafer bow and poor thermal contact. Expand each entry to see which parameters matter and how they are measured.
Surface losses on the qubit chip
In superconducting quantum processors, a large share of energy loss originates at material interfaces: the native oxides and microscopic defects at metal–air, metal–substrate and substrate–air boundaries act as parasitic two-level systems that drain qubit coherence.
In superconducting quantum processors, a large share of energy loss originates at material interfaces: the native oxides and microscopic defects at metal–air, metal–substrate and substrate–air boundaries act as parasitic two-level systems that drain qubit coherence. Surface roughness amplifies the problem—more effective surface area means more oxide, more defect sites, more loss. Ion traps face a related issue: motional heating of trapped ions scales strongly with electrode surface condition.
Areal roughness (Sa, Sq) of substrates and deposited superconducting films at sub-nanometer level; verification after etching, cleaning or passivation steps; roughness of trap electrode surfaces.
a micro profiler such as the TopMap Micro.View, which resolves sub-nm roughness without touching the delicate surface.
Structured features—trenches, waveguides, electrodes
Quantum devices are full of small, functional 3D structures: etched trenches in coplanar waveguide circuits, photonic waveguides where sidewall and surface roughness directly set scattering losses, microfabricated trap electrodes with critical edge and step geometries.
Quantum devices are full of small, functional 3D structures: etched trenches in coplanar waveguide circuits, photonic waveguides where sidewall and surface roughness directly set scattering losses, microfabricated trap electrodes with critical edge and step geometries. Here, the questions are dimensional: Is the etch depth on target? Is the step height uniform? Are edges clean?
Step height and etch depth verification, edge quality, local flatness of functional areas, roughness inside structured regions—ideally full-field, so uniformity across the structure is visible at a glance.
TopMap Micro.View—areal measurement captures the whole structure in one dataset, which can be re-analyzed later without re-measuring the part.
3D integration—bump bonds and chip stacking
Scaling beyond a few hundred qubits pushes processor architectures into the third dimension: qubit chips are flip-chip bonded to wiring or interposer chips via indium bump arrays, with chip-to-chip gaps of only a few micrometers.
Scaling beyond a few hundred qubits pushes processor architectures into the third dimension: qubit chips are flip-chip bonded to wiring or interposer chips via indium bump arrays, with chip-to-chip gaps of only a few micrometers. Gap variation across the die shifts qubit frequencies and coupling strengths—so bump height uniformity and chip flatness before bonding decide device yield.
Bump coplanarity across the full array, chip bow and warp, flatness of bonding areas, parallelism verification.
TopMap Micro.View with the additional 0.6x wide-field objective—extending the field of view to capture full bump arrays and small dies in a single measurement.
Form and flatness at chip and wafer level
Underneath the nanoscale physics sits a classic precision-engineering task: substrates, carriers and interposers must be flat.
Underneath the nanoscale physics sits a classic precision-engineering task: substrates, carriers and interposers must be flat. Wafer bow, total thickness variation and warp propagate into every subsequent process step—from lithography focus to bonding gaps.
Flatness, waviness, bow and TTV over large areas; parallelism of mating parts; form deviation of machined carriers and packages.

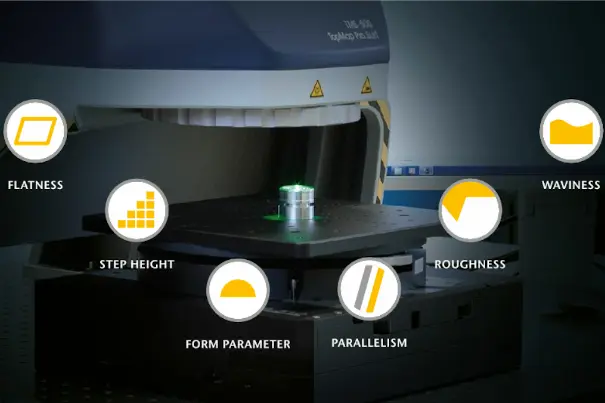

a macro profiler such as the TopMap Pro.Surf—its telecentric optics measure large areas with uniform accuracy across the full field.
The cryogenic periphery
Often overlooked: quantum processors operate inside dilution refrigerators at millikelvin temperatures, where thermal contact between mating surfaces is everything.
Often overlooked: quantum processors operate inside dilution refrigerators at millikelvin temperatures, where thermal contact between mating surfaces is everything. Thermal boundary resistance depends directly on the flatness and roughness of cold-stage interfaces, and vacuum integrity depends on sealing surface quality. A leaking flange or a poorly seated thermal joint costs days of cooldown time.
Flatness and roughness of thermal contact surfaces, sealing and flange faces, machined cryostat components—typically larger metal parts where fast, full-field inspection beats tactile spot checks.
TopMap Pro.Surf, designed for exactly this class of functional surfaces on machined parts.
Elige con confianza el perfilómetro de superficies adecuado: aprovecha las ventajas de nuestro enfoque «Try before buy ».
From macro to micro profiler for your quantum computing requirements
Quantum devices are fragile, expensive and often one-of-a-kind. Non-contact optical profiling measures without any risk of scratching a film or deforming a bump—and because every measurement captures a complete areal dataset, results can be re-analyzed with new parameters at any time, without access to the original part. For teams moving from research into small-series production, that combination of speed, gentleness and traceability is usually the deciding factor.
Not sure which configuration fits your parts? The most reliable answer comes from measuring your own samples—talk to us about a demo measurement or a rental system to test under real conditions.
Micro Profiler
Micro.View es una familia de perfilómetros ópticos optimizados para mediciones con resolución subnanométrica. Gracias a su óptica de enfoque y su alta resolución vertical, permiten un análisis detallado de microestructuras, acabado de superficies y distribución del material, donde incluso las desviaciones más pequeñas importan.
Macro Profiler
Pro.Surf comprueba la planitud, la altura de escalón y el paralelismo en piezas de gran tamaño y bandejas con varias piezas, sin contacto y en cuestión de segundos. El sistema óptico telecéntrico, que evita colisiones, mide incluso en orificios, con la repetibilidad que exige la producción.
Medidor de rugosidad
El medidor de rugosidad es nuestro sistema de iniciación Micro.View y la forma más rentable de iniciarse en la medición de la rugosidad de superficie en 3D. Pasa de los parámetros R a los S.
