The non-contact encoder ProSpeed®

Precise speed and length measurements are critical for controlling the production of continuous materials, sheet materials and piece goods. ProSpeed® – the next generation LSV Laser Surface Velocimeters – optimize production processes by providing reliable measurements and increase the output worldwide in the metals, cable and converting industries.

The ProSpeed® LSV-2100 optical sensor determines the direction of motion and standstill conditions with laser precision.

large working distance

flexible depth-of-field

extended velocity range

free warranty

Highlights

  • Reliable measurement of forward and backward motion plus standstill
  • Easy process integration with long stand-off distances up to 3m
  • Outstanding measurement depth-of-field up to 200 mm
  • Transparency thanks to enhanced connectivity (web interface, Ethernet, fieldbus protocols)
  • Multi-user access (3 via Ethernet + 1 serial)
  • Visible laser for easy alignment
  • Robust sensor technology (IP 66, 67)
  • Application-optimized accessories such as thermo-protective housing, air wipe and air amplifier, cooling plate, beam deflection unit and more
Laser Doppler Velocimeter enable process control by reliable cut-to-length, speed and length monitoring
Laser Doppler Velocimeter enable process control by reliable cut-to-length, speed and length monitoring
ProSpeed LSV-2100 laser sensor for industrial length and speed control
ProSpeed LSV-2100 laser sensor for industrial length and speed control
Reliable measurement performance even on red-hot steel or under dusty, dirty conditions
Reliable measurement performance even on red-hot steel or under dusty, dirty conditions
Detect forward, optionally backward motion and standstill conditions
Detect forward, optionally backward motion and standstill conditions

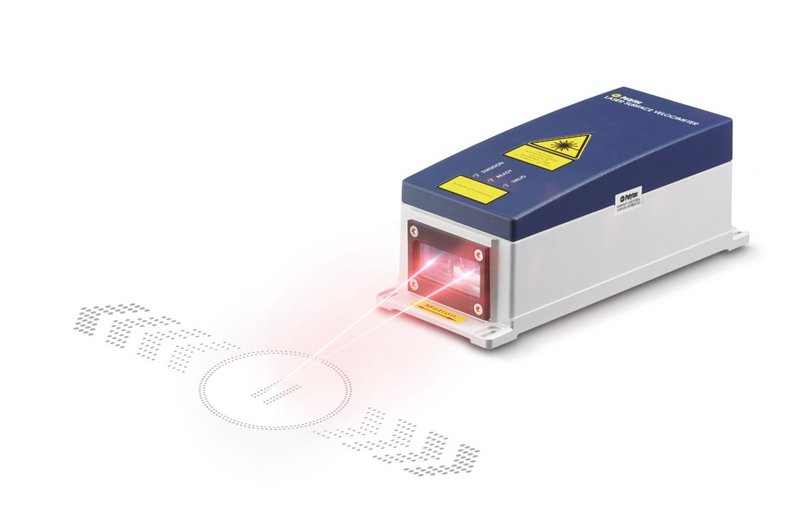

LSV-2100 Laser Surface Velocimeter for process control
LSV-2100 Laser Surface Velocimeter for process control measuring forward and backward motion plus standstill
Polytec LSV laser sensor for stretch reduction in a steel pipe production line
Polytyec LSV laser sensor for stretch reduction in a steel pipe production line
Feed speed and tension control insensitive to out-of-plane motion e.g. on cable, wire or fabrics
Feed speed and tension control insensitive to out-of-plane motion e.g. on cable, wire or fabrics
Laser Doppler Velocimeter enable process control by reliable cut-to-length, speed and length monitoring
Laser Doppler Velocimeter enable process control by reliable cut-to-length, speed and length monitoring
ProSpeed LSV-2100 laser sensor for industrial length and speed control
ProSpeed LSV-2100 laser sensor for industrial length and speed control
Reliable measurement performance even on red-hot steel or under dusty, dirty conditions
Reliable measurement performance even on red-hot steel or under dusty, dirty conditions
Detect forward, optionally backward motion and standstill conditions
Detect forward, optionally backward motion and standstill conditions
LSV-2100 Laser Surface Velocimeter for process control
LSV-2100 Laser Surface Velocimeter for process control measuring forward and backward motion plus standstill
Polytec LSV laser sensor for stretch reduction in a steel pipe production line
Polytyec LSV laser sensor for stretch reduction in a steel pipe production line
Feed speed and tension control insensitive to out-of-plane motion e.g. on cable, wire or fabrics
Feed speed and tension control insensitive to out-of-plane motion e.g. on cable, wire or fabrics

Achieve far more in your production process

ProSpeed® LSV-2100 optical sensors measure length and speed reliably even under harsh production conditions with large working distances up to 3 m. Due to the non-contact measurement principle, these laser sensors eliminate common problems of traditional contact-wheel measurement methods such as damage to delicate surfaces, slippage and thermal expansion and work on almost any surface.

The TPH thermo-protective housing offers additional protection especially for really challenging environments. Application-optimized accessories such as air wipe and air amplifier, cooling plate, beam deflection unit and more enable customized sensor solutions with easy in-line integration.

Enhanced connectivity and interface concept of ProSpeed® LSV optical length and speed sensors
Enhanced connectivity and interface concept of ProSpeed® LSV optical length and speed sensors

Sensor integration with enhanced connectivity

The enhanced connectivity concept of the ProSpeed® LSV sensor generation grants access to configuration and process data anywhere and anytime. Enhance your flexibility, enabling direct feedback to machines on behalf of monitoring data through an optional touch display. Parametrize the sensor via web interface with ease and benefit from data access with Ethernet and serial interface for up to four users. For automated PLC-controlled processes, use the integrated PROFINET and EtherNet/IP interfaces which makes sensor integration into any production control systems as smoot and easy.

Length and speed measurement in steel, aluminum and metals production with ProSpeed laser sensors
