Non-contact measurement of rotational vibrations

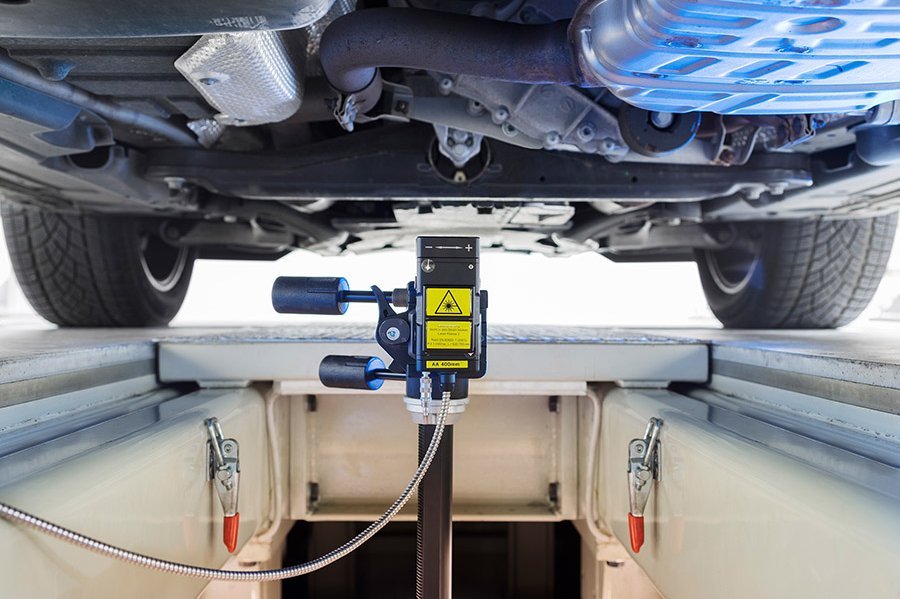

With the Polytec RLV-5500 Rotational Vibrometer, you can conduct non-contact measurements of the angular velocity and angular displacement of rotational vibrations on any shape of rotating structure. The RLV-5500 helps you to precisely analyze the rotational dynamics of drivetrains, gas turbines, electrical generators, printers and copiers, and thus enables you to develop products efficiently, and perform troubleshooting operations quickly. The process is precise, contactless and therefore requires no additional masses or mechanical intervention in the drive.

Highlights

  • Precise, non-contact measurement of the rotational speed, changes to angular velocity, changes to the angle of rotation
  • Fast set-up and alignment
  • High resolution in a wide speed range (up to 20,000 rpm at a bandwidth of 10 kHz)
  • High S/N ratio due to digital demodulation and filtering
  • Integrated air purge system cools and protects the lens
  • Compact sensor with IP67 protection class

Rotational speed, angular velocity and angle of rotation

The RLV-5500 Rotational Vibrometer’s powerful digital decoders guarantee an excellent signal-to-noise ratio and high-resolution measurement results. The extremely compact sensor allows you to perform measurements even in places where space is tight. For applications carried out in a harsh industrial environment, the sensor head is equipped with an integral air purge system that keeps the lens free from oil mist and dust.

Perform non-contact and reliable measurements…

  • Rotational speed, changes to angular velocity, changes to the angle of rotation
  • At speed ranges of up to 20,000 rpm at a bandwidth of 10 kHz
  • On hard-to-access areas with a 90° deflection unit
  • In harsh environments thanks to the IP67 protection class

Related areas of applications

Accessories and components

Optical accessories

Icon accessory
Icon accessory

RLV-A-530 90° Deflection Unit

Provides 90° deflection of the two laser beamsfor measurements at positions difficult to reach.

Vibrometer accessory - set of mirrors for customized vibrometer test setups
Vibrometer accessory - set of mirrors for customized vibrometer test setups

A-MIR-xxxx Mirror Sets

Polytec's mirror sets contain different sizes of mirrors to assist in the set-up of your measurement.

Tripods, test stands, positioning stages

Vibrometer accessory tilt stage
Vibrometer accessory tilt stage

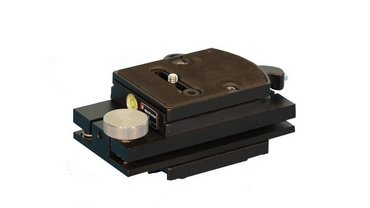

VIB-A-P01 Tripod Mountable Tilt Stage

Vibrometer accessory 2-axis stage plus tilt function
Vibrometer accessory 2-axis stage plus tilt function

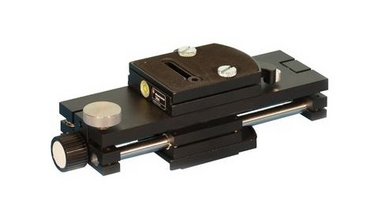

VIB-A-P02 Tripod Mountable Traverse/Tilt Stage

Vibrometer accessory positioning stage
Vibrometer accessory positioning stage

VIB-A-P06 Tripod Mountable X/Y/Tilt Stage

VIB-A-T02 Tripod with Pan/Tilt Head

VIB-A-T05 Tripod with Geared Pan/Tilt Head

Vibrometer accessory counter-balanced arm
Vibrometer accessory counter-balanced arm

A-CBA-A003 Tripod Mountable Counter Balance Arm

Horizontal counterbalanced arm for use with VIB-A-T0x tripods. Allows mounting of the sensor head off the center of the tripod

Flexible arm with magnetic base
Flexible arm with magnetic base

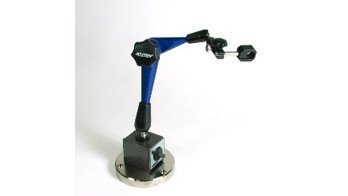

VIB-A-T39 Flexible Arm with Magnetic Base

Icon accessory
Icon accessory

A-PTT-9015 Motorized Pan/Tilt Head

Battery-operated positioner with hand-held control panel.

Icon accessory
Icon accessory

A-PTT-C015 Extension Cable

For A-PTT-9015 hand-held control panel. Cable length: 15 m.

Miscellaneous

Icon accessory
Icon accessory

RLV-A-540 Air Purge Adapter

Air nozzle for improved protection against oil and dust.

Icon accessory
Icon accessory

A-RET-xxxx Retro-Reflective Supplies

Selection of sprays, tape, sheets and micro glass beads for improvement of signal to noise ratio when measuring uncooperative surfaces.

Vibrometer accessory transportation case for RLV Rotational Laser Vibrometer
Vibrometer accessory transportation case for RLV Rotational Laser Vibrometer

RLV-A-500 Transportation Case

Heavy duty transportation and storage case for the RLV-500 sensor head / laser unit.

Vibrometer accessory heavy-duty transportation case for RLV Rotational Laser Vibrometer
Vibrometer accessory heavy-duty transportation case for RLV Rotational Laser Vibrometer

VIB-A-CAS02 Transportation Case

Heavy-duty transportation and storage case.
