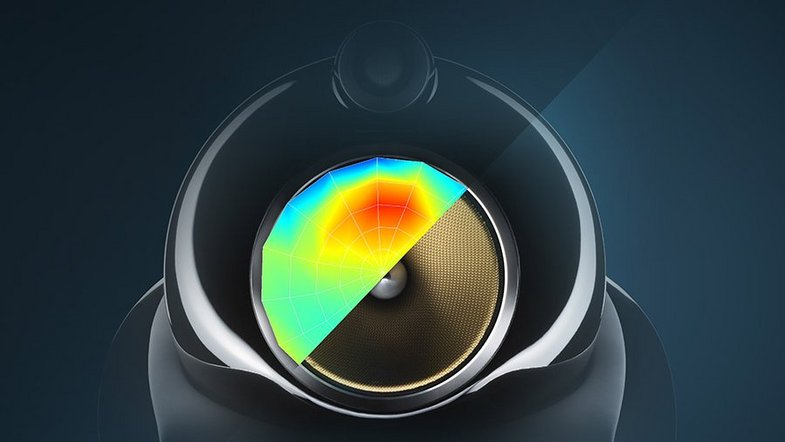

Acoustic optimization of loudspeakers
Sound quality is the focus of any loudspeaker development operation – and the membrane’s properties are crucially important in this regard. With their linear frequency response that extends far beyond the audible range, Scanning Vibrometers are hugely beneficial in loudspeaker design. Non-contact measurements guarantee undistorted measurement data across the entire frequency range, thereby enabling clear interpretation of the results of sound pressure level (SPL) measurements and hearing tests. Polytec’s measuring technology offers you unique ways of analyzing dynamic loudspeaker characteristics, whereby you can also include the interaction with the surrounding components. Scanning Vibrometers from Polytec - collecting areal 3D measurement data of entire loudspeaker panels - have proven their worth with all major loudspeaker manufacturers.
Development tools for musical instruments
Musical instruments generate wonderful, inspiring sounds through their vibrations. For many years now, Polytec laser vibrometers have been helping to describe and shed light on this phenomenon during development and sound engineering. Vibrometers help in the acoustic optimization of violins, harpsichords, guitars, pipe organs or even steelpans. Understanding the vibrational character and resonances of musical instruments is key for optimizing and shaping the instruments very own character. Even “secret sounds” can be unveiled through testing with this measuring technology.
Related products

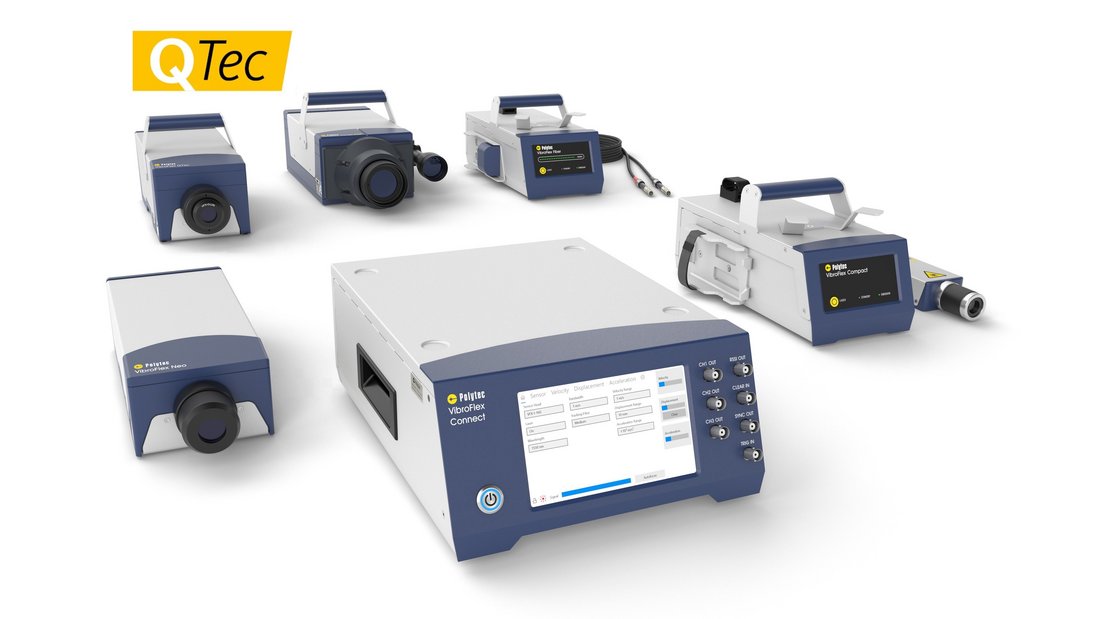

VibroFlex
With the modular laser vibrometer VibroFlex, Polytec presents the superior flexibility in optical vibration measurement with a modular sensor solution up to 24 MHz that adapts to your needs: Add microscope objectives for observing tiny structures or measure large samples like machinery or motors from a safe distance. Discover acoustics and vibration phenomena in research and product development for a faster time-to-market or use it for reliable in-line inspections. Learn about how the patented multi-path interferometry QTec® provides an always stable signal level, 20 dB better SNR for faster and clearer results without post-processing.
PSV-500-3D Scanning Vibrometer
The PSV-500-3D Scanning Vibrometer measures 3D dynamics in research and product development in a reliable and precise way. Its visible HeNe laser provides outstanding SNR on well-reflecting sample surfaces and is ideal for small samples and under water. The deflection shapes and Eigenmodes detected help you with everything from NVH, acoustic and structurally dynamic issues to ultrasonic analyses, FEM validation and non-destructive testing from DC to 25 MHz.
VibroOne
The laser Doppler vibrometer VibroOne® is the one-box solution for non-contact vibration measurement up to 3 MHz. It is specifically designed for tightly packed setups, whether in research laboratories, challenging production environments or for non-contact analysis of tiny details on microstructures or biomedical probes. The optional inline HD+ camera helps positioning the laser precisely and provides proper test documentation.
Further applications in acoustics and ultrasonics
- Medical ultrasonic devices
![Ultrasound device testing with vibrometers]( "Ultrasound device testing with vibrometers")
Ultrasound device testing with vibrometers - Ultrasonic imaging
![Ultrasonic transducer deflection shape measurement]( "Ultrasonic transducer deflection shape measurement")
Ultrasonic transducer deflection shape measurement - Industrial ultrasonic methods
![Deflection shape of sonotrode for ultrasonic welding]( "Deflection shape of sonotrode for ultrasonic welding")
Deflection shape of sonotrode for ultrasonic welding - Ultrasonic actuators
Acoustics measurement, analyzing deflection shapes of an ultrasonic actuator
